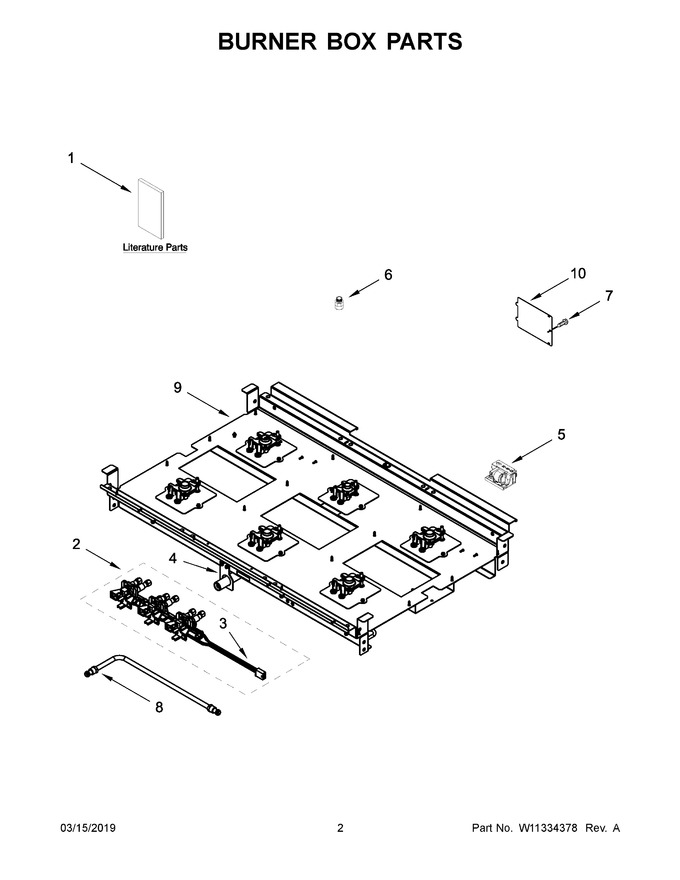

02 - Burner Box Parts


03 - Cooktop, Burner And Grate Parts


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11114330		Guide, Use And Care		Appelez-nous	-
2	W11334707		Assembly, Valve Manifold (left Front, Left Rear, Center Rear)   (Replaces: W10893052)				$ 507.38
3	W11328263		Switch, Harness   (Replaces: W11106302)				$ 342.89
4	W11320153		Bracket, Manifold   (Replaces: W11121194)				$ 79.97
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	4453116		Adapter, Male				$ 179.43
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
8	W11333177		Tube, Manifold Supply (left)   (Replaces: W10892370)		Appelez-nous	-
9	N/P		Box, Burner (not Serviced)		Appelez-nous	-
10	W10115843		Cover, Ignition		Appelez-nous	-
1A	W11114333		Instructions, Installation		Appelez-nous	-
1B	W11184746		Guide, Internet Connectivity		Appelez-nous	-
1C	W11266585		Diagram, Wiring (cooktop)		Appelez-nous	-
1D	W11202363		Diagram, Wiring (oven)		Appelez-nous	-
1E	W11202265		Sheet, Tech		Appelez-nous	-
2A	W11334710		Assembly, Valve Manifold (center Front, Right Front, Right Rear)   (Replaces: W10893059)				$ 543.65
8A	W11334162		Tube, Manifold Supply (right)   (Replaces: W10892417)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11200320		Harness, Main (36")				$ 242.72
NI	W11200332		Harness, Cooktop				$ 195.65
NI	W10780278		Harness, Door Lock			Immediately	$ 95.87
NI	W11200325		Harness, Communication				$ 116.19
NI	W11317791		Harness, Wifi   (Replaces: W11242785)				$ 113.72
NI	W11321066		Cord, Power   (Replaces: W11212216)				$ 118.94
NI	WP9759877		Retainer, Strain Relief   (Replaces: 9759877)				$ 20.21
NI	4450800		Screw, Grounding				$ 13.47
NI	9757778		Bushing, Snap Split				$ 97.63
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 59.88
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 47.84
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
