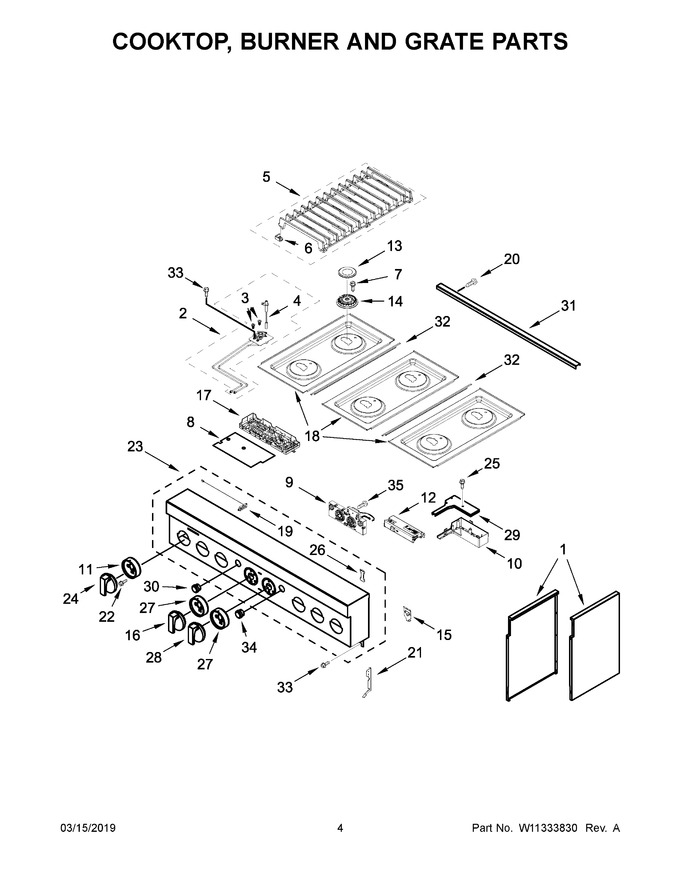

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11333179 | Panel, Cabinet Side (left) (Replaces: W11106881) |
|
$ 419.69 | |||||
| 2 | W11333305 | Assembly, Orifice Holder (left Front) (Replaces: W10892793) |
|
$ 125.39 | |||||
| 3 | W11643164 | Orifice, Main (17.4k) (left Front, Right Front) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11573760 | Igniter (left Front, Left Rear, Right Front, Right Rear) (Replaces: W11238757) |
|
Immediately | $ 23.48 | ||||
| 5 | W11516449 | Assembly, Grate (black (left)) (Replaces: W11172289) |
|
$ 265.06 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 7 | W11447718 | Screw (Replaces: W11196257) |
|
Immediately | $ 14.74 | ||||
| 8 | W11320149 | Barrier, Appliance Manager (Replaces: W11281269) |
|
$ 130.57 | |||||
| 9 | W11333311 | Interface, User (Replaces: W11292566) |
|
Immediately | $ 573.94 | ||||
| 10 | W11320411 | Cover, Wifi Outer (Replaces: W11205795) |
|
- | |||||
| 11 | W11317889 | Bezel, Cooktop (for 6 Cooktop Burners) (Replaces: W11090284) |
|
$ 106.87 | |||||
| 12 | W11234290 | Assembly, Wifi Module (Replaces: W11110768) |
|
$ 179.89 | |||||
| 13 | W11319224 | Cap, Burner (black (includes 6)) (Replaces: W11121392) |
|
Immediately | $ 252.20 | ||||
| 14 | W11319683 | Spreader, Flame (high) (all Except Center Rear) (Replaces: W10891987) |
|
Immediately | $ 250.69 | ||||
| 15 | W11318207 | Spring Clip, Range (Replaces: W11036559) |
|
$ 12.88 | |||||
| 16 | W11317886 | Knob, Oven Mode (stainless) (Replaces: W10891869) |
|
$ 327.75 | |||||
| 17 | W11334164 | Manager, Appliance (powermax) (Replaces: W11100267) |
|
Immediately | $ 470.45 | ||||
| 18 | W11316700 | Panel, Cooktop (black (left)) (Replaces: W11038237) |
|
$ 502.01 | |||||
| 19 | W11318855 | Antenna, Wifi (Replaces: W11130078) |
|
$ 228.92 | |||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 21 | W10130760 | Bracket, Moving Console (left) |
|
$ 75.94 | |||||
| 22 | W11674763 | Screw (Replaces: W10919387) |
|
$ 14.76 | |||||
| 23 | W11715959 | Panel, Console (Replaces: W11253775) |
|
$ 1,069.60 | |||||
| 24 | W11317537 | Knob, Burner (for 6 Cooktop Burners) (stainless) (Replaces: W10887596) |
|
Immediately | $ 155.66 | ||||
| 25 | W10709795 | Screw (Replaces: 7101P624-60) |
|
$ 13.79 | |||||
| 26 | W11318856 | Assembly, Light Pipe (Replaces: W10896369) |
|
$ 109.35 | |||||
| 27 | W11317892 | Bezel, Oven (for 2 Oven Knobs) (stainless) (Replaces: W11042375) |
|
$ 110.74 | |||||
| 28 | W11317539 | Knob, Oven Temperature (stainless) (Replaces: W10891868) |
|
$ 154.22 | |||||
| 29 | W11320410 | Cover, Wifi Inner (Replaces: W11205794) |
|
- | |||||
| 30 | W11318857 | Button Assembly, Oven Light (Replaces: W11090651) |
|
$ 23.81 | |||||
| 31 | W11156416 | Trim, Island |
|
$ 249.31 | |||||
| 32 | W10271524 | Trim, T-strip (black) |
|
$ 212.34 | |||||
| 33 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 34 | W11319196 | Button Assembly, Oven Start (Replaces: W11090650) |
|
$ 23.67 | |||||
| 35 | WP3400814 | Screw (Replaces: 3400814) |
|
$ 4.62 | |||||
| 14A | W11319673 | Spreader, Flame (low) (center Rear) (Replaces: W10892022) |
|
Immediately | $ 229.46 | ||||
| 18A | W11316701 | Panel, Cooktop (black (center)) (Replaces: W11038241) |
|
$ 502.01 | |||||
| 18B | W11328008 | Panel, Cooktop (black (right)) (Replaces: W11038254) |
|
$ 475.25 | |||||
| 1A | W11333303 | Panel, Cabinet Side (right) (Replaces: W11106880) |
|
$ 421.41 | |||||
| 21A | W10130759 | Bracket, Moving Console (right) |
|
$ 75.94 | |||||
| 2A | W11333306 | Assembly, Orifice Holder (left Rear) (Replaces: W10892494) |
|
Immediately | $ 127.98 | ||||
| 2B | W11334711 | Assembly, Orifice Holder (center Front) (Replaces: W10892501) |
|
$ 118.15 | |||||
| 2C | W11319740 | Assembly, Orifice Holder (center Rear) (Replaces: W10892810) |
|
$ 122.67 | |||||
| 2D | W11334712 | Assembly, Orifice Holder (right Front) (Replaces: W10892731) |
|
Immediately | $ 71.63 | ||||
| 2E | W11334714 | Assembly, Orifice Holder (right Rear) (Replaces: W10892482) |
|
$ 126.79 | |||||
| 3A | W10892418 | Orifice, Main (15.4k) (left Rear, Center Front, Right Rear) |
|
Immediately | $ 103.03 | ||||
| 3B | W10892440 | Orifice, Main (7.2k) (center Rear) |
|
$ 99.86 | |||||
| 3C | W11661909 | Orifice, Simmer (2.6k) (all Except Center Rear) (Replaces: W10892435) |
|
Immediately | $ 74.14 | ||||
| 3D | W10892429 | Orifice, Simmer (2.0k) (center Rear) |
|
$ 99.86 | |||||
| 4A | W11580024 | Igniter (center Front) (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 4B | W11238756 | Igniter (center Rear) |
|
Immediately | $ 67.96 | ||||
| 5A | W11516481 | Assembly, Grate (black (center)) (Replaces: W11172654) |
|
$ 260.06 | |||||
| 5B | W11516462 | Assembly, Grate (black ((right)) (Replaces: W11172625) |
|
$ 265.07 |
