01 - Cover Sheet

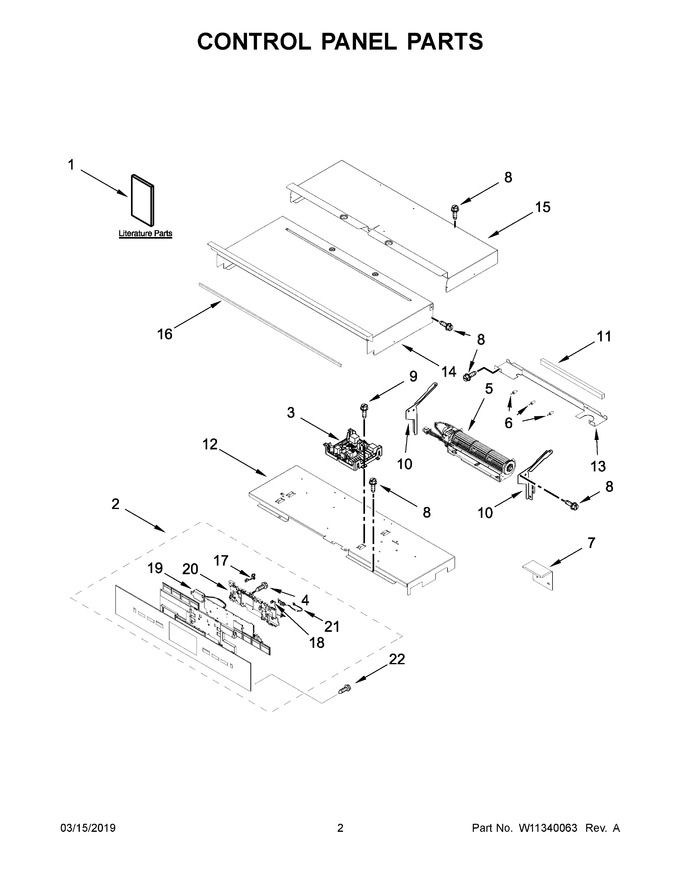

02 - Control Panel Parts


03 - Oven Parts


04 - Upper Oven Door Parts


05 - Lower Oven Door Parts


06 - Internal Oven Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11235343		Guide, Use & Care (oven)		Appelez-nous	-
2	W11451452		Assembly, Control Panel (black)   (Replaces: W11199501)				$ 1,391.36
3	W11448961		Appliance Manager, Copernicus   (Replaces: W11281213)			Immediately	$ 276.57
4	W10489172		Screw				$ 11.98
5	W11248652		Blower   (Replaces: W11200129)			Immediately	$ 241.54
6	W10351295		Bumper				$ 22.12
7	W10810292		Shield, Wifi Access		Appelez-nous	-
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 7.30
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 8.14
12	W10864102		Tray, Electronic				$ 67.13
13	W10655465		Chassis, Back Divider		Appelez-nous	-
14	W10444125		Chassis, Cover Top Front 30		Appelez-nous	-
15	W10904156		Chassis, Cover Top Back 30   (Replaces: W10667383)		Appelez-nous	-
16	W10728475		Gasket, Rubber				$ 38.13
17	W10566973		Harness, Keypad (left To Center)				$ 82.19
18	W10524350		Harness, Keypad (right To Center)				$ 78.21
19	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
20	W10668510		Housing				$ 105.17
21	W10575307		Jumper Harness, Power Supply			Immediately	$ 173.84
22	WP98008545		Screw (black)   (Replaces: 7101P633-60)				$ 18.60
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
1A	W11235620		Instructions, Installation		Appelez-nous	-
1B	W11234441		Guide, Internet Connectivity		Appelez-nous	-
1C	W11235304		Diagram, Wiring		Appelez-nous	-
1D	W11284426		Sheet, Tech		Appelez-nous	-
NI	4450800		Screw, Grounding				$ 13.47
NI	W11537624		Assembly, Antenna & Housing   (Replaces: W11234542)				$ 106.06
NI	W11699910		Harness, Eol   (Replaces: W10562910)			Immediately	$ 32.95
NI	W11219538		Harness, Door Latch				$ 90.67
NI	W11216658		Harness, Signal				$ 144.40
NI	W11216668		Harness, Main				$ 386.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10431304)				$ 12.17
NI	16515		Clip, Harness   (Replaces: 313438)				$ 20.53
NI	W11132988		Strap, Lead Ground		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 21.41
NI	W10655464		Bracket, Harness				$ 40.71
NI	W11229447		Jumper Tod		Appelez-nous	-
NI	WPW10339879		Tie, Cable   (Replaces: 4454842)				$ 8.30
