Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10913628 Track Assembly (left Hand)   (Replaces: W10653357) In-Stock Immediately $ 96.78

2 W11544573 Stop, Track   (Replaces: 8564852) Special Order $ 15.00

3 WPW10309090 Screw   (Replaces: W10309090) In-Stock Immediately $ 76.86

4 W11255733 Rack Assembly, Third Level   (Replaces: W10418350) Special Order $ 165.63

5 W10917018 Basket, Third Level Special Order $ 117.76

1A W10914507 Track Assembly (right Hand)   (Replaces: W10653356) Special Order $ 176.87


    View Diagram in Separate Window     Print Icon   Print Part List

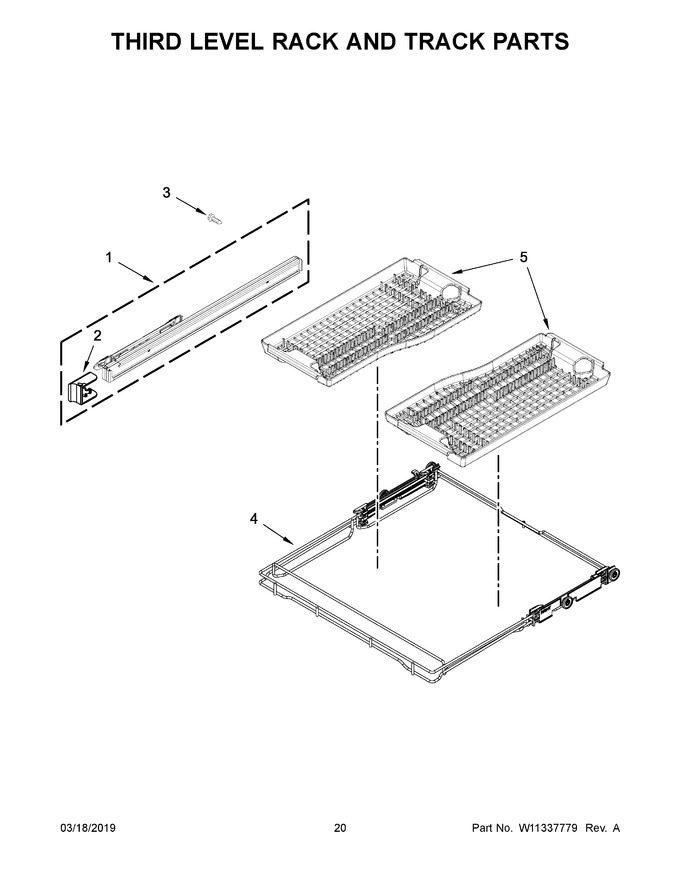

Diagram for MDB8989SHK0
