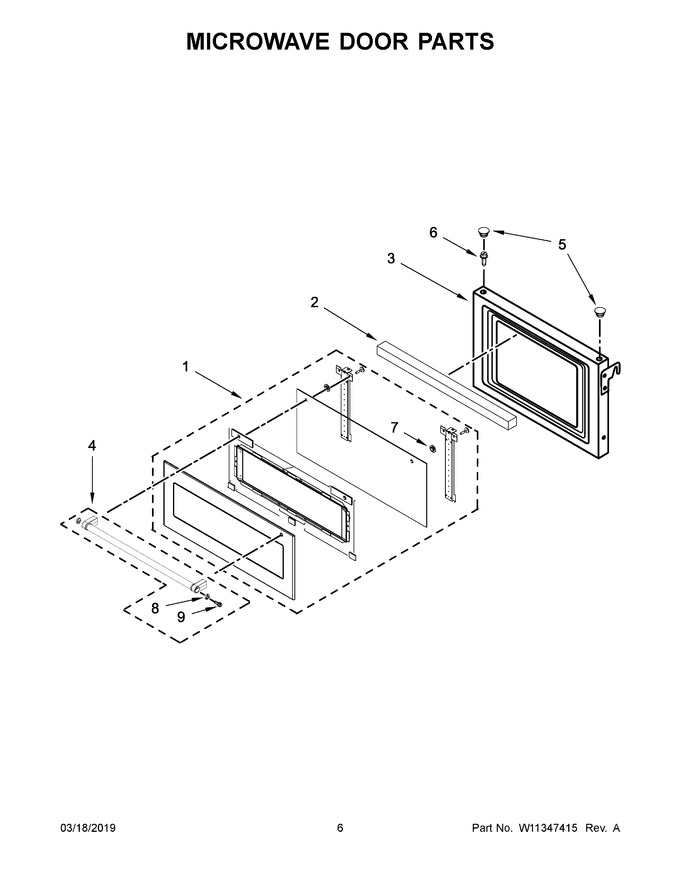

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10783074 | Assembly, Door (black) (Replaces: W10615380) |
|
$ 481.79 | |||||
| 2 | W10359769 | Foam, Door Handle |
|
$ 14.76 | |||||
| 3 | W10737653 | Assembly, Inner Door |
|
$ 411.83 | |||||
| 4 | W11525064 | Assembly, Handle (stainless) (Replaces: W10640874) |
|
$ 238.98 | |||||
| 5 | W11756840 | Cap, Screw (Replaces: 8304588BL) |
|
$ 12.34 | |||||
| 6 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 7 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 8 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 23.14 | ||||
| 9 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 1A | W10783076 | Assembly, Door (white) (Replaces: W10615381) |
|
$ 480.47 | |||||
| 1B | W10783078 | Assembly, Door (stainless) (Replaces: W10615379) |
|
$ 400.52 |
