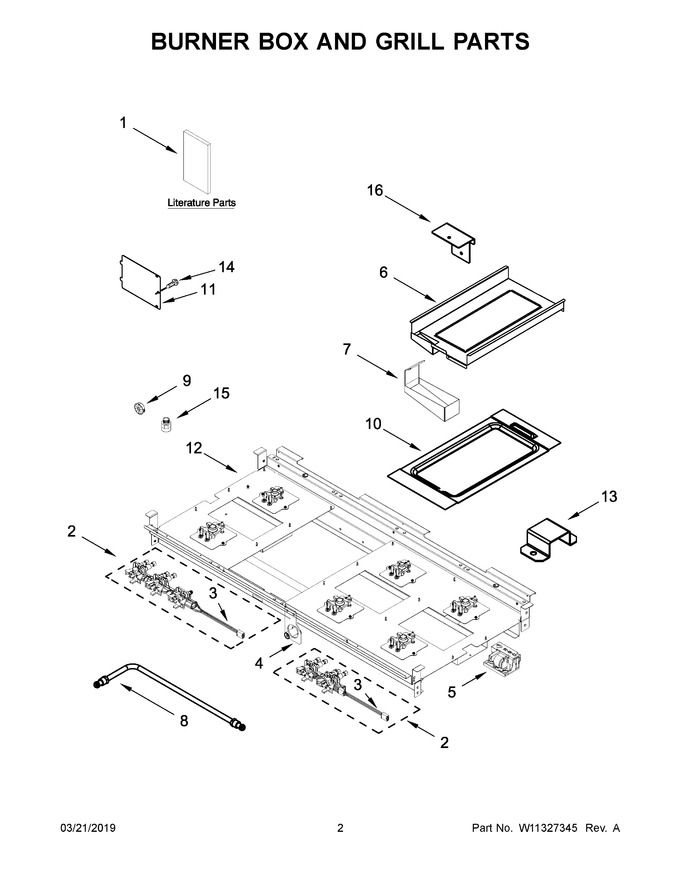

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11114330 | Guide, Use And Care |
|
- | |||||
| 2 | W11328262 | Assembly, Valve Manifold (left Front, Left Rear, And Grill) (Replaces: W10893054) |
|
$ 477.03 | |||||
| 3 | W11328263 | Switch, Harness (left Front, Left Rear, And Grill) (Replaces: W11106302) |
|
$ 342.89 | |||||
| 4 | W11320153 | Bracket, Manifold (Replaces: W11121194) |
|
$ 79.97 | |||||
| 5 | W11818690 | Module, Spark (Replaces: W11121317) |
|
Immediately | $ 81.60 | ||||
| 6 | W11328011 | Capture, Grill Grease (Replaces: W11120957) |
|
- | |||||
| 7 | W11328012 | Tray, Grill Drip (Replaces: W11174414) |
|
- | |||||
| 8 | W11328265 | Tube, Manifold Supply (left) (Replaces: W10892803) |
|
- | |||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 8.00 | |||||
| 10 | W11328372 | Deflector, Grill Heat (Replaces: W11120965) |
|
- | |||||
| 11 | W10115843 | Cover, Ignition |
|
- | |||||
| 12 | N/P | Box, Burner (not Serviced) |
|
- | |||||
| 13 | W11174418 | Bracket, Grill Orifice Holder |
|
- | |||||
| 14 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 15 | 4453116 | Adapter, Male |
|
$ 179.43 | |||||
| 16 | W11285353 | Bracket, Grill Grease Capture |
|
- | |||||
| 1A | W11114333 | Instructions, Installation |
|
- | |||||
| 1B | W11184746 | Guide, Internet Connectivity |
|
- | |||||
| 1C | W11266584 | Diagram, Wiring (cooktop) |
|
- | |||||
| 1D | W11202370 | Diagram, Wiring (oven) |
|
- | |||||
| 1E | W11202265 | Sheet, Tech |
|
- | |||||
| 2A | W11320019 | Assembly, Valve Manifold (right Center Front And Right Center Rear) (Replaces: W10893058) |
|
Immediately | $ 448.95 | ||||
| 2B | W11320017 | Assembly, Valve Manifold Right Front And Right Rear) (Replaces: W11183722) |
|
$ 472.05 | |||||
| 3A | W11320016 | Switch, Harness (right Center Front, Right Center Rear, Right Front, Right Rear) (Replaces: W11106300) |
|
Immediately | $ 270.82 | ||||
| 8A | W11328266 | Tube, Manifold Supply (right Center) (Replaces: W10892801) |
|
- | |||||
| 8B | W11328267 | Tube, Manifold Supply (right) (Replaces: W10892802) |
|
- | |||||
| NI | WP7101P485-60 | Screw, Anti-tip Kit (Replaces: 7101P485-60) |
|
$ 30.72 | |||||
| NI | 9757778 | Bushing, Snap Split |
|
$ 97.63 | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 13.47 | |||||
| NI | WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 20.21 | |||||
| NI | W11321066 | Cord, Power (Replaces: W11212216) |
|
$ 118.94 | |||||
| NI | W11317791 | Harness, Wifi (Replaces: W11242785) |
|
$ 113.72 | |||||
| NI | W11317786 | Harness, Communication (Replaces: W11200318) |
|
Immediately | $ 131.85 | ||||
| NI | W10780278 | Harness, Door Lock |
|
Immediately | $ 95.87 | ||||
| NI | W11200330 | Harness, Cooktop |
|
- | |||||
| NI | W11317789 | Harness, Main (18") (Replaces: W11200311) |
|
$ 248.36 | |||||
| NI | W11297779 | Harness, Main (30") |
|
- | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11428599 | Kit, Lp Conversion (Replaces: W11238041) |
|
Immediately | $ 47.84 | ||||
| NI | W11544575 | Bracket, Anti-tip (Replaces: W10253333) |
|
$ 59.88 |
