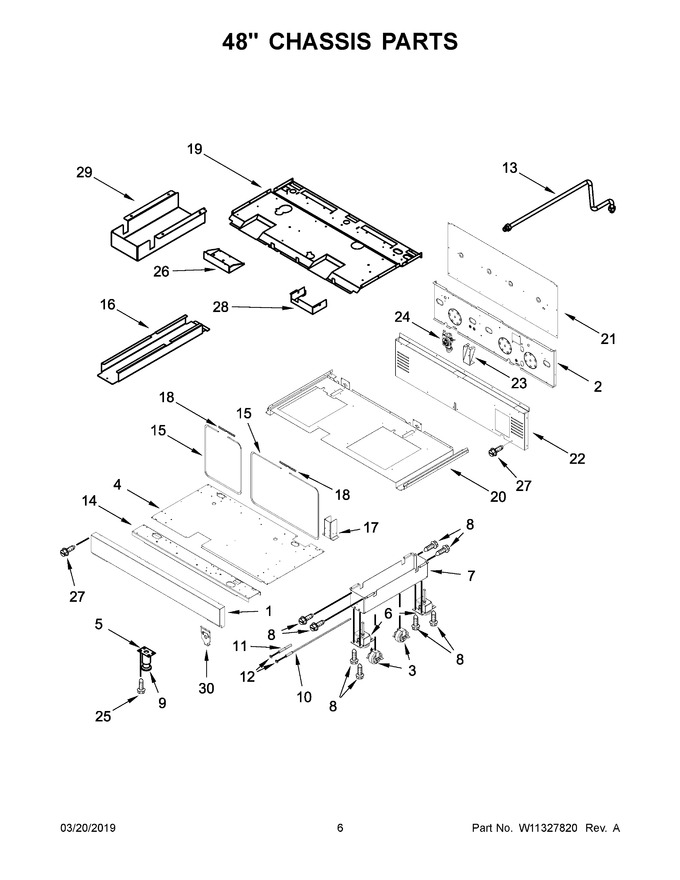

04 - 48" Chassis Parts


05 - 30" Oven Parts


06 - 18" Oven Parts


07 - Venting Parts


08 - 30" Oven Door Parts


09 - 18" Oven Door Parts


10 - 30" Internal Oven Parts


11 - 18" Internal Oven Parts


12 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11317946		Kickplate   (Replaces: W10883797)				$ 394.98
2	W11320542		Back, Chassis   (Replaces: W11105913)		Appelez-nous	-
3	WPW10138054		Assembly, Roller   (Replaces: W10138054)				$ 45.34
4	W11320536		Duct, Bottom (48")   (Replaces: W11110260)		Appelez-nous	-
5	WP9759118		Plate, Mounting   (Replaces: 9759118)				$ 154.94
6	W10859931		Leveler   (Replaces: 9760860)				$ 119.11
7	W10908710		Base, Leveling Leg				$ 145.26
8	WP4449743		Screw   (Replaces: 4449743)				$ 7.55
9	WP9759117		Foot, Dual Fuel   (Replaces: 9759117)				$ 148.66
10	W10115869		Shaft, Long			Immediately	$ 109.36
11	W10115793		Shaft, Short				$ 75.83
12	489504		E-ring				$ 7.40
13	W11320154		Tube, Pressure Regulator   (Replaces: W11106963)				$ 185.91
14	W11320602		Support, Channel   (Replaces: W11087494)		Appelez-nous	-
15	W11675844		Gasket, Oven (30")   (Replaces: W11115328)			Immediately	$ 74.56
16	W11050145		Duct-chassis, Rear		Appelez-nous	-
17	W10115819		Column, Central		Appelez-nous	-
18	W10216520		Retainer, Gasket (9" Long)		Appelez-nous	-
19	W11320544		Top, Chassis   (Replaces: W11037132)		Appelez-nous	-
20	W11320545		Chassis, Bottom   (Replaces: W11040800)		Appelez-nous	-
21	W11320600		Panel, Back Top   (Replaces: W11103335)		Appelez-nous	-
22	W11320599		Panel, Back Bottom   (Replaces: W11034123)		Appelez-nous	-
23	W11320155		Bracket, Pressure Regulator   (Replaces: W11096823)		Appelez-nous	-
24	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
25	3400518		Screw				$ 13.63
26	W11320147		Drawer, Appliance Manager   (Replaces: W11106341)		Appelez-nous	-
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
28	W11106335		Cabinet, Appliance Manager		Appelez-nous	-
29	W11320146		Channel, Wire   (Replaces: W11084360)		Appelez-nous	-
30	W11318207		Spring Clip, Range   (Replaces: W11036559)				$ 12.88
15A	W11115326		Gasket, Oven (18")			Immediately	$ 201.26
