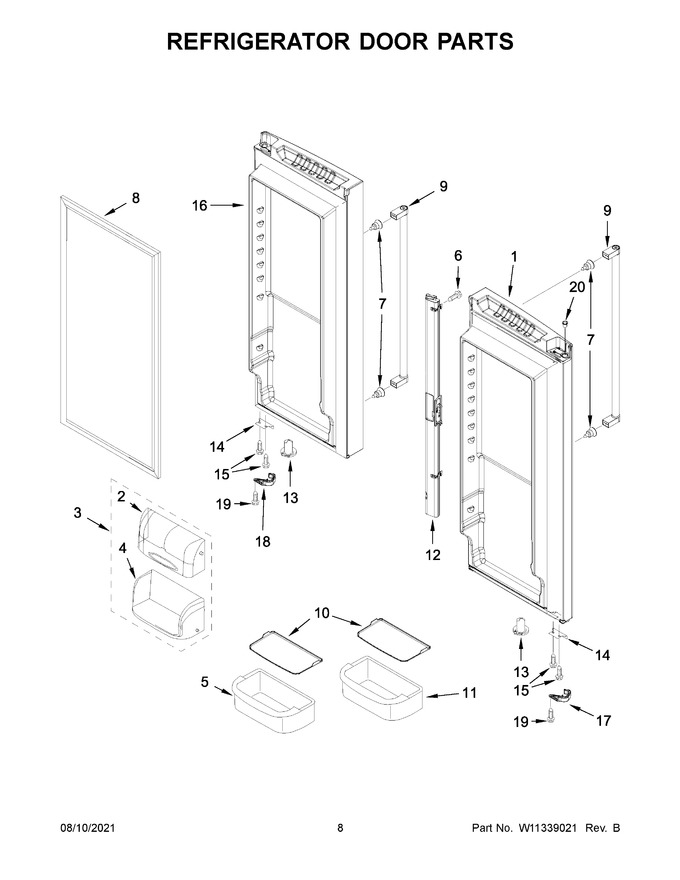

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107888WQ | Door, Left (white) (Replaces: 13107888W) |
|
$ 995.87 | |||||
| 2 | WP67003637 | Door, Dairy (Replaces: 12804701SP) |
|
Immediately | $ 82.67 | ||||
| 3 | WP12744905 | Assembly, Dairy (Replaces: 12744905) |
|
$ 113.99 | |||||
| 4 | WP67001279 | Tray, Dairy (Replaces: 12369502SP) |
|
Immediately | $ 88.01 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 8 | W10830189 | Gasket, Door (white) |
|
$ 228.91 | |||||
| 9 | W11483532 | Handle, Door (stainless) (Replaces: W11339136) |
|
Immediately | $ 178.01 | ||||
| 10 | WPW10450021 | Gripper, Medium (Replaces: W10450021) |
|
Immediately | $ 100.93 | ||||
| 11 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 12 | WP12722803W | Mullion, Door (white) (Replaces: 12722803W) |
|
Immediately | $ 261.21 | ||||
| 13 | WP67003638 | Closure, Door (white) (Replaces: 12028505W) |
|
Immediately | $ 8.15 | ||||
| 14 | 12968202W | Stop, Door (white) |
|
$ 69.29 | |||||
| 15 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 16 | 13107887WQ | Door, Right (white) (Replaces: 13107887W) |
|
$ 1,004.76 | |||||
| 17 | W10918118 | Latch, Door Closer (left Hand) (white) (Replaces: W10833740) |
|
$ 17.01 | |||||
| 18 | W10918120 | Latch, Door Closer (right Hand) (white) (Replaces: W10833738) |
|
Immediately | $ 17.01 | ||||
| 19 | WP67006908 | Screw (Replaces: 12990518) |
|
Immediately | $ 8.78 | ||||
| 20 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 10A | W11402028 | Gripper, Gallon (Replaces: W10449760) |
|
Immediately | $ 89.74 | ||||
| 12A | WP12722803B | Mullion, Door (black) (Replaces: 12722803B) |
|
$ 206.80 | |||||
| 12B | WP12722803AP | Mullion, Door (grey) (Replaces: 12732501AP) |
|
Immediately | $ 177.93 | ||||
| 13A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 13B | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 14A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 14B | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 16A | 13107887BQ | Door, Right (black) (Replaces: 13107887B) |
|
$ 1,157.96 | |||||
| 16B | 13107887SQ | Door, Right (stainless) (Replaces: 13107887S) |
|
$ 1,314.35 | |||||
| 17A | W10918170 | Latch, Door Closer (left Hand) (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 17B | W10918008 | Latch, Door Closer (left Hand) (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 18A | W10918171 | Latch, Door Closer (right Hand) (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 18B | W10918010 | Latch, Door Closer (right Hand) (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 1A | 13107888BQ | Door, Left (black) (Replaces: 13107888B) |
|
$ 1,067.14 | |||||
| 1B | 13107888SQ | Door, Left (stainless) (Replaces: 13107888S) |
|
$ 1,238.70 | |||||
| 8A | W11368721 | Gasket, Door (black) (Replaces: W10830206) |
|
Immediately | $ 169.21 | ||||
| 8B | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 |
