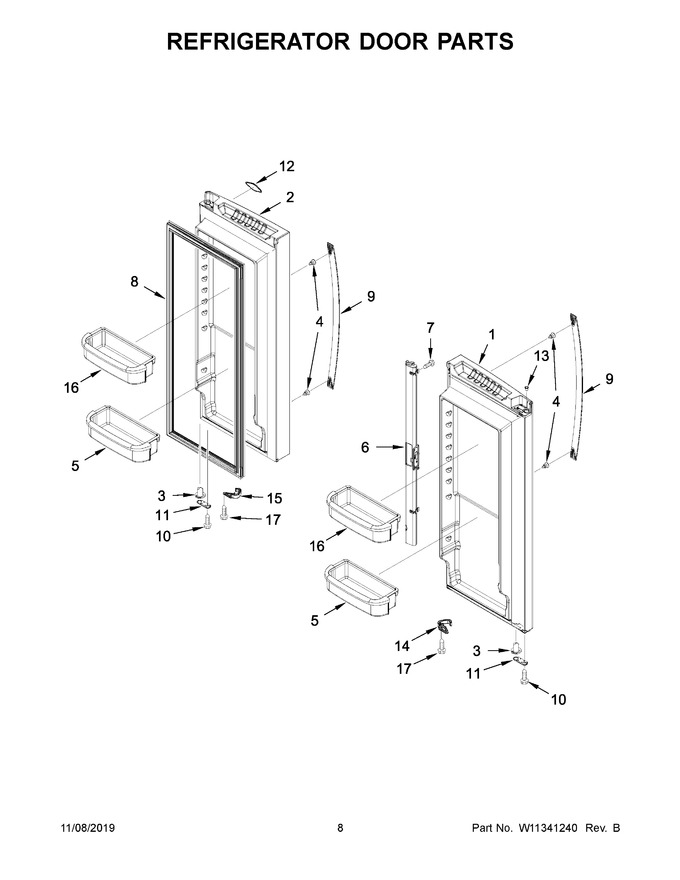

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11307258 | Door, Refrigerator Left Hand (stainless) (Replaces: W11254613) |
|
$ 1,059.74 | |||||
| 2 | W11307263 | Door, Refrigerator Right Hand (stainless) (Replaces: W11254623) |
|
$ 1,054.91 | |||||
| 3 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 4 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 17.06 | ||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 189.01 | ||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 248.60 | ||||
| 9 | W11163764 | Handle, Door (stainless) (Replaces: W11045530) |
|
Immediately | $ 183.31 | ||||
| 10 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 11 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 12 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 13 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 14 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 15 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 16 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 17 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 8.55 | ||||
| 11A | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 14A | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 15A | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 1A | W10919641 | Door, Refrigerator Left Hand (black Stainless) (Replaces: W10879200) |
|
$ 1,216.66 | |||||
| 2A | W10919633 | Door, Refrigerator Right Hand (black Stainless) (Replaces: W10879190) |
|
$ 1,211.82 | |||||
| 3A | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 6A | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
$ 245.37 | |||||
| 8A | W11368721 | Gasket, Door (black) (Replaces: W10830206) |
|
Immediately | $ 205.31 | ||||
| 9A | W11125624 | Handle, Door (black Stainless) (Replaces: W11101972) |
|
$ 190.44 |
