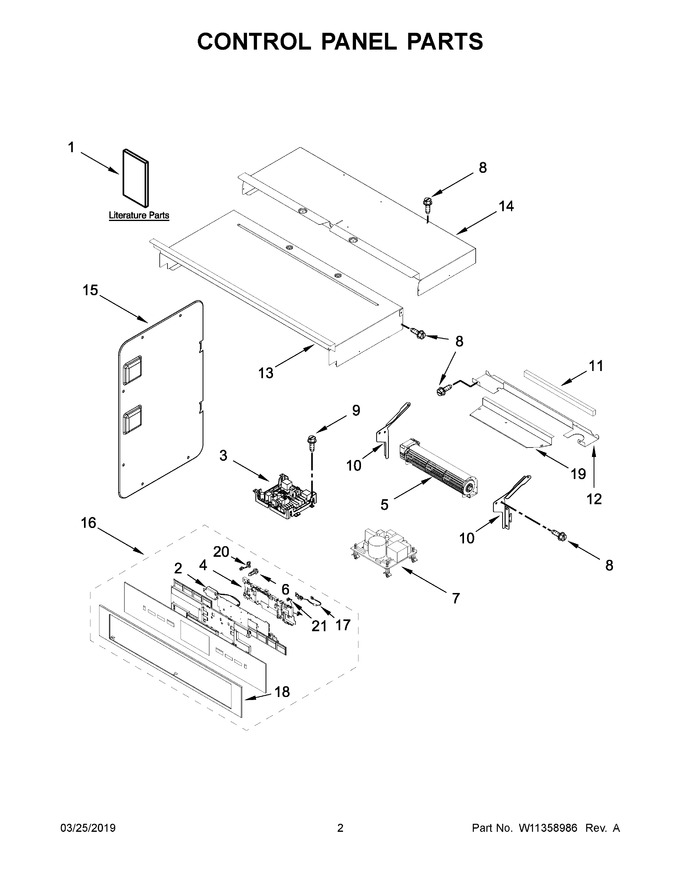

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10754335 | Guide, Use & Care (oven) |
|
- | |||||
| 2 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 77.08 | |||||
| 3 | W11179310 | Control (with Power Supply) (Replaces: W11040195) |
|
Immediately | $ 456.49 | ||||
| 4 | W10668510 | Housing |
|
$ 100.16 | |||||
| 5 | W11713858 | Blower, Dual Speed (Replaces: W11200130) |
|
Immediately | $ 331.99 | ||||
| 6 | W10489172 | Screw |
|
$ 11.41 | |||||
| 7 | WPW10260060 | Board, Power Supply (Replaces: W10260060) |
|
Immediately | $ 302.24 | ||||
| 8 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.82 | ||||
| 9 | WP7101P434-60 | Screw (Replaces: 7101P434-60) |
|
$ 6.95 | |||||
| 10 | W10655463 | Bracket, Blower (left) |
|
- | |||||
| 11 | W10491987 | Block, Foam (Replaces: 4451758) |
|
Immediately | $ 7.75 | ||||
| 12 | W10655465 | Chassis, Back Divider |
|
- | |||||
| 13 | W11037652 | Chassis, Cover Top Back 27" Wifi |
|
- | |||||
| 14 | W10318159 | Chassis, Cover Top Front 27 |
|
- | |||||
| 15 | W10655467 | Chassis, Combo Side |
|
$ 79.07 | |||||
| 16 | W11236900 | Assembly, Control Panel (includes Overlay) (stainless) (Replaces: W11102213) |
|
$ 1,914.34 | |||||
| 17 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 165.56 | ||||
| 18 | W10481158 | Skin, Control Panel (stainless) |
|
$ 331.57 | |||||
| 19 | W10681157 | Cover, Combo Blower |
|
- | |||||
| 20 | W10566973 | Harness, Keypad (left To Center) |
|
$ 78.28 | |||||
| 21 | W10524350 | Harness, Keypad (right To Center) |
|
$ 74.49 | |||||
| 10A | W10655462 | Bracket, Blower (right) |
|
- | |||||
| 1A | W10754339 | Guide, Use & Care (microwave) |
|
- | |||||
| 1B | W10768184 | Instructions, Installation |
|
- | |||||
| 1C | W11041089 | Sheet, Tech (english) |
|
- | |||||
| 1D | W11041090 | Sheet, Tech (english/french) |
|
- | |||||
| NI | 4450800 | Screw, Grounding |
|
$ 12.83 | |||||
| NI | W10874060 | Harness, Inverter |
|
$ 141.63 | |||||
| NI | W11356954 | Harness, Fan & Turntable (Replaces: W10874059) |
|
$ 141.67 | |||||
| NI | W11132994 | Harness, Main |
|
$ 361.36 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | 4448664 | Clamp, Conduit |
|
$ 20.39 | |||||
| NI | W11356977 | Harness, Cable Tree Assembly (Replaces: W10889134) |
|
$ 81.02 | |||||
| NI | W11171471 | Harness, Communication |
|
$ 224.92 | |||||
| NI | W11132989 | Harness, Door Latch |
|
$ 113.31 | |||||
| NI | W11325605 | Jumper Harness, Communication (Replaces: W11198503) |
|
$ 182.09 | |||||
| NI | W11226264 | Strap, Ground |
|
- | |||||
| NI | W10523786 | Harness, Signal |
|
Immediately | $ 180.31 |
