SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel Parts

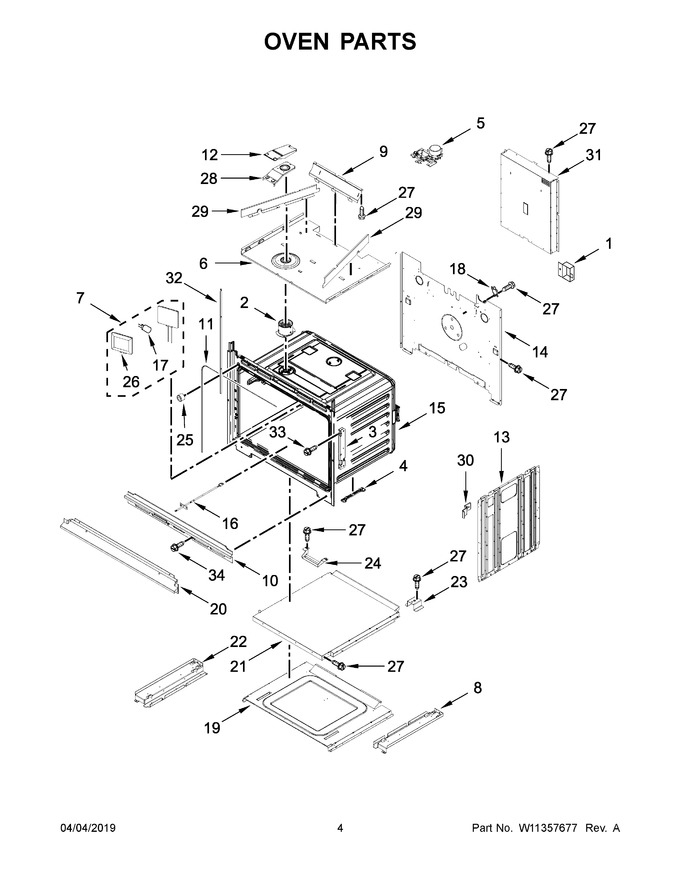

03 - Oven Parts


04 - Oven Door Parts


05 - Internal Oven Parts


06 - Cabinet And Stirrer Parts


07 - Internal Microwave Parts


08 - Top Venting Parts


09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11819303		Cover, Connector   (Replaces: 8285593)		Appelez-nous	-
2	W11240525		Tube, Vent   (Replaces: W11085298)				$ 24.32
3	W11613828		Receiver, Hinge   (Replaces: W11044775)			Immediately	$ 54.75
4	W11240831		Spacer, Base   (Replaces: W10618102)				$ 16.43
5	W10883049		Latch, Motorized   (Replaces: W10618131)			Immediately	$ 306.46
6	W10904158		Top, Chassis		Appelez-nous	-
7	W11245268		Assembly, Oven Light   (Replaces: W11198684)				$ 99.25
8	W10283021		Support, Base (right)		Appelez-nous	-
9	W10904163		Deflector, Blower			Immediately	$ 161.70
10	W10495154		Vent, Center 30				$ 189.07
11	W11623080		Gasket   (Replaces: W10739089)			Immediately	$ 72.35
12	W10616810		Cover, Vent Exhaust				$ 66.62
13	W10318190		Side, Chassis				$ 117.20
14	W10904160		Back, Chassis		Appelez-nous	-
15	N/P		Liner, Oven (not Serviceable)		Appelez-nous	-
16	W10859573		Probe, Sensor   (Replaces: W10622170)			Immediately	$ 133.83
17	WPW10472384		Bulb, Light   (Replaces: W10472384)			Immediately	$ 92.48
18	WP4449751		Thermostat (tod)   (Replaces: 4449751)			Immediately	$ 111.84
19	W11238787		Base, Chassis				$ 333.00
20	WPW10327374		Assembly, Bottom Vent (stainless)   (Replaces: W10327374)				$ 330.27
21	WPW10283008		Chassis, Bottom Duct   (Replaces: W10283008)				$ 209.57
22	W10283020		Support, Base (left)		Appelez-nous	-
23	W10213759		Support, Air Channel		Appelez-nous	-
24	W10351308		Spacer, Chassis Bottom Duct				$ 58.73
25	WPW10351278		Bumper & Screw   (Replaces: W10351278)				$ 10.49
26	WPW10519866		Lens, Light   (Replaces: W10472386)				$ 91.74
27	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
28	W10616809		Base, Vent Exhaust				$ 30.70
29	W10681156		Deflector, Chassis		Appelez-nous	-
30	W10347649		Spacers, Front				$ 14.30
31	W11037653		Cover, Combo Chassis Back Duct (with Hole)				$ 68.62
32	W10536162		Trim, Side (black (left))   (Replaces: W10344483)				$ 36.89
33	WPW10254050		Screw   (Replaces: W10254050)				$ 8.11
34	WPY706189		Screw   (Replaces: 7101P427-60)			Immediately	$ 7.19
32A	W10536162		Trim, Side (black (right))   (Replaces: W10344482)				$ 36.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11684789		Insulation, Cavity   (Replaces: W10282944)				$ 118.13
NI	W11688731		Insulation, Wrap   (Replaces: W10520715)				$ 118.92

    View Diagram in Separate Window       Print Part List
