View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

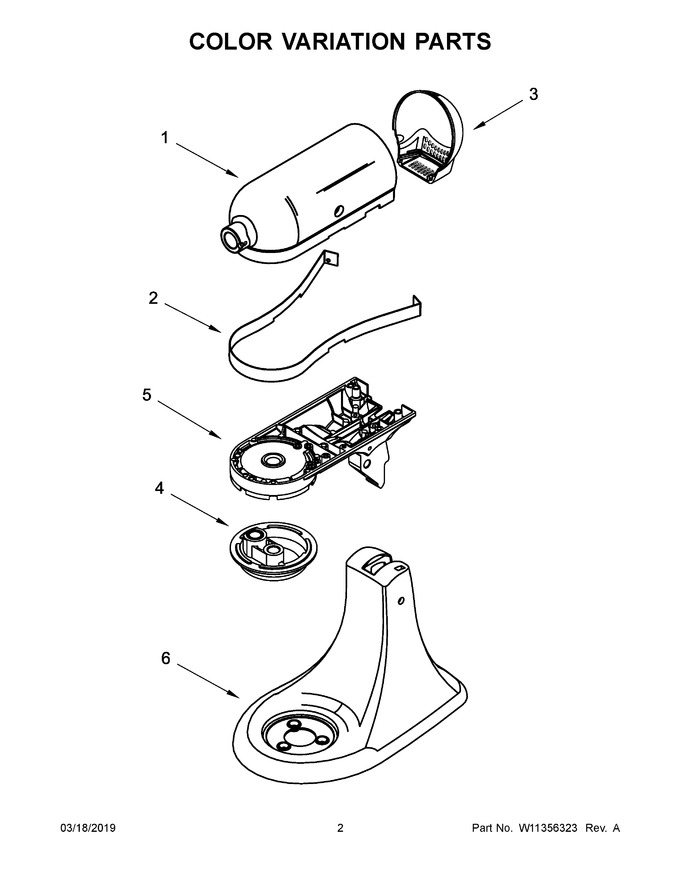

02 - Color Variation Parts
03 - Base And Pedestal Unit Parts
04 - Case, Gearing And Planetary Unit Parts
05 - Motor And Control Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11298420 | Motor Housing (signature Red) |
|
- | |||||
| 2 | W11239195 | Trim Band (signature Red) |
|
- | |||||
| 3 | W11298415 | End Cover (signature Red) |
|
- | |||||
| 4 | 240286-21 | Planetary (chrome) |
|
- | |||||
| 5 | W11298417 | Lower Gearcase (signature Red) |
|
- | |||||
| 6 | W11298425 | Pedestal (signature Red) |
|
- |
