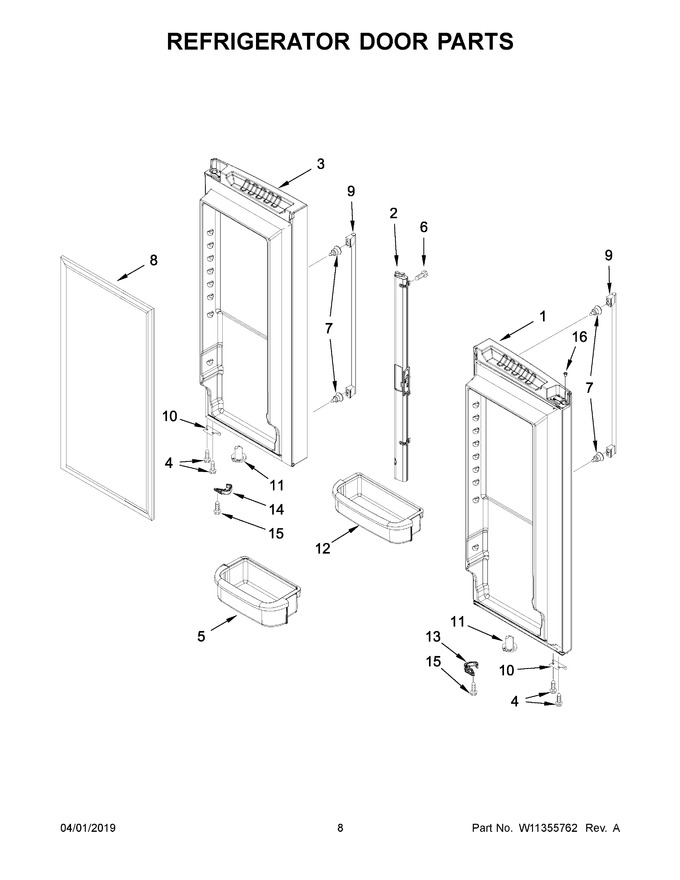

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13107888SQ | Door, Left (stainless) (Replaces: 13107888S) |
|
$ 1,238.70 | |||||
| 2 | WP12722803AP | Mullion, Door (grey) (Replaces: 12722803APN) |
|
Immediately | $ 177.93 | ||||
| 3 | 13107887SQ | Door, Right (stainless) (Replaces: 13107887S) |
|
$ 1,314.35 | |||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 5 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 8 | W10830162 | Gasket, Door (grey) |
|
Immediately | $ 212.57 | ||||
| 9 | WPW10202821 | Handle, Door (stainless) (Replaces: W10202821) |
|
$ 304.55 | |||||
| 10 | W11703060 | Stop, Door (grey) (Replaces: 12968202AP) |
|
$ 15.46 | |||||
| 11 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 12 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 13 | W10918008 | Latch, Door Closer Left Hand (grey) (Replaces: W10833741) |
|
$ 17.64 | |||||
| 14 | W10918010 | Latch, Door Closer Right Hand (grey) (Replaces: W10833739) |
|
Immediately | $ 17.64 | ||||
| 15 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 8.55 | ||||
| 16 | 12996601 | Clip, Bushing |
|
$ 10.05 |
