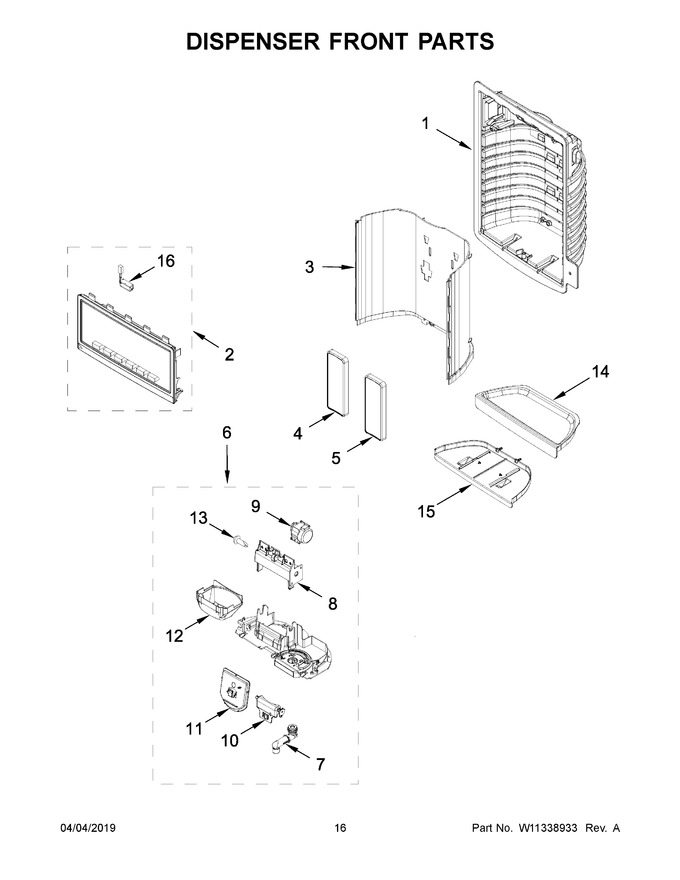

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11284720		Assembly, User Interface (includes Light Feature)   (Replaces: W11114471)				$ 366.66
3	W11045978		Wall, Dispenser False (nickel)				$ 90.33
4	WPW10368730		Pad, Ice (grey)   (Replaces: W10334801)			Immediately	$ 319.47
5	WPW10368730		Pad, Water (grey)   (Replaces: W10334825)			Immediately	$ 319.47
6	WPW10353552		Assembly, Separator (includes Spigot And Ice Guide)   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	W10174818		Clip, Motor Coupling		Appelez-nous	-
14	W11192301		Tray, Dispenser (nickel)   (Replaces: W11045973)				$ 65.82
15	WPW10267863		Tray, Dispenser Slide (grey)   (Replaces: W10267863)				$ 73.22
16	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
