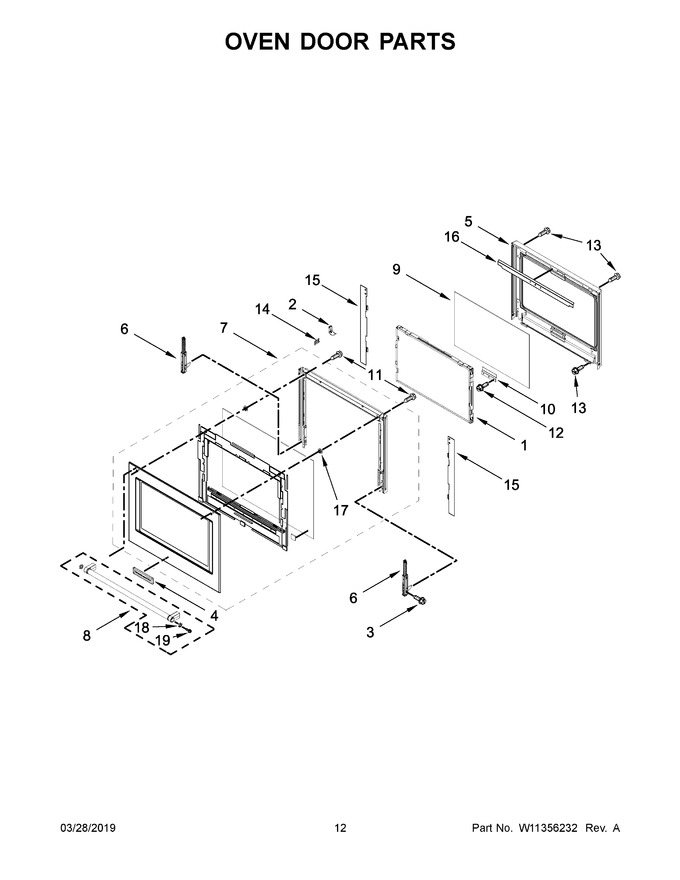

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10347597 | Assembly, Window Pack (Replaces: W10347597) |
|
$ 294.07 | |||||
| 2 | W10812024 | Spring, Door Glass Fixation (Replaces: W10284285) |
|
$ 165.76 | |||||
| 3 | WP3196183 | Screw (Replaces: 3196183) |
|
Immediately | $ 8.18 | ||||
| 4 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 5 | WPW10320793 | Assembly, Liner (Replaces: W10320793) |
|
$ 337.34 | |||||
| 6 | W11642291 | Hinge, Door (Replaces: W10639067) |
|
$ 83.24 | |||||
| 7 | W10909944 | Assembly, Door (black Stainless) (Replaces: W10878437) |
|
$ 851.32 | |||||
| 8 | W11525064 | Assembly, Handle (stainless) (Replaces: W10640874) |
|
$ 238.98 | |||||
| 9 | W10829001 | Glass, Inner (Replaces: W10678525) |
|
$ 208.55 | |||||
| 10 | W10853628 | Bracket, Glass (Replaces: W10284297) |
|
$ 163.86 | |||||
| 11 | W10831019 | Screw (Replaces: W10480830) |
|
Immediately | $ 8.27 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | WP98008545 | Screw (black) (Replaces: 7101P633-60) |
|
$ 18.60 | |||||
| 14 | W11025615 | Clip, Spring Metal (Replaces: W10653954) |
|
Immediately | $ 176.14 | ||||
| 15 | W10687815 | Extension, Side Rail (left) |
|
$ 71.68 | |||||
| 16 | W10669415 | Shield, Door Liner |
|
$ 69.55 | |||||
| 17 | W11676355 | Washer, Door (Replaces: W10319024) |
|
Immediately | $ 14.81 | ||||
| 18 | W10846207 | Medallion, Handle (Replaces: W10551026) |
|
Immediately | $ 23.14 | ||||
| 19 | W10920281 | Screw (Replaces: W10656499) |
|
Immediately | $ 8.95 | ||||
| 15A | W10687814 | Extension, Side Rail (right) |
|
$ 71.68 |
