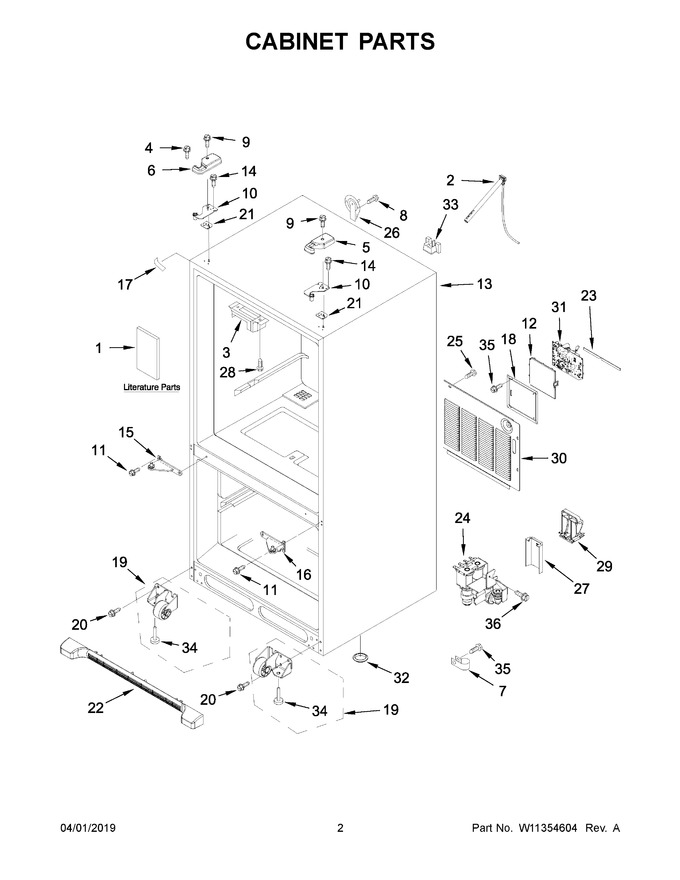

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10787422 | Tech Sheet |
|
- | |||||
| 2 | W11817981 | Assembly, Fill Tube (includes Tubing, Fill Tube Elbow, Tube Insert And Clamp) (Replaces: W11046934) |
|
Immediately | $ 86.92 | ||||
| 3 | WP67003405 | Plate, Pivot (Replaces: 12698403) |
|
Immediately | $ 7.82 | ||||
| 4 | W11214483 | Screw (Replaces: 12992601) |
|
$ 14.02 | |||||
| 5 | WP67005956 | Cover, Right Hinge (black) (Replaces: 12962302B) |
|
$ 21.47 | |||||
| 6 | W10337647 | Cover, Left Hinge (includes Foil) (black) |
|
Immediately | $ 22.22 | ||||
| 7 | W11456069 | Clamp, Tube (Replaces: M0108107) |
|
Immediately | $ 21.33 | ||||
| 8 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.00 | |||||
| 9 | WP8281196 | Screw (Replaces: 12992602) |
|
Immediately | $ 7.19 | ||||
| 10 | W11592375 | Hinge, Top (left Hand) (Replaces: 12963204ED) |
|
$ 29.09 | |||||
| 11 | W11573362 | Screw (stainless) (Replaces: W10673840) |
|
$ 14.02 | |||||
| 12 | W11226688 | Lid, Hv Control Box (Replaces: W10296541) |
|
$ 81.10 | |||||
| 13 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 14 | WP489349 | Screw (Replaces: 12992403) |
|
Immediately | $ 7.88 | ||||
| 15 | W10918166 | Hinge, Center (left) (black) (Replaces: W10740149) |
|
$ 74.58 | |||||
| 16 | W10918168 | Hinge, Center (right) (black) (Replaces: W10740145) |
|
Immediately | $ 74.56 | ||||
| 17 | 67003485 | Cover, Corner (black) (Replaces: 12587703B) |
|
Immediately | $ 21.09 | ||||
| 18 | 12961602 | Cover, Control Box |
|
$ 110.66 | |||||
| 19 | W11820444 | Assembly, Roller (left Hand) (Replaces: W10515763) |
|
Immediately | $ 35.57 | ||||
| 20 | 67006564 | Screw (Replaces: W10709365) |
|
Immediately | $ 7.69 | ||||
| 21 | 12999501 | Shim, Hinge (left Hand) |
|
$ 94.79 | |||||
| 22 | WPW10534162 | Grille, Toe (black) (Replaces: W10534162) |
|
$ 141.10 | |||||
| 23 | 12957801 | Gasket, Control Box |
|
- | |||||
| 24 | WPW10420083 | Valve, Water Inlet (Replaces: W10420083) |
|
Immediately | $ 159.91 | ||||
| 25 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 26 | 12726003 | Cover, Water Line |
|
$ 18.28 | |||||
| 27 | W10208593 | Guard, Dual Water Valve |
|
$ 14.96 | |||||
| 28 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 29 | W10528513 | Sweep, Dual Tube |
|
$ 41.66 | |||||
| 30 | W10210980 | Cover, Unit |
|
$ 193.85 | |||||
| 31 | WPW10317076 | Board, Hv Control (Replaces: W10317076) |
|
Immediately | $ 393.18 | ||||
| 32 | A3076901 | Plug, Button |
|
$ 5.70 | |||||
| 33 | W11686793 | Block, Fill Tube (Replaces: W10658542) |
|
$ 22.45 | |||||
| 34 | WPW10141622 | Brake, Roller (Replaces: W10141622) |
|
Immediately | $ 7.85 | ||||
| 35 | W11686675 | Screw (Replaces: 12990702) |
|
$ 13.59 | |||||
| 36 | WP489128 | Screw (Replaces: 12991604) |
|
$ 10.88 | |||||
| 10A | W11592374 | Hinge, Top (right Hand) (Replaces: 12963205ED) |
|
Immediately | $ 29.02 | ||||
| 19A | W11820445 | Assembly, Roller (right Hand) (Replaces: W10515762) |
|
Immediately | $ 35.57 | ||||
| 1A | W11298859 | Use And Care Guide |
|
- | |||||
| 1B | W11308943 | Energy Guide |
|
- | |||||
| 21A | 12999502 | Shim, Hinge (right Hand) |
|
$ 95.81 |
