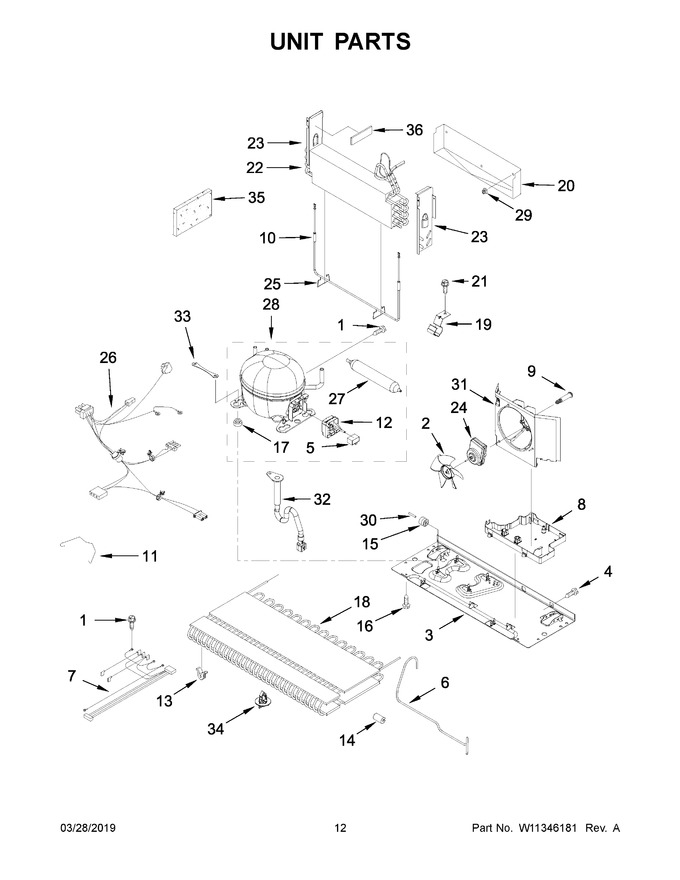

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12992301 | Screw |
|
$ 7.32 | |||||
| 2 | WP12825803 | Blade, Fan (Replaces: 12825803) |
|
Immediately | $ 75.12 | ||||
| 3 | W11727651 | Basepan (Replaces: W10480111) |
|
$ 110.55 | |||||
| 4 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 7.30 | ||||
| 5 | WPW10350564 | Capacitor (Replaces: W10350564) |
|
Immediately | $ 99.49 | ||||
| 6 | WPW10233569 | Tube, Discharge (Replaces: W10233569) |
|
$ 130.76 | |||||
| 7 | W11174745 | Harness, Evaporator Heater |
|
$ 104.91 | |||||
| 8 | WPW10655368 | Pan, Drain (Replaces: W10655368) |
|
Immediately | $ 99.03 | ||||
| 9 | W10829281 | Screw (Replaces: W10622701) |
|
$ 13.28 | |||||
| 10 | WP12729123 | Heater, Defrost (Replaces: 12729123) |
|
$ 191.44 | |||||
| 11 | W11092534 | Strap, Bale (Replaces: W10216075) |
|
$ 11.89 | |||||
| 12 | W11092533 | Device, Start (Replaces: W10798748) |
|
Immediately | $ 100.03 | ||||
| 13 | WPW10137529 | Grommet, Condenser (Replaces: W10137529) |
|
$ 8.76 | |||||
| 14 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 8.09 | |||||
| 15 | 12477102 | Roller |
|
Immediately | $ 7.38 | ||||
| 16 | 12992101 | Screw |
|
- | |||||
| 17 | W11678963 | Grommet, Compressor (Replaces: W10806346) |
|
$ 8.51 | |||||
| 18 | WPW10346415 | Condenser (Replaces: W10346415) |
|
$ 352.15 | |||||
| 19 | W10281329 | Clip, Drier |
|
$ 13.73 | |||||
| 20 | W11547653 | Tray, Drip (Replaces: W10292803) |
|
$ 57.02 | |||||
| 21 | WP33001882 | Screw (Replaces: 12990701) |
|
$ 83.71 | |||||
| 22 | W11256565 | Evaporator (Replaces: W10669255) |
|
Immediately | $ 383.47 | ||||
| 23 | 12225602 | Dam (left Hand) |
|
$ 14.66 | |||||
| 24 | W11613295 | Motor, Condenser Fan (Replaces: W10909377) |
|
Immediately | $ 143.68 | ||||
| 25 | W11673433 | Clip, Heater (Replaces: 10428101) |
|
$ 148.18 | |||||
| 26 | W11224411 | Harness, Unit (includes Power Cord) |
|
$ 147.02 | |||||
| 27 | WPW10143759 | Drier (Replaces: W10177049) |
|
Immediately | $ 30.78 | ||||
| 28 | W11209866 | Compressor (Replaces: W11100924) |
|
Immediately | $ 390.80 | ||||
| 29 | 10623002 | Clip, Evaporator |
|
$ 12.11 | |||||
| 30 | 67006434 | Axle, Roller (Replaces: 12477202) |
|
Immediately | $ 7.90 | ||||
| 31 | W11556315 | Shroud, Condenser Fan (Replaces: W10189184) |
|
$ 83.64 | |||||
| 32 | W10619951 | Extension, Drain Tube (Replaces: W10622099) |
|
Immediately | $ 42.39 | ||||
| 33 | W10236396 | Strap, Compressor |
|
Immediately | $ 20.81 | ||||
| 34 | W10815863 | Clip, Condenser |
|
Immediately | $ 40.66 | ||||
| 35 | W11553819 | Insulation, Sound Deadening (Replaces: 2169104) |
|
Immediately | $ 14.77 | ||||
| 36 | W11451451 | Gasket, Foam (Replaces: A3189397) |
|
$ 13.03 | |||||
| 23A | 12225702 | Dam (right Hand) |
|
$ 14.09 | |||||
| NI | 978026 | Valve, Access (5/16") |
|
Immediately | $ 134.49 | ||||
| NI | WP978025 | Valve, Access (1/4") (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| NI | N/P | Refrigerant Charge 5.0 Oz. (r-134a) |
|
- | |||||
| NI | 876764 | Valve, Access (3/16") |
|
Immediately | $ 95.92 | ||||
| NI | 978029 | Valve, Access (5/8") |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4") |
|
$ 137.25 | |||||
| NI | SF5538 | Valve, Access (3/8") (Replaces: 978027) |
|
$ 21.64 |
