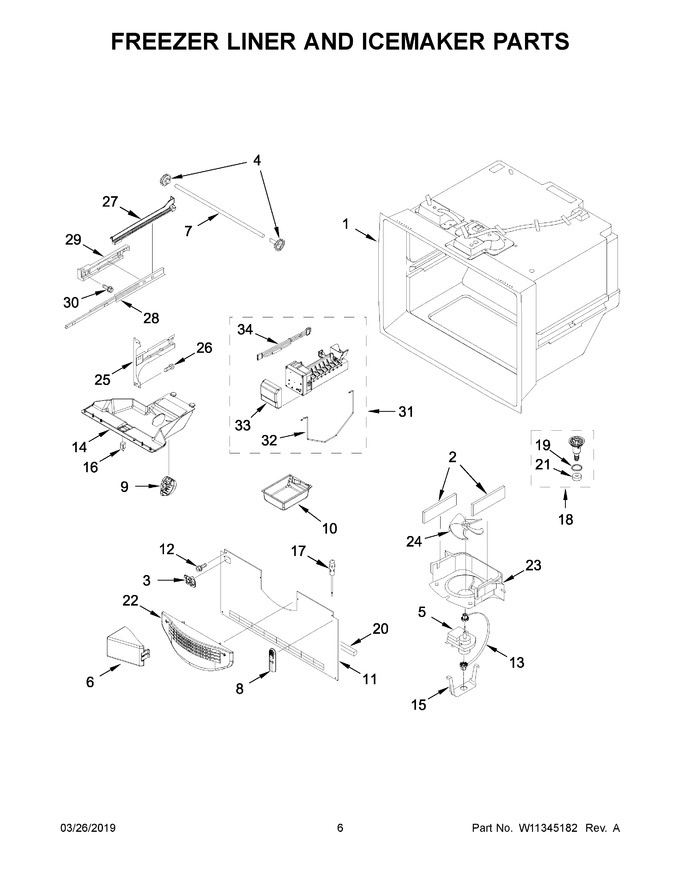

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/P | Liner (not A Seviceable Part) |
|
- | |||||
| 2 | W10856123 | Gasket, Foam (Replaces: A3189392) |
|
Immediately | $ 7.68 | ||||
| 3 | W11448709 | Guide, Fill Tube (Replaces: W11261524) |
|
$ 24.64 | |||||
| 4 | 12002497 | Gear |
|
Immediately | $ 22.51 | ||||
| 5 | W11024089 | Motor, Evaporator (Replaces: 13062901) |
|
Immediately | $ 58.74 | ||||
| 6 | W10157765 | Diverter, Air |
|
$ 88.43 | |||||
| 7 | W11715937 | Shaft, Rack (Replaces: W10802331) |
|
$ 65.42 | |||||
| 8 | WP67003924 | Cover, Thermistor (Replaces: 12815301) |
|
$ 7.82 | |||||
| 9 | W11602886 | Light Module, Led (Replaces: W11251749) |
|
$ 42.63 | |||||
| 10 | WPW10171529 | Pan, Ice (Replaces: W10171529N) |
|
Immediately | $ 180.52 | ||||
| 11 | W10308415 | Cover, Evaporator |
|
$ 285.46 | |||||
| 12 | 67006425 | Screw (Replaces: 12990511) |
|
Immediately | $ 6.95 | ||||
| 13 | W11690160 | Grommet, Fan Motor (Replaces: W10150583) |
|
$ 7.91 | |||||
| 14 | WPW10277025 | Module, Light (Replaces: W10277025) |
|
$ 128.00 | |||||
| 15 | 13058002 | Clip, Evaporator Motor |
|
$ 12.66 | |||||
| 16 | W11396033 | Switch, Light (Replaces: W10847849) |
|
Immediately | $ 37.30 | ||||
| 17 | 12002355 | Thermistor (Replaces: 12791409SP) |
|
Immediately | $ 47.36 | ||||
| 18 | W10815413 | Assembly, Drain Funnel (Replaces: W10662407) |
|
Immediately | $ 49.05 | ||||
| 19 | WPM0500703 | Seal (Replaces: M0500703) |
|
$ 10.92 | |||||
| 20 | W11159742 | Gasket, Foam (Replaces: A3189395) |
|
$ 27.03 | |||||
| 21 | WPB8381501 | Gasket, Drain (Replaces: B8381501) |
|
$ 7.41 | |||||
| 22 | WPW10175909 | Grille, Freezer Air (Replaces: 13024803) |
|
Immediately | $ 85.72 | ||||
| 23 | WPW10167023 | Shroud, Evaporator Fan (Replaces: 13057901) |
|
Immediately | $ 66.28 | ||||
| 24 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 25 | WPW10330991 | Bracket, Door (left Hand) (Replaces: W10330991) |
|
$ 156.49 | |||||
| 26 | WP98165 | Screw (Replaces: 12990521) |
|
$ 8.00 | |||||
| 27 | W11489993 | Rail, Side (left Hand) (Replaces: W10516603) |
|
$ 22.34 | |||||
| 28 | W11658402 | Slide, Door (Replaces: W10860513) |
|
Immediately | $ 127.51 | ||||
| 29 | WPW10284684 | Adapter, Slide (left Hand) (Replaces: W10284684) |
|
Immediately | $ 39.77 | ||||
| 30 | WP489474 | Screw (Replaces: 12990501) |
|
Immediately | $ 7.97 | ||||
| 31 | W10884390 | Assembly, Icemaker (complete) (Replaces: W10793298) |
|
Immediately | $ 142.52 | ||||
| 32 | W11285509 | Arm, Shut Off (Replaces: W11260635) |
|
$ 94.00 | |||||
| 33 | W10445790 | Cover, Icemaker |
|
- | |||||
| 34 | W10886932 | Harness, Icemaker Wire (Replaces: W10793621) |
|
Immediately | $ 133.51 | ||||
| 25A | WPW10330993 | Bracket, Door (right Hand) (Replaces: W10330993) |
|
$ 158.18 | |||||
| 27A | W11489994 | Rail, Side (right Hand) (Replaces: W10516602) |
|
$ 22.34 | |||||
| 29A | WPW10284685 | Adapter, Slide (right Hand) (Replaces: W10284685) |
|
$ 40.04 |
