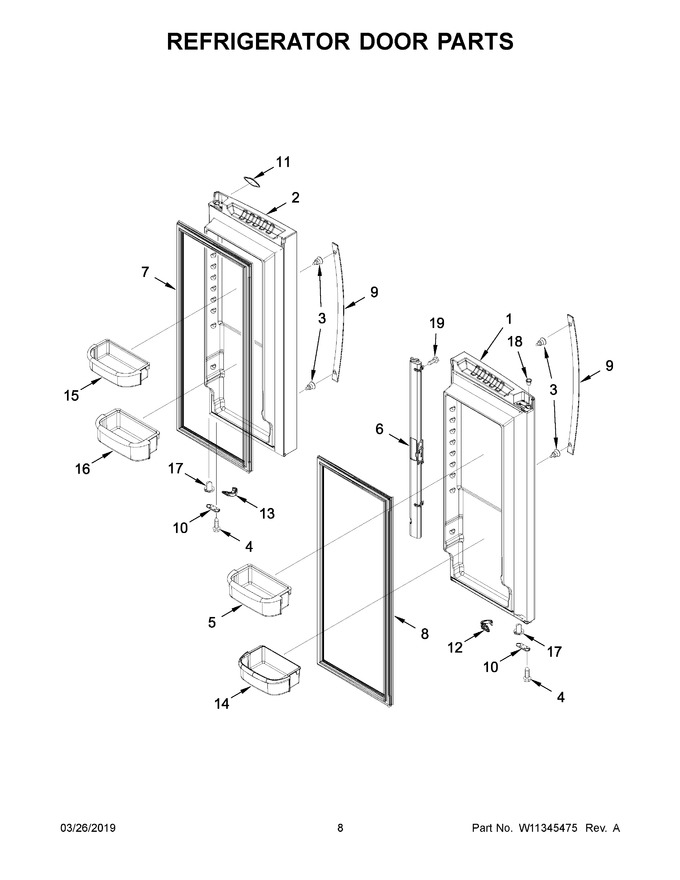

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10919650 | Door, Refrigerator Left Hand (black Stainless) (Replaces: W10879259) |
|
$ 1,213.53 | |||||
| 2 | W10919655 | Door, Refrigerator Right Hand (black Stainless) (Replaces: W10879257) |
|
$ 1,212.00 | |||||
| 3 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 4 | WP98165 | Screw (Replaces: 12990504) |
|
$ 8.57 | |||||
| 5 | WPW10351081 | Bucket, Small (Replaces: W10351081) |
|
Immediately | $ 73.03 | ||||
| 6 | WP12722803B | Mullion, Door (black) (Replaces: 12722803BN) |
|
Immediately | $ 206.80 | ||||
| 7 | W11368721 | Gasket, Door Right Hand (black) (Replaces: W10830206) |
|
Immediately | $ 169.21 | ||||
| 8 | W10830289 | Gasket, Door Left Hand (black) |
|
Immediately | $ 204.87 | ||||
| 9 | W11125624 | Handle, Door (black Stainless) (Replaces: W11101972) |
|
$ 190.44 | |||||
| 10 | W11708403 | Stop, Door (black) (Replaces: 12968202B) |
|
Immediately | $ 14.75 | ||||
| 11 | W11223753 | Badge (Replaces: W10884773) |
|
Immediately | $ 87.26 | ||||
| 12 | W10918170 | Latch, Door Closer Left Hand (black) (Replaces: W10725268) |
|
$ 17.64 | |||||
| 13 | W10918171 | Latch, Door Closer Right Hand (black) (Replaces: W10725267) |
|
$ 17.61 | |||||
| 14 | WP12918704 | Bucket, Gallon (clear) (Replaces: 12918704) |
|
Immediately | $ 87.02 | ||||
| 15 | WPW10289497 | Bucket, Gallon (Replaces: W10289497) |
|
Immediately | $ 81.09 | ||||
| 16 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 17 | WP67003639 | Closure, Door (black) (Replaces: 12028505B) |
|
$ 90.32 | |||||
| 18 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 19 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 |
