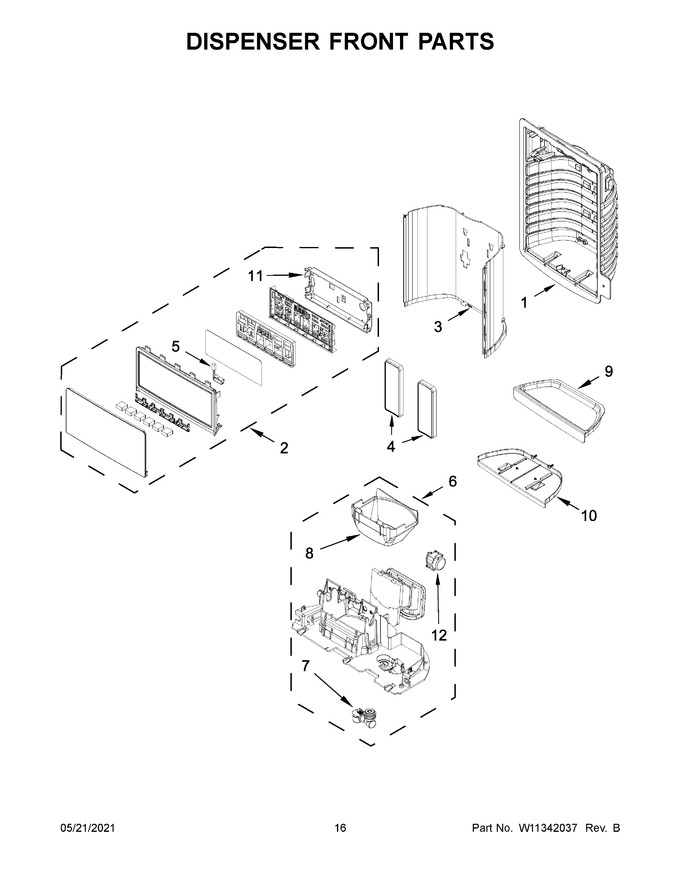

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | NP | Gearcase Motor Housing (refer To Color Variation Parts Page) |
|
- | |||||
| 2 | W11542754 | Assembly, User Interface (stainless) (Replaces: W11482413) |
|
$ 493.70 | |||||
| 3 | W11045978 | Wall, Dispenser False (nickel) |
|
$ 90.33 | |||||
| 4 | WPW10353848 | Assembly, Pad (includes Blue Light) (grey) (Replaces: W10353848) |
|
$ 321.56 | |||||
| 5 | W11290115 | Assembly, Led (Replaces: W10238083) |
|
$ 84.45 | |||||
| 6 | WPW10353552 | Assembly, Separator (includes Spigot And Ice Guide) (Replaces: W10353552) |
|
$ 166.29 | |||||
| 7 | W11227371 | Assembly, Spigot Body (Replaces: 2316647) |
|
$ 136.38 | |||||
| 8 | WPW10435760 | Guide, Ice (Replaces: W10339578) |
|
$ 23.94 | |||||
| 9 | W11192301 | Dispenser, Tray (nickel) (Replaces: W11045973) |
|
$ 65.82 | |||||
| 10 | WPW10267863 | Tray, Dispenser Slide (grey) (Replaces: W10267863) |
|
$ 73.22 | |||||
| 11 | W10254277 | Cover, Board |
|
- | |||||
| 12 | WPW10205979 | Motor, Ice Door (Replaces: W10205979) |
|
Immediately | $ 107.60 |
