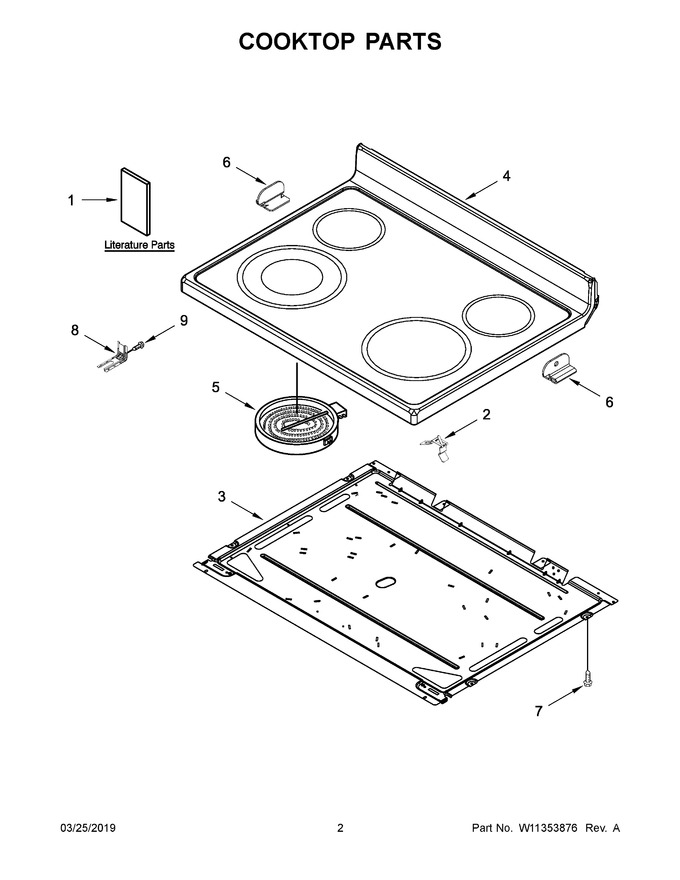

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11157404		Instructions, Installation		Appelez-nous	-
2	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 10.40
3	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 143.49
4	W10245805		Cooktop (black)   (Replaces: W10380657)				$ 553.83
5	W11517959		Element (3000/1400w) (left Front)   (Replaces: W10275048)			Immediately	$ 146.68
6	W10607641		Bracket, Cooktop (left)				$ 33.52
7	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
8	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 28.54
9	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 30.72
1A	W11102910		Guide, Use & Care		Appelez-nous	-
1B	W11102747		Sheet, Tech		Appelez-nous	-
1C	W11117212		Diagram, Wiring		Appelez-nous	-
5A	W11171119		Element (1200w) (left Rear & Right Rear)   (Replaces: W10248261)			Immediately	$ 225.62
5B	W11047722		Element (2500w) (right Front)   (Replaces: 8273992)			Immediately	$ 132.46
6A	W10607642		Bracket, Cooktop (right)		Appelez-nous	-
NI	W11188499		Harness, Main				$ 229.13
NI	W11188497		Harness, Cooktop (left)		Appelez-nous	-
NI	W11188496		Harness, Cooktop (right)		Appelez-nous	-
NI	WPW10281322		Kit, Bare Wire Adapter Block   (Replaces: W10281322)				$ 8.87
NI	W11838447		Harness, Hidden Bake   (Replaces: W11172528)				$ 27.02
NI	W10183541		Clip, Spring Steel		Appelez-nous	-
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 89.00
NI	WP3196154		Screw   (Replaces: 3196154)				$ 8.44
NI	W11244557		Screw   (Replaces: 3196173)				$ 14.29
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
