SELECT A DIAGRAM

01 - Cover Sheet


02 - Door

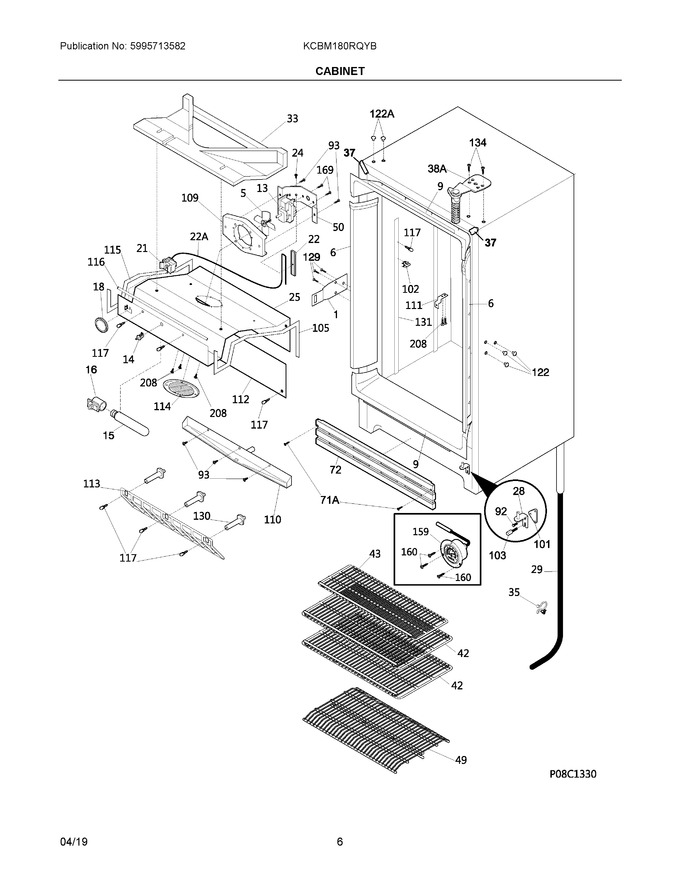

03 - Cabinet


04 - System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	297222500		Lock-catch		Appelez-nous	-
5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 54.48
6	297200900		Breaker Kit W/corners			Immediately	$ 78.72
9	297200100		Breaker Kit W/corners, 32", Top And Bottom				$ 65.87
13	297309000		Motor, Fan, 115 V   (Replaces: 297250000)			Immediately	$ 61.47
14	297243800		Switch, Light/lamp, Plunger				$ 40.75
15	5304517886		Lamp, Blue, 40 Watt, 130 Volt   (Replaces: 216518101)			Immediately	$ 81.18
16	297139500		Socket, Light/lamp				$ 20.09
18	216591506		Knob, Temp Control				$ 32.29
20	297121900		Clip, Shelf Support			Immediately	$ 13.48
21	297216042		Control-temperature			Immediately	$ 92.32
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5304460604		Screw, Type A, 10-24 X 3/8		Appelez-nous	-
25	297421403		Cover, Evaporator				$ 185.59
28	216335600		Hinge-bottom, Stepped Pin				$ 129.83
29	216361901		Hose-drain				$ 93.14
30	297215701		Breaker, Corners		Appelez-nous	-
33	297421501		Duct, Air				$ 69.47
35	216273000		Clip, Wire Retainer				$ 24.91
37	297273906		Trim-cabinet Corner, Gray				$ 8.03
42	5304494905		Shelf, Full Frame				$ 222.51
43	5304494906		Shelf, Cup, Partial				$ 216.88
49	297471401		Trivet				$ 136.24
50	08013207		Bracket-fan Motor				$ 12.92
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297071200		Grille/kickplate				$ 284.34
86	216036601		Screw, Rwhd, 8-32a X 0.500, Gx-ca				$ 15.17
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Door Stop/hng   (Replaces: 216850900)				$ 14.96
93	216858001		Screw, 8-18x.50 Ab, #10			Immediately	$ 12.05
105	297439601		Gasket, Evaporator, Rh		Appelez-nous	-
109	297014200		Venturi, Blower				$ 56.44
110	216377000		Pan-drain, Condensate				$ 246.82
111	297141400		Bracket-evap Cover		Appelez-nous	-
112	216381300		Cover-drain, Condensate				$ 134.09
113	216383602		Grate-air Intake		Appelez-nous	-
114	297014400		Cover-blower				$ 58.59
115	297439602		Gasket, Evaporator, Lh		Appelez-nous	-
116	216383800		Gasket-evap Cover, Front		Appelez-nous	-
117	216605500		Thumbscrew				$ 13.39
120	297206600		Caster-front, (2)				$ 72.66
121	297206500		Caster-rear, (2)				$ 73.40
122	215774922		Plug Button, Silver Mist   (Replaces: 215774920)				$ 21.91
129	216393301		Screw-lock Catch, One Way		Appelez-nous	-
130	297244700		Support, Evaporator Mtg				$ 4.73
131	297122000		Shelf-standard				$ 61.05
133	216658400		Bolt, Caster, 5/16 Sq. Neck, Front		Appelez-nous	-
134	240578902		Screw, Hex Head, 1/4-20x5/8, Hinge   (Replaces: 297236250)			Immediately	$ 15.75
159	5304506337		Dial, Thermometer				$ 194.39
160	297096100		Screw, #6-20x.375 Ab, Stainless, Thermo Dial				$ 9.19
169	216912401		Screw, Hex Washer Head, 8-32 X 0.500, Bracket Fan Mtr, (2)				$ 14.18
208	216504500		Screw, Ab, 8-18x.500		Appelez-nous	-
122A	216429602		Plug-button, Black, Upr Hinge Holes		Appelez-nous	-
133A	216658401		Bolt, Caster, 5/16 Sq. Neck, Front				$ 11.29
22A	5303916855		Tube, Sensor Sleeve, Plastic, Clear				$ 67.73
38A	297215900		Hinge-top, Door Closer				$ 155.83
71A	216395801		Screw, 1/4 20 X 1/2		Appelez-nous	-
NI	241500305		Screw, Self Pierce, #8, 18x.63   (Replaces: 297174300)				$ 3.37
NI	30534600		Clip, Wire   (Replaces: 5303313703)				$ 4.21
NI	297410600		Screw, 8-18 X .500			Immediately	$ 3.94
NI	5303311565		Clip-cable				$ 2.10
NI	297001708		Insulation, Drain Tube, 36				$ 13.28
NIA	301036		Nut-insert   (Replaces: 3017666)				$ 17.67
NIA	297164650		Bracket, Lh Leg Levelor				$ 18.43
NIA	240494003		Plug, Black   (Replaces: 297095301)				$ 20.22
NIAA	297242900		Hinge, Assy, Lh, W/instructions				$ 111.66
NIB	297164651		Bracket, Rh Leg Levelor				$ 17.51

    View Diagram in Separate Window       Print Part List
