01 - Cover Sheet
02 - Cooktop Parts

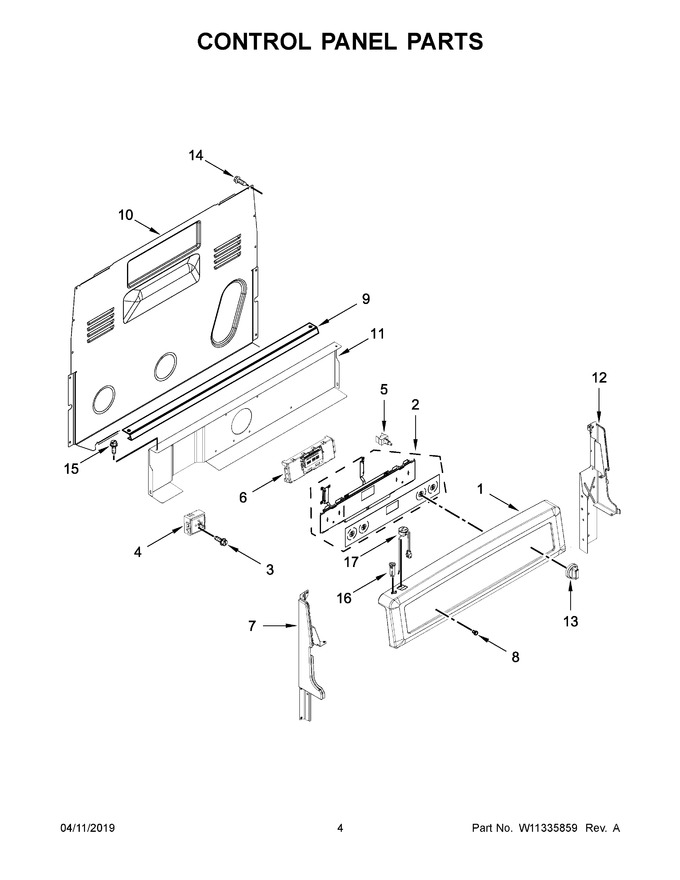

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11336702 | Console (black) (Replaces: W11257152) |
|
- | |||||
| 2 | W10884363 | Assembly, Active Overlay (black) |
|
$ 421.84 | |||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 7.55 | ||||
| 4 | W10857622 | Switch, Infinite (left Front & Right Front) (Replaces: W10437092) |
|
Immediately | $ 211.69 | ||||
| 5 | WP8523265 | Light, Indicator (125v) (Replaces: 8523265) |
|
Immediately | $ 86.31 | ||||
| 6 | WPW10340323 | Control (mrc) (Replaces: W10340323) |
|
Immediately | $ 389.59 | ||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
$ 153.83 | |||||
| 8 | WP3196068 | Lens, Indicator (Replaces: 3196068) |
|
Immediately | $ 6.26 | ||||
| 9 | W10525121 | Bracket, Console Mounting |
|
$ 98.85 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 219.04 | |||||
| 11 | W10134247 | Shield, Heat |
|
Immediately | $ 358.82 | ||||
| 12 | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
$ 45.17 | |||||
| 13 | W11084052 | Knob (stainless) (Replaces: W10858252) |
|
Immediately | $ 83.54 | ||||
| 14 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.72 | ||||
| 15 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 14.72 | ||||
| 16 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 53.81 | ||||
| 17 | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 18.47 | ||||
| 4A | W10917724 | Switch, Infinite (left Rear) (Replaces: W10437094) |
|
Immediately | $ 129.35 | ||||
| 4B | W10911303 | Switch, Infinite (right Rear) (Replaces: W10578768) |
|
Immediately | $ 104.64 |
