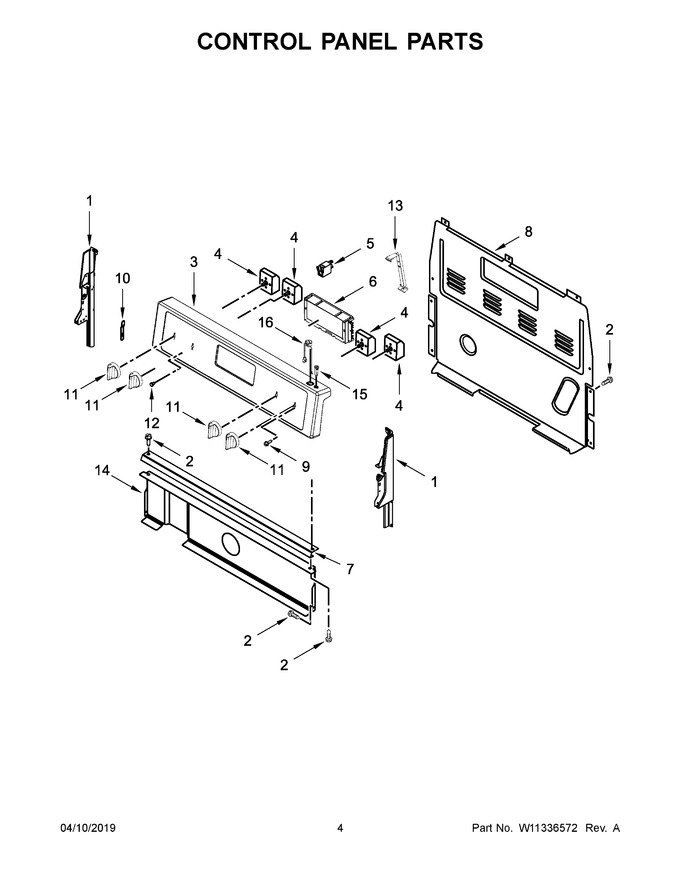

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W11130372)				$ 153.83
2	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
3	W11252146		Panel, Console (stainless)   (Replaces: W11135454)				$ 482.64
4	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 69.51
5	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 86.31
6	W11122536		Control, Electric (lcc 190) (stainless)   (Replaces: W10887921)			Immediately	$ 502.99
7	W10525121		Bracket, Console Mounting				$ 98.85
8	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 219.04
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 7.55
10	3196200		Clip, Spring				$ 10.45
11	W10836470		Assembly, Control Knob (black)   (Replaces: W10676213)			Immediately	$ 38.09
12	WP3196068		Lens, Indicator   (Replaces: 3196068)			Immediately	$ 6.26
13	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 84.81
14	W10134247		Shield, Heat			Immediately	$ 358.82
15	WP9757602		Breaker, Circuit (black)   (Replaces: 9757602)			Immediately	$ 53.81
16	W10861164		Receptacle, Fused (black)   (Replaces: W10749729)			Immediately	$ 18.47
1A	W11219665		Endcap (black (right))   (Replaces: W11130379)				$ 45.17
4A	WP3149400		Switch, Infinite (orange) (left Front And Right Rear)   (Replaces: 3148954)			Immediately	$ 90.51
