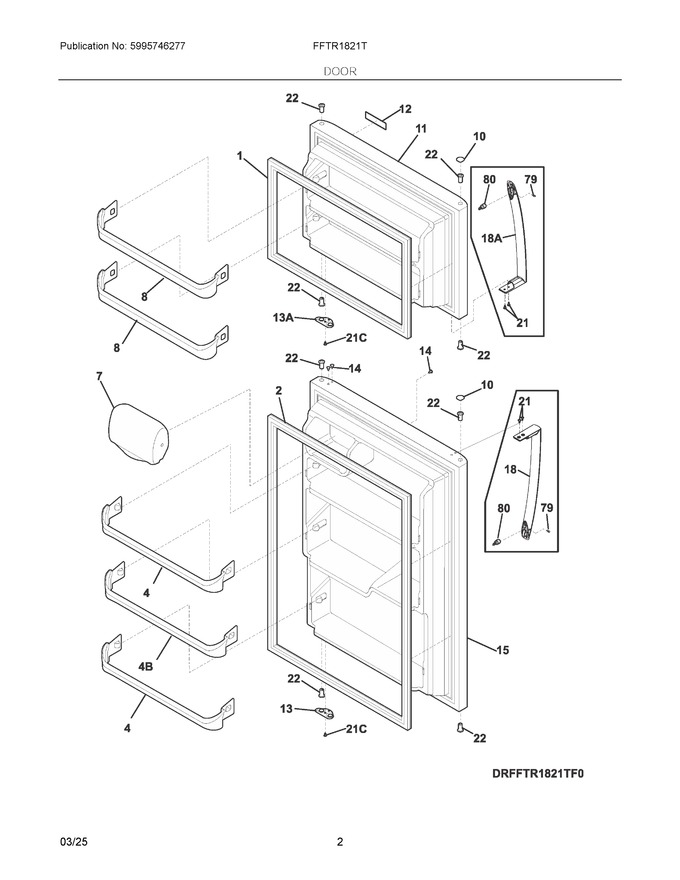

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door, Black, Magnetic			Immediately	$ 219.58
4	240534901		Rack-door			Immediately	$ 52.25
8	240534801		Rack-door			Immediately	$ 55.13
10	240381303		Button, Plug, Black, Hinge Brg Hole				$ 77.52
11	807460041		Freezer Door, Complete, Black Stainless				$ 424.22
12	5304510903		Badge, Frigidaire, Black Stainless				$ 56.46
13	240312422		Door Stop, Black, Ref				$ 16.85
14	240494003		Button, Plug, Black				$ 20.22
14	240494001		Button, Plug, White			Immediately	$ 20.22
15	807460161		Refrigerator Door, Complete, Black Stainless				$ 318.89
18	5304511130		Handle, Door, Dark Stainless, Ref Rhs, With Set Screw				$ 228.35
21	240383407		Screw, Truss Hd Quad, 10 X 16, Black   (Replaces: 240383408)				$ 14.18
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 8.43
13A	240312415		Door Stop, Black, Frzr				$ 23.63
18A	5304511131		Handle, Door, Dark Stainless, Frz Rhs, With Set Screw		Appelez-nous	-
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
2A	242193212		Gasket-refr Door, Black, Magnetic			Immediately	$ 213.18
4BA	240534701		Rack-door, 4b			Immediately	$ 32.00
79A	218755405		Screw, Set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
7B	240337712		Door-dairy			Immediately	$ 40.45
80A	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
NI	241601001		Wrench, Allen		Appelez-nous	-
NI	5304508804		Touch Up Paint, Pen, Black Stainless		Appelez-nous	-
