01 - Cover Sheet
02 - Backguard

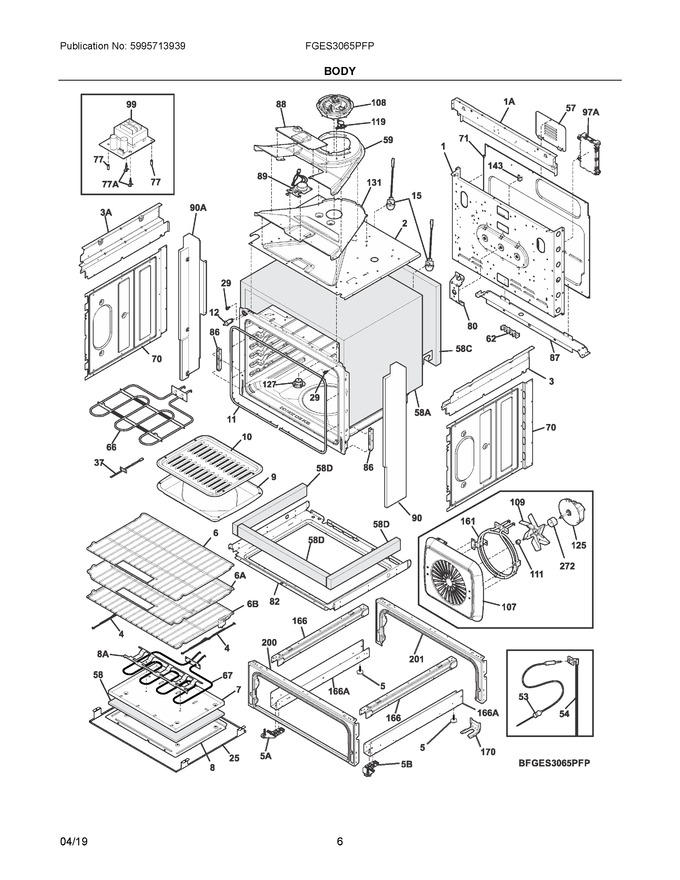

03 - Body
04 - Top/drawer
05 - Door
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 139017308 | Panel, Main Back |
|
- | |||||
| 2 | 139028100 | Shield, Insulation, Top |
|
- | |||||
| 3 | 318225230 | Panel, Bodyside, Upper Rh |
|
- | |||||
| 4 | 318927600 | Support, Auto Rack, (2) |
|
$ 23.25 | |||||
| 5 | 316498903 | Leveling Leg |
|
$ 13.48 | |||||
| 6 | 5304514983 | Rack, Oven, W/handle |
|
$ 137.58 | |||||
| 7 | 318297303 | Box, Bake Element |
|
$ 139.82 | |||||
| 8 | 318359500 | Panel, Service |
|
$ 155.66 | |||||
| 9 | 316081900 | Pan, Broileroptional Access0ry |
|
$ 65.89 | |||||
| 10 | 316082000 | Insert, Broiler Panoptional Access0ry |
|
$ 68.85 | |||||
| 11 | 807545502 | Seal, Oven Door, Gray |
|
$ 155.93 | |||||
| 12 | 808136601 | Switch, Light, Door (Replaces: 318394802) |
|
Immediately | $ 48.93 | ||||
| 15 | 5304528790 | Lamp Assembly, Round, Halogen, W/lens, W/bulb (Replaces: 139009000) |
|
Immediately | $ 22.84 | ||||
| 25 | 5304500181 | Shield, Heat, Storage |
|
- | |||||
| 29 | 316517600 | Bumper, Front, Main |
|
$ 13.39 | |||||
| 37 | 5304504897 | Sensor, Oven Temp Probe |
|
Immediately | $ 53.48 | ||||
| 53 | 5304504202 | Probe, Meat Temp, Red (Replaces: 5304514885) |
|
Immediately | $ 117.99 | ||||
| 54 | 5304517721 | Receptacle Assy, Meat Probe |
|
$ 80.33 | |||||
| 57 | 316283600 | Cover, Access |
|
$ 13.89 | |||||
| 58 | 318294912 | Insullation, Bake Element |
|
$ 107.97 | |||||
| 59 | 139027600 | Duct, Cooling Fan, Upper |
|
$ 95.29 | |||||
| 62 | 5303935061 | Terminal Block Kit |
|
- | |||||
| 66 | 5304521498 | Element, Broil, 3400w, 6 Pass |
|
Immediately | $ 96.90 | ||||
| 67 | 5304521880 | Element, Bake, 2500w, 8 Pass (Replaces: 139026700) |
|
Immediately | $ 127.74 | ||||
| 70 | 139000601 | Shield, Insulation, Sides, (2) |
|
$ 80.05 | |||||
| 71 | 139014001 | Shield, Rear Wall, Lower |
|
$ 70.88 | |||||
| 77 | 316247900 | Spacer, Power Board |
|
$ 49.61 | |||||
| 80 | 139021101 | Bracket, Support, Chassis/fan |
|
$ 16.54 | |||||
| 82 | 139008201 | Shield, Insulation, Lower |
|
- | |||||
| 86 | 318561100 | Receptacle, Hinge, (2) |
|
$ 23.59 | |||||
| 87 | 139020102 | Bracket, Cable Mtg. |
|
- | |||||
| 88 | 5304506964 | Cover, Latch Motor |
|
$ 26.78 | |||||
| 89 | 5304533539 | Motor, Latch Assembly (Replaces: 139078302) |
|
$ 43.05 | |||||
| 90 | 5304511889 | Panel, Filler, Black, Rh |
|
$ 82.69 | |||||
| 99 | 316435703 | Board, Power Supply |
|
Immediately | $ 438.31 | ||||
| 107 | 139013903 | Cover, Convection Fan |
|
$ 52.07 | |||||
| 108 | 318575612 | Motor Assembly, Cooling Fan |
|
Immediately | $ 218.45 | ||||
| 109 | 318398302 | Blade, Fan, Convection (Replaces: 139009100) |
|
Immediately | $ 32.34 | ||||
| 111 | 316136600 | Nut, Fan Retainer |
|
Immediately | $ 21.26 | ||||
| 119 | 807144901 | Thermostat, Safety, 110c Deg |
|
$ 64.88 | |||||
| 125 | 139008500 | Motor, Convection Fan |
|
Immediately | $ 240.25 | ||||
| 127 | 5304538693 | Tube Assembly, Vent, W/catalyst (Replaces: 139042600) |
|
Immediately | $ 11.14 | ||||
| 131 | 139027700 | Duct, Cooling Fan, Lower |
|
$ 81.11 | |||||
| 143 | 318172904 | Bracket, Wire Support |
|
- | |||||
| 161 | 8581390065036 | Element, Convection, 2500w (Replaces: 139006500) |
|
$ 52.92 | |||||
| 166 | 318298410 | Bracket, Base Support, (2) |
|
$ 84.26 | |||||
| 170 | 5304486410 | Kit, Anti Tip, W/brkt & Instru |
|
$ 176.11 | |||||
| 200 | 318298232 | Frame, Drawer, Black, Front |
|
$ 95.13 | |||||
| 201 | 318298233 | Frame, Drawer, Black, Rear |
|
$ 50.40 | |||||
| 272 | 139021700 | Tube, Convection Fan |
|
$ 19.69 | |||||
| 166A | 5304511884 | Bracket, Base Support, Lower |
|
$ 73.31 | |||||
| 1A | 139004600 | Panel, Main Back, Upper |
|
$ 75.13 | |||||
| 3A | 318225231 | Panel, Bodyside, Upper Lh |
|
- | |||||
| 58A | 139001700 | Insulation, Oven Wrapper, Top & Sides |
|
- | |||||
| 58C | 139020202 | Insulation, Oven Back |
|
$ 44.46 | |||||
| 58D | 139020301 | Insulation, Sides, (2) |
|
- | |||||
| 5A | 5304511891 | Leg Assembly, Leveling, Lh, Front |
|
$ 22.05 | |||||
| 5B | 5304511892 | Leg Assembly, Leveling, Rh, Front |
|
$ 22.05 | |||||
| 6A | 139012400 | Rack, Oven, Offset, W/handle |
|
$ 181.34 | |||||
| 6B | 139013101 | Rack, Auto |
|
$ 176.96 | |||||
| 77A | 316114100 | Spacer |
|
$ 67.73 | |||||
| 8A | 318313601 | Bracket, Bake Element |
|
$ 71.45 | |||||
| 90A | 5304511890 | Panel, Filler, Black, Lh |
|
$ 90.16 | |||||
| 97A | 316473503 | Board, Esec-20, 7 Relay, W/chassis |
|
$ 315.84 | |||||
| NI | 316021109 | Screw, Hex Head Cup Pt, 8-18 X 0.375, Black (Replaces: 316021105) |
|
Immediately | $ 30.55 | ||||
| NI | 316021109 | Screw, 8-18 X 0.5, Chrome |
|
Immediately | $ 30.55 | ||||
| NI | 318531701 | Spacer |
|
$ 13.39 | |||||
| NI | 5304520757 | Harness, Wiring, Main |
|
$ 220.50 | |||||
| NI | 5304517285 | Harness Assembly, Filter, Electrical, W/capacitors |
|
$ 42.98 | |||||
| NI | 5304517731 | Harness, Wiring, Hoc To, Esec/power Brd |
|
$ 40.16 | |||||
| NI | 318235301 | Connector Assy., W/3 Lugs & Nuts, W/instructions |
|
$ 32.29 | |||||
| NIA | 807597603 | Screw, Self Tapping, 8-18 X 11/32, (4) |
|
$ 10.24 | |||||
| NIA | 318147430 | Bumper, (2) |
|
$ 21.06 | |||||
| NIA | 316001017 | Screw, Ground Wire (Replaces: 316001003) |
|
$ 3.37 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 15.75 | |||||
| NIA | 318946400 | Bulb, Halogen, G9, 25w, 120v (Replaces: 318946500) |
|
Immediately | $ 54.80 | ||||
| NIA | 5303289910 | Screw, Truss Sqdr, 8a X 1", 62* |
|
$ 6.30 | |||||
| NIB | 316205500 | Nut, Hex Flange, 3/8 10-32 |
|
$ 12.60 | |||||
| NIC | 318264200 | Plate, Grounding Strap |
|
$ 26.12 |
