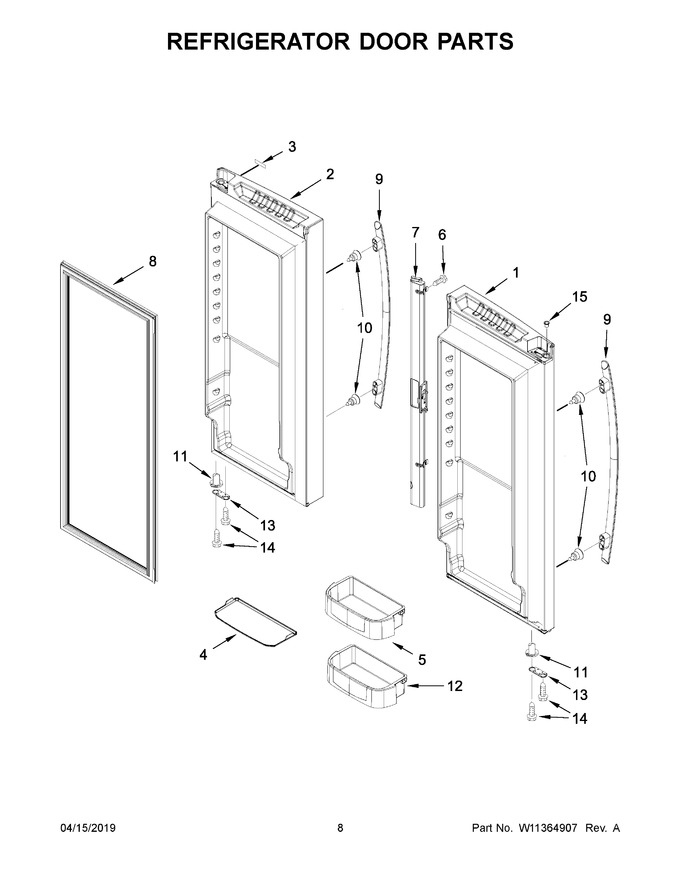

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 13094747SQ | Door, Left (stainless) (Replaces: 13094747S) |
|
$ 1,359.60 | |||||
| 2 | 13094739SQ | Door, Right (stainless) (Replaces: 13094739S) |
|
$ 1,042.15 | |||||
| 3 | WPW10214168 | Badge, Nameplate (Replaces: W10190716) |
|
$ 85.95 | |||||
| 4 | W11510594 | Gripper, Gallon (Replaces: W10450019) |
|
$ 20.01 | |||||
| 5 | WPW10119841 | Bucket, Medium (Replaces: W10119841) |
|
Immediately | $ 90.23 | ||||
| 6 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 7 | W11177238 | Mullion, Door (grey) (Replaces: W10153704) |
|
Immediately | $ 197.70 | ||||
| 8 | W10830046 | Gasket, Door (grey) |
|
Immediately | $ 215.42 | ||||
| 9 | WPW10298244 | Handle, Door (stainless) (Replaces: W10298244) |
|
$ 327.03 | |||||
| 10 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 11 | WP12028505AP | Closure, Door (grey) (Replaces: 12028505AP) |
|
Immediately | $ 61.46 | ||||
| 12 | WPW10119846 | Bucket, Gallon (Replaces: W10119846) |
|
Immediately | $ 81.84 | ||||
| 13 | WPW10120097 | Stop, Door (grey) (Replaces: W10120097) |
|
$ 8.80 | |||||
| 14 | WP489474 | Screw (Replaces: 12990519) |
|
Immediately | $ 8.55 | ||||
| 15 | 12996601 | Clip, Bushing |
|
$ 10.05 | |||||
| 4A | W11510593 | Gripper, Medium (Replaces: W10450018) |
|
Immediately | $ 17.43 |
