SELECT A DIAGRAM

01 - Cover Sheet

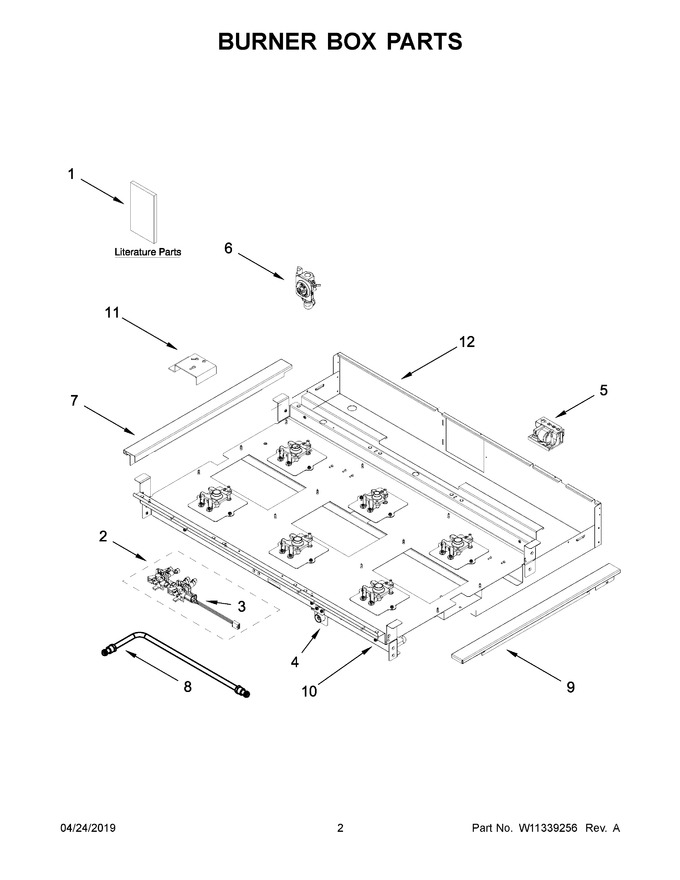

02 - Burner Box Parts


03 - Cooktop And Burner Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11114328		Guide, Use And Care		Appelez-nous	-
2	W11338090		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W11183724)			Immediately	$ 441.15
3	W11320016		Switch, Harness   (Replaces: W11106300)			Immediately	$ 270.82
4	W11121199		Bracket, Manifold		Appelez-nous	-
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
7	W11339740		Main Trim, Left   (Replaces: W11047750)			Immediately	$ 177.07
8	W11339379		Tube, Manifold Supply (left)   (Replaces: W10892347)				$ 179.47
9	W11339741		Main Trim, Right   (Replaces: W11047752)			Immediately	$ 177.07
10	N/P		Assembly, Burner Box (not Serviced)		Appelez-nous	-
11	8285790		Bracket, Mounting Orifice				$ 85.85
12	N/P		Box, Burner (not Serviced)		Appelez-nous	-
1A	W11110989		Instructions, Installation		Appelez-nous	-
1B	W11266585		Diagram, Wiring (cooktop)		Appelez-nous	-
1C	W11266565		Sheet, Tech		Appelez-nous	-
2A	W11333176		Assembly, Valve Manifold (center Front And Center Rear)   (Replaces: W10893062)			Immediately	$ 450.21
2B	W11333175		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W10893053)				$ 472.29
8A	W11339377		Tube, Manifold Supply (center)   (Replaces: W10892445)		Appelez-nous	-
8B	W11337056		Tube, Manifold Supply (right)   (Replaces: W10892450)				$ 177.42
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 47.84
NI	W10624584		Cord, Power				$ 189.57
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11213527		Harness, Cooktop				$ 195.94
NI	W11038934		Harness, Jumper				$ 186.90

    View Diagram in Separate Window       Print Part List
