SELECT A DIAGRAM

01 - Cover Sheet

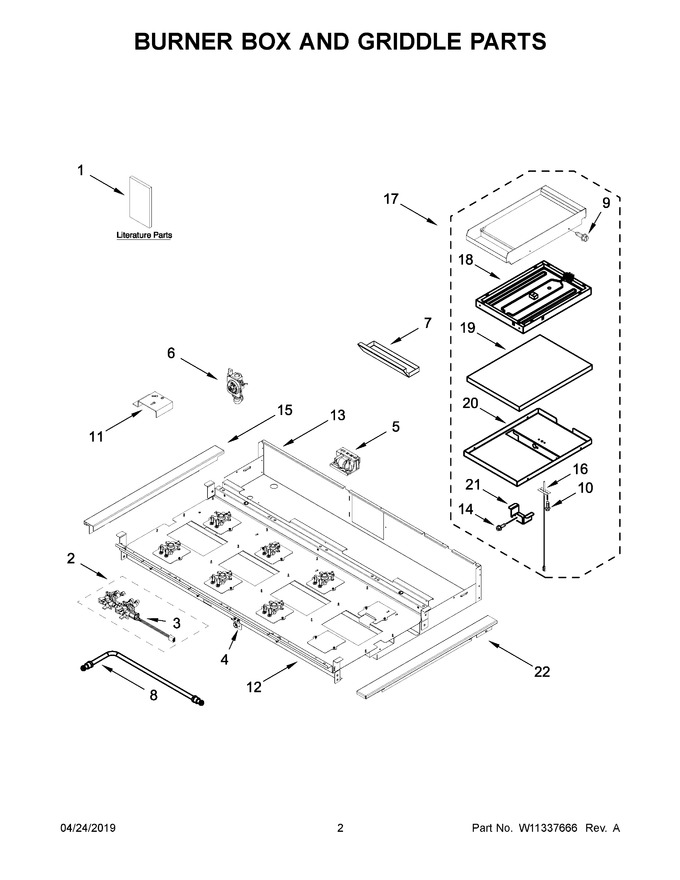

02 - Burner Box And Griddle Parts


03 - Cooktop, Burner, And Griddle Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11114328		Guide, Use And Care		Appelez-nous	-
2	W11338090		Assembly, Valve Manifold (left Front And Left Rear)   (Replaces: W11183724)			Immediately	$ 441.15
3	W11320016		Switch, Harness   (Replaces: W11106300)			Immediately	$ 270.82
4	W11121199		Bracket, Manifold		Appelez-nous	-
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
7	W10276497		Tray, Griddle Drip				$ 404.03
8	W11339379		Tube, Manifold Supply (left)   (Replaces: W10892347)				$ 179.47
9	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 14.72
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
11	8285790		Bracket, Mounting Orifice				$ 85.85
12	N/P		Assembly, Burner Box (not Serviced)		Appelez-nous	-
13	N/P		Box, Burner (not Serviced)		Appelez-nous	-
14	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
15	W11337059		Main Trim, Left   (Replaces: W11047749)				$ 177.07
16	W11319618		Sensor, Griddle   (Replaces: W10891584)				$ 228.48
17	W11602621		Assembly, Griddle Module   (Replaces: W10891745)			Immediately	$ 1,547.02
18	W11319602		Element, Griddle   (Replaces: W10891698)				$ 369.48
19	W11319228		Insulation, Griddle   (Replaces: W11121383)		Appelez-nous	-
20	W11330430		Tray, Griddle Insulation		Appelez-nous	-
21	W11319226		Bracket, Griddle-rtd   (Replaces: W11121384)		Appelez-nous	-
22	W11337061		Main Trim, Right   (Replaces: W11047751)				$ 177.37
1A	W11110989		Instructions, Installation		Appelez-nous	-
1B	W11266584		Diagram, Wiring (cooktop)		Appelez-nous	-
1C	W11266565		Sheet, Tech		Appelez-nous	-
2A	W11333176		Assembly, Valve Manifold (left Center Front And Left Center Rear)   (Replaces: W10893062)			Immediately	$ 450.21
2B	W11333175		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10893053)			Immediately	$ 472.29
8A	W11339377		Tube, Manifold Supply (left Center)   (Replaces: W10892445)		Appelez-nous	-
8B	W11337056		Tube, Manifold Supply (right Center)   (Replaces: W10892450)				$ 177.42
NI	4450800		Screw, Grounding				$ 13.47
NI	W11317787		Harness, Griddle   (Replaces: W10903727)				$ 116.76
NI	W11317788		Harness, Cooktop   (Replaces: W11200329)			Immediately	$ 206.07
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 47.84
NI	W10624584		Cord, Power				$ 189.57
NI	W11038934		Harness, Jumper				$ 186.90

    View Diagram in Separate Window       Print Part List
