01 - Cover Sheet
02 - Burner Box And Grill Parts

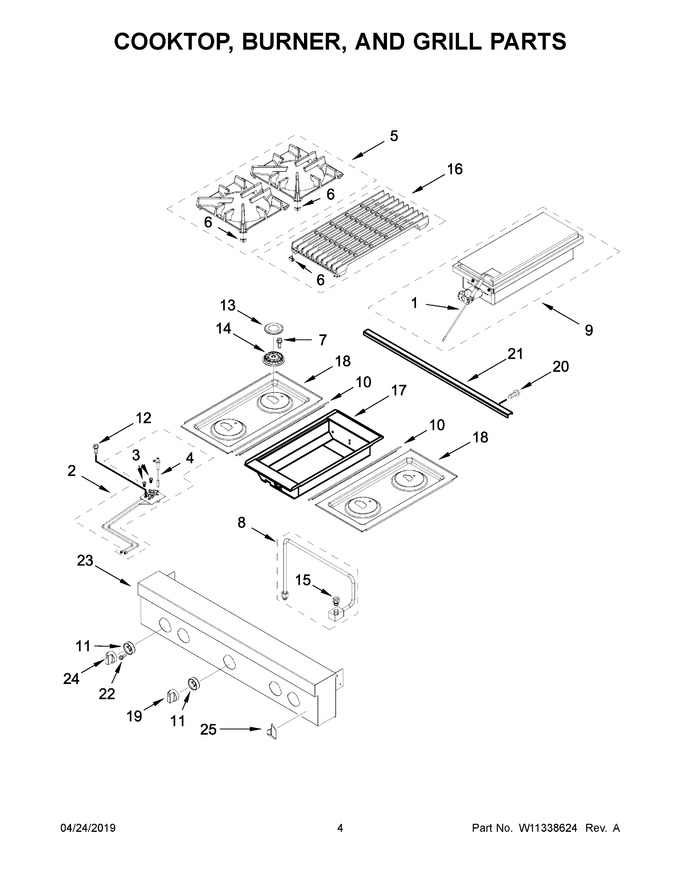

03 - Cooktop, Burner, And Grill Parts
04 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11328571 | Electrode, Grill (Replaces: W11174598) |
|
- | |||||
| 2 | W11337062 | Assembly, Orifice Holder (left Front And Right Front) (Replaces: W10892771) |
|
Immediately | $ 128.25 | ||||
| 3 | W11643164 | Orifice, Main (17.4k) (left Front, Left Rear, Right Front) (Replaces: W10892422) |
|
Immediately | $ 60.97 | ||||
| 4 | W11580024 | Igniter (left Front, Left Rear, Right Front) (Replaces: W11238758) |
|
Immediately | $ 23.66 | ||||
| 5 | W11515370 | Assembly, Grate (black (set Of 2)) (Replaces: W11179862) |
|
$ 394.33 | |||||
| 6 | W11550692 | Bumper, Grate (Replaces: W11042504) |
|
Immediately | $ 12.57 | ||||
| 7 | W11447718 | Screw (Replaces: W11196257) |
|
Immediately | $ 14.74 | ||||
| 8 | W11197930 | Assembly, Grill Orifice Holder (center) |
|
- | |||||
| 9 | W11328568 | Assembly, Grill Burner (Replaces: W11120976) |
|
$ 848.94 | |||||
| 10 | W10291193 | Trim, L-strip |
|
- | |||||
| 11 | W11316873 | Bezel, Cooktop (Replaces: W11090283) |
|
Immediately | $ 49.29 | ||||
| 12 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 13 | W11328971 | Cap, Burner (black (set Of 4)) (Replaces: W11121391) |
|
$ 173.40 | |||||
| 14 | W11319683 | Spreader, Flame (high) (left Front, Left Rear, Right Front) (Replaces: W10891987) |
|
Immediately | $ 250.69 | ||||
| 15 | W10892423 | Orifice, Grill (18k) (center) |
|
- | |||||
| 16 | W11515378 | Assembly, Grill Grate (Replaces: W11179894) |
|
- | |||||
| 17 | W11328566 | Assembly, Grill Box (Replaces: W11174429) |
|
- | |||||
| 18 | W11316696 | Panel, Cooktop (black (left)) (Replaces: W10803515) |
|
$ 513.23 | |||||
| 19 | W11620700 | Knob, Grill (stainless) (Replaces: W10894925) |
|
- | |||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 14.72 | ||||
| 21 | W11355760 | Trim, Island |
|
$ 246.15 | |||||
| 22 | W11674763 | Screw (Replaces: W10919387) |
|
$ 14.76 | |||||
| 23 | W11339744 | Panel, Console (Replaces: W11253780) |
|
- | |||||
| 24 | W11574368 | Knob, Burner (stainless) (Replaces: W10882958) |
|
Immediately | $ 92.43 | ||||
| 25 | W11700312 | Badge (stainless) (Replaces: W11238658) |
|
Immediately | $ 116.54 | ||||
| 14A | W11319673 | Spreader, Flame (low) (right Rear) (Replaces: W10892022) |
|
Immediately | $ 229.46 | ||||
| 18A | W11334155 | Panel, Cooktop (black (right)) (Replaces: W10804371) |
|
$ 491.89 | |||||
| 2A | W11337063 | Assembly, Orifice Holder (left Rear) (Replaces: W10892486) |
|
Immediately | $ 128.27 | ||||
| 2B | W11337065 | Assembly, Orifice Holder (right Rear) (Replaces: W10892772) |
|
$ 128.73 | |||||
| 3A | W10892440 | Orifice, Main (7.2k) (right Rear) |
|
$ 99.86 | |||||
| 3B | W11661909 | Orifice, Simmer (2.6k) (left Front, Left Rear, Right Front) (Replaces: W10892435) |
|
Immediately | $ 74.14 | ||||
| 3C | W10892429 | Orifice, Simmer (2.0k) (right Rear) |
|
$ 99.86 | |||||
| 4A | W11238756 | Igniter (right Rear) |
|
Immediately | $ 67.96 |
