01 - Cover Sheet

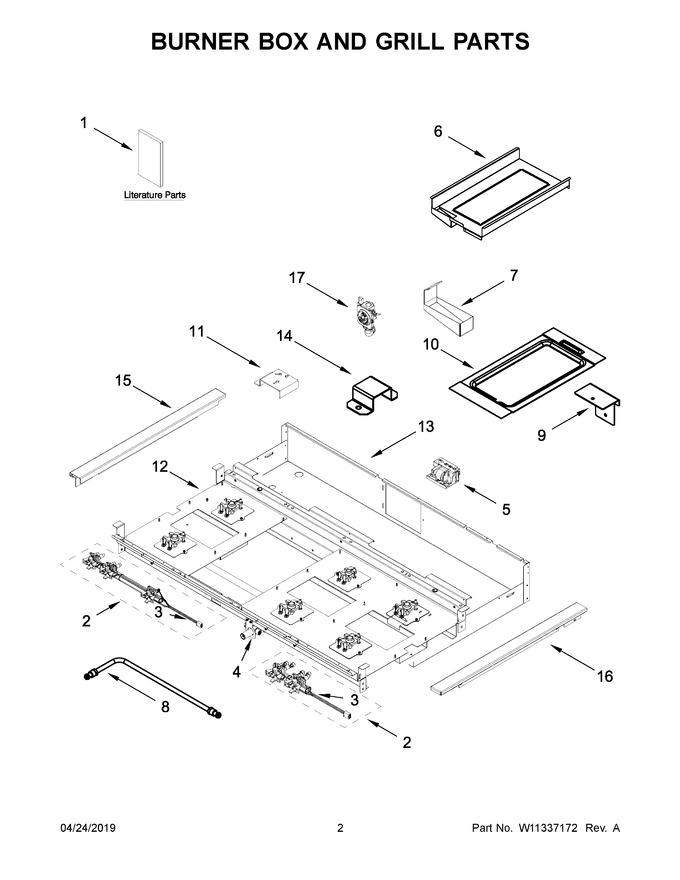

02 - Burner Box And Grill Parts


03 - Cooktop, Burner, And Grill Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11114328		Guide, Use And Care		Appelez-nous	-
2	W11336703		Assembly, Valve Manifold (left Front, Left Rear, And Grill)   (Replaces: W10893056)				$ 590.14
3	W11106304		Switch, Harness (left Front, Left Rear, And Grill)		Appelez-nous	-
4	W11121199		Bracket, Manifold		Appelez-nous	-
5	W11818690		Module, Spark   (Replaces: W11121317)			Immediately	$ 81.60
6	W11328011		Capture, Grill Grease   (Replaces: W11120957)		Appelez-nous	-
7	W11328012		Tray, Grill Drip   (Replaces: W11174414)		Appelez-nous	-
8	W11338091		Tube, Manifold Supply (left)   (Replaces: W10892476)		Appelez-nous	-
9	W11285353		Bracket, Grill Grease Capture		Appelez-nous	-
10	W11328372		Deflector, Grill Heat   (Replaces: W11120965)		Appelez-nous	-
11	8285790		Bracket, Mounting Orifice				$ 85.85
12	N/P		Assembly, Burner Box (not Serviced)		Appelez-nous	-
13	N/P		Box, Burner (not Serviced)		Appelez-nous	-
14	W11174418		Bracket, Grill Orifice Holder		Appelez-nous	-
15	W11337059		Main Trim, Left   (Replaces: W11047749)				$ 177.07
16	W11337061		Main Trim, Right   (Replaces: W11047751)				$ 177.37
17	W11106948		Regulator, Pressure   (Replaces: W10449140)			Immediately	$ 238.90
1A	W11110989		Instructions, Installation		Appelez-nous	-
1B	W11266584		Diagram, Wiring (cooktop)		Appelez-nous	-
1C	W11266565		Sheet, Tech		Appelez-nous	-
2A	W11333176		Assembly, Valve Manifold (right Center Front And Right Center Rear)   (Replaces: W10893062)			Immediately	$ 450.21
2B	W11338090		Assembly, Valve Manifold (right Front And Right Rear)   (Replaces: W11183724)			Immediately	$ 441.15
3A	W11320016		Switch, Harness (right Center Front, Right Center Rear, Right Front, Right Rear)   (Replaces: W11106300)			Immediately	$ 270.82
8A	W11339377		Tube, Manifold Supply (right Center)   (Replaces: W10892445)		Appelez-nous	-
8B	W11339379		Tube, Manifold Supply (right)   (Replaces: W10892347)				$ 179.47
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W11428599		Kit, Lp Conversion   (Replaces: W11238041)			Immediately	$ 47.84
NI	W11038934		Harness, Jumper				$ 186.90
NI	W10624584		Cord, Power				$ 189.57
NI	4450800		Screw, Grounding				$ 13.47
NI	W11200330		Harness, Cooktop		Appelez-nous	-
