SELECT A DIAGRAM

01 - Cover Sheet


02 - Burner Box And Grill Parts

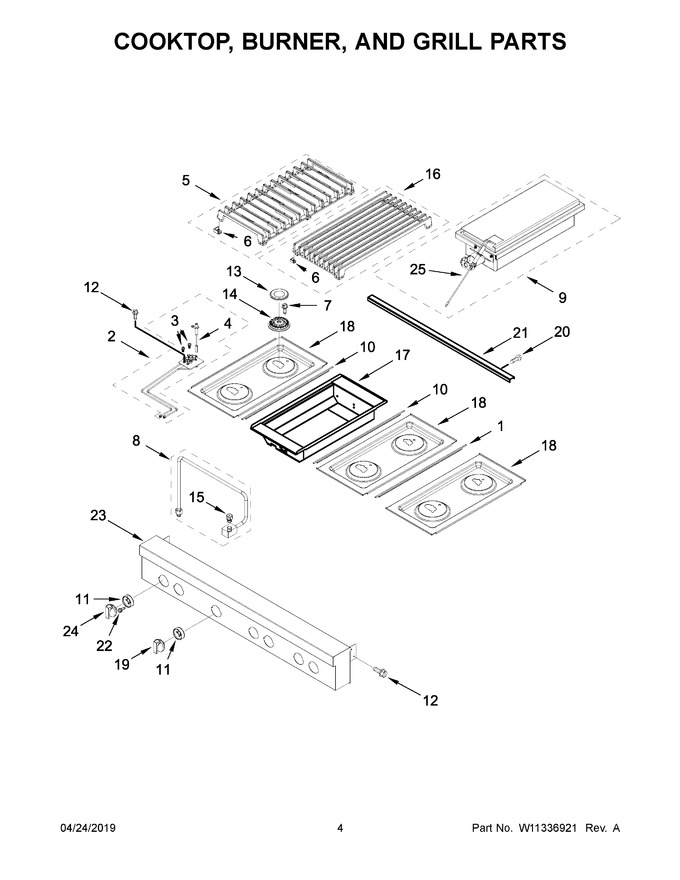

03 - Cooktop, Burner, And Grill Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10271524		Trim, T-strip (black)				$ 212.34
2	W11337062		Assembly, Orifice Holder (left Front, Right Center Front, Right Front)   (Replaces: W10892771)			Immediately	$ 128.25
3	W11643164		Orifice, Main (17.4k) (all But Right Center Rear)   (Replaces: W10892422)			Immediately	$ 60.97
4	W11580024		Igniter (all But Right Center Rear)   (Replaces: W11238758)			Immediately	$ 23.66
5	W11516449		Assembly, Grate (black) (left)   (Replaces: W11172289)				$ 265.06
6	W11550692		Bumper, Grate   (Replaces: W11042504)			Immediately	$ 12.57
7	W11447718		Screw   (Replaces: W11196257)			Immediately	$ 14.74
8	W11197930		Assembly, Grill Orifice Holder (left Center)		Appelez-nous	-
9	W11328568		Assembly, Grill Burner   (Replaces: W11120976)				$ 848.94
10	W10291193		Trim, L-strip		Appelez-nous	-
11	W11317889		Bezel, Cooktop   (Replaces: W11090284)				$ 106.87
12	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 8.25
13	W11319224		Cap, Burner (black (set Of 6))   (Replaces: W11121392)			Immediately	$ 252.20
14	W11319683		Spreader, Flame (high) (all But Right Center Rear)   (Replaces: W10891987)			Immediately	$ 250.69
15	W10892423		Orifice, Grill (18k) (left Center)		Appelez-nous	-
16	W11516484		Assembly, Grill Grate   (Replaces: W11172682)				$ 379.68
17	W11328566		Assembly, Grill Box   (Replaces: W11174429)		Appelez-nous	-
18	W11316700		Panel, Cooktop (black) (left)   (Replaces: W11038237)				$ 502.01
19	W11328010		Knob, Grill (stainless)   (Replaces: W10894926)				$ 339.23
20	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
21	W11355761		Trim, Island		Appelez-nous	-
22	W11674763		Screw   (Replaces: W10919387)				$ 14.76
23	W11339381		Panel, Console   (Replaces: W11253794)		Appelez-nous	-
24	W11317537		Knob, Burner (stainless)   (Replaces: W10887596)			Immediately	$ 155.66
25	W11328571		Electrode, Grill   (Replaces: W11174598)		Appelez-nous	-
14A	W11319673		Spreader, Flame (low) (right Center Rear)   (Replaces: W10892022)			Immediately	$ 229.46
18A	W11316701		Panel, Cooktop (black) (right Center)   (Replaces: W11038241)				$ 502.01
18B	W11328008		Panel, Cooktop (black) (right)   (Replaces: W11038254)				$ 475.25
2A	W11337063		Assembly, Orifice Holder (left Rear And Right Rear)   (Replaces: W10892486)			Immediately	$ 128.27
2B	W11337065		Assembly, Orifice Holder (right Center Rear)   (Replaces: W10892772)				$ 128.73
3A	W10892440		Orifice, Main (7.2k) (right Center Rear)				$ 99.86
3B	W11661909		Orifice, Simmer (2.6k) (all But Right Center Rear)   (Replaces: W10892435)			Immediately	$ 74.14
3C	W10892429		Orifice, Simmer (2.0k) (right Center Rear)				$ 99.86
4A	W11238756		Igniter (right Center Rear)			Immediately	$ 67.96
5A	W11516481		Assembly, Grate (black) (right Center)   (Replaces: W11172654)				$ 260.06
5B	W11516462		Assembly, Grate (black) (right)   (Replaces: W11172625)				$ 265.07

    View Diagram in Separate Window       Print Part List
