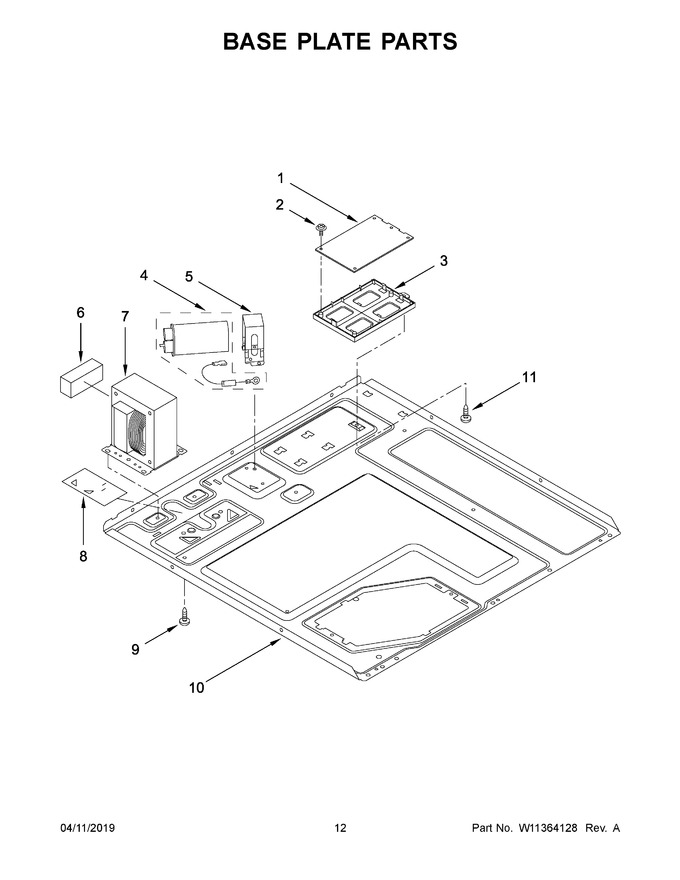

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11486781		Supply. Power   (Replaces: W11199538)				$ 282.79
2	8185369		Screw		Appelez-nous	-
3	W11201745		Holder, Control		Appelez-nous	-
4	W11596133		Capacitor, High Voltage   (Replaces: W11362530)				$ 126.74
5	W11201396		Bracket, Capacitor		Appelez-nous	-
6	W11201794		Cushion, Transformer		Appelez-nous	-
7	W11610132		Transformer, High Voltage   (Replaces: W11199548)				$ 345.31
8	W11202128		Cover, Waveguide				$ 53.53
9	W10278632		Screw		Appelez-nous	-
10	W11201391		Plate, Base		Appelez-nous	-
11	8205835		Screw		Appelez-nous	-
