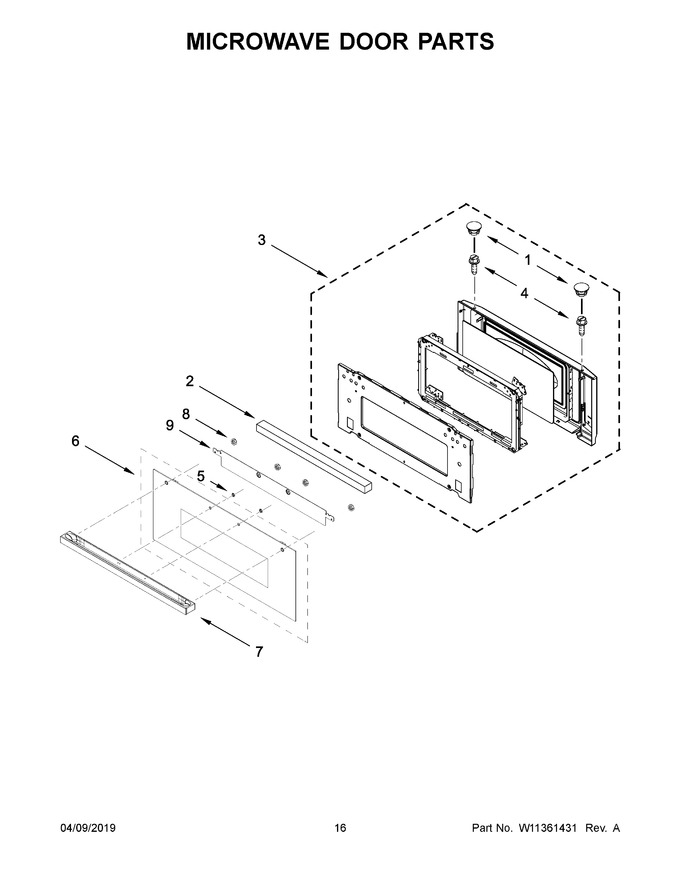

09 - Microwave Door Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	W10359769		Foam, Door Handle				$ 14.76
3	W10737653		Assembly, Inner Door				$ 411.83
4	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
5	W11132942		Spacer, Handle				$ 16.83
6	W11362210		Assembly, Outer Door (stainless)   (Replaces: W11199318)		Appelez-nous	-
7	W11411895		Assembly, Handle (stainless)   (Replaces: W11250936)				$ 1,095.35
8	WP488130		Nut   (Replaces: 488130)				$ 7.32
9	W11316564		Bracket, Mwo Balancing		Appelez-nous	-
