Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11235342 Guide, Use & Care (oven) Appelez-nous -
2 W11123146 Assembly, Speaker   (Replaces: W10568405) Special Order $ 77.08

3 W11448962 Appliance Manager, Copernicus   (Replaces: W11281214) In-Stock Immediately $ 325.47

4 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 17.71

5 W11248652 Blower   (Replaces: W11200129) In-Stock Immediately $ 241.54

6 W10489172 Screw Special Order $ 11.41

7 WPW10260060 Board, Power Supply   (Replaces: W10260060) In-Stock Immediately $ 302.24

8 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 7.82

9 WP7101P434-60 Screw   (Replaces: 7101P434-60) Special Order $ 6.95

10 W10655463 Bracket, Blower (left) Appelez-nous -
11 W10491987 Block, Foam   (Replaces: 4451758) In-Stock Immediately $ 7.75

12 W10655465 Chassis, Back Divider Appelez-nous -
13 W10318158 Chassis, Cover Top Front 30 Appelez-nous -
14 W10588732 Chassis, Cover Top Back 30 Special Order $ 215.10

15 W10655467 Chassis, Combo Side Special Order $ 79.07

16 W11449292 Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W11196776) Special Order $ 1,133.19

17 W10444127 Cover, 30" Compliment Special Order $ 124.50

18 W10566973 Harness, Keypad (left To Center) Special Order $ 78.28

19 W10681157 Cover, Combo Blower Appelez-nous -
20 W10575307 Jumper Harness, Power Supply In-Stock Immediately $ 165.56

21 W10668510 Housing Special Order $ 100.16

22 W10524350 Harness, Keypad (right To Center) Special Order $ 74.49

23 W11197498 Skin, Control Panel (stainless) In-Stock Immediately $ 356.99

10A W10655462 Bracket, Blower (right) Appelez-nous -
1A W11235344 Guide, Use & Care (oven/micro Combo) Appelez-nous -
1B W11235622 Instructions, Installation Appelez-nous -
1C W11284425 Sheet, Tech (oven/micro Combo) Appelez-nous -
1D W11235300 Diagram, Wiring Appelez-nous -
NI 4450800 Screw, Grounding Special Order $ 12.83

NI W11356954 Harness, Fan & Turntable   (Replaces: W10874059) Special Order $ 141.67

NI W11216677 Harness, Main Appelez-nous -
NI N/P Following Parts Not Illustrated Appelez-nous -
NI 4448664 Clamp, Conduit Special Order $ 20.39

NI W11216660 Harness, Signal Appelez-nous -
NI W11218145 Harness, Communication Appelez-nous -
NI W11219538 Harness, Door Latch Special Order $ 86.35

NI W11325605 Jumper Harness, Communication   (Replaces: W11198503) Special Order $ 182.09

NI W11356977 Harness, Cable Tree Assembly   (Replaces: W10889134) Special Order $ 81.02

NI W11226264 Strap, Ground Appelez-nous -
NI W10874060 Harness, Inverter Special Order $ 141.63


    View Diagram in Separate Window     Print Icon   Print Part List

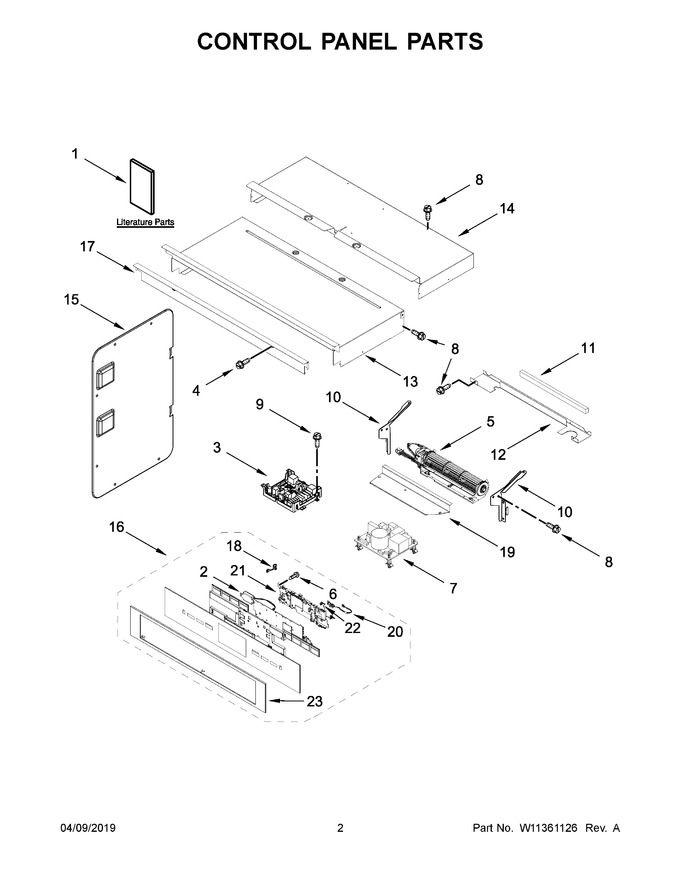

Diagram for JMW2430IL01
