Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11295339 Assembly, Window Pack   (Replaces: W11213479) Special Order $ 347.31

2 W11132942 Spacer, Handle Special Order $ 16.83

3 W11346911 Assembly, Door (stainless)   (Replaces: W11213907) In-Stock Immediately $ 622.69

4 W11313010 Washer   (Replaces: W11184524) Appelez-nous -
5 WP488130 Nut   (Replaces: 488130) Special Order $ 7.32

6 W11220345 Hinge, Door In-Stock Immediately $ 107.21

7 WP3196183 Screw   (Replaces: 3196183) In-Stock Immediately $ 8.18

8 W11411894 Assembly, Handle (stainless)   (Replaces: W11250935) Special Order $ 1,067.98

9 W11325529 Assembly, Glass Cavity   (Replaces: W11220347) Special Order $ 364.42

10 W11676355 Washer, Door   (Replaces: W10319024) In-Stock Immediately $ 14.81

11 WPY706189 Screw   (Replaces: 7101P427-60) In-Stock Immediately $ 7.55

12 W10840861 Spacer   (Replaces: W10517440) Special Order $ 10.37

13 W11690596 Screw With Washer   (Replaces: W10284411) Special Order $ 23.31

14 WPW10549747 Clip, Spring   (Replaces: W10549747) Special Order $ 20.91

15 WPW10581831 Bracket, Door (left)   (Replaces: W10581831) Special Order $ 37.20

16 WPW10581826 Bracket, Door (right)   (Replaces: W10581826) Special Order $ 66.63

17 WPW10517428 Spacer, Vent   (Replaces: W10517428) In-Stock Immediately $ 12.44

18 W11082539 Pad, Vent   (Replaces: W10489273) Special Order $ 122.21

19 W11280091 Vent, Top Metal Special Order $ 146.94

20 W10284278 Rail, Door Side (left) Appelez-nous -
21 W10284279 Rail, Door Side (right) Appelez-nous -

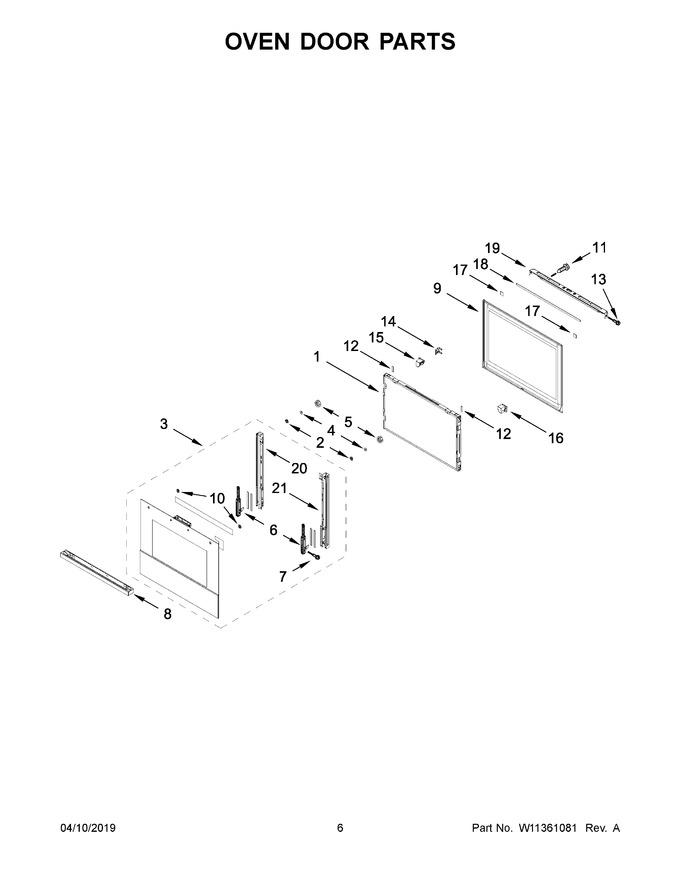

    View Diagram in Separate Window     Print Icon   Print Part List
