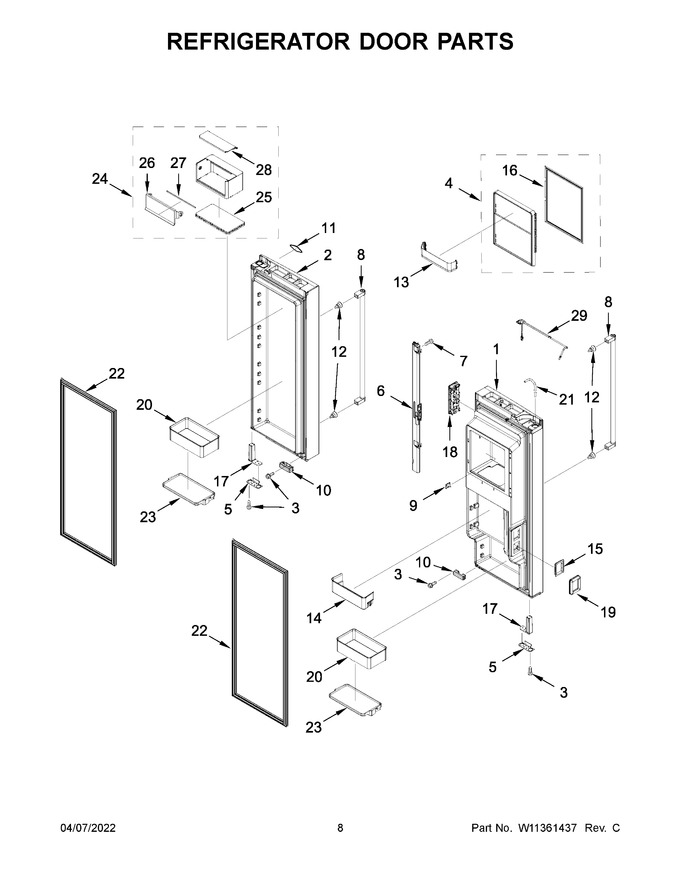

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11254958 | Door, Refrigerator Left Hand (black Stainless (also Order Item # 18)) (Replaces: W11110293) |
|
Immediately | $ 1,023.76 | ||||
| 2 | W10849510 | Door, Refrigerator (right Hand (black Stainless) (Replaces: W10798252) |
|
$ 1,670.94 | |||||
| 3 | WPW10238319 | Screw (Replaces: W10238319) |
|
$ 7.98 | |||||
| 4 | W11594927 | Assembly, Ice Door (Replaces: W11554923) |
|
$ 177.40 | |||||
| 5 | W11243377 | Bracket, Door Stop (Replaces: W10763415) |
|
Immediately | $ 76.11 | ||||
| 6 | W11656921 | Mullion, Door (black) (Replaces: W11034029) |
|
$ 135.83 | |||||
| 7 | W11311945 | Screw (Replaces: 12990204) |
|
$ 14.72 | |||||
| 8 | W11483532 | Handle, Door (stainless) (Replaces: W11339182) |
|
Immediately | $ 178.01 | ||||
| 9 | W11291144 | Switch, Rocker Arm (Replaces: W11035875) |
|
$ 35.43 | |||||
| 10 | W10407187 | Bumper, Door (black) |
|
$ 48.34 | |||||
| 11 | W10909682 | Badge (Replaces: W10518672) |
|
Immediately | $ 76.20 | ||||
| 12 | W11449276 | Screw (Replaces: W11328753) |
|
Immediately | $ 15.45 | ||||
| 13 | W10887799 | Trivet, Ice Compartment Door (Replaces: W10795606) |
|
Immediately | $ 106.65 | ||||
| 14 | W10887800 | Bin, Door (medium) (Replaces: W10806697) |
|
Immediately | $ 86.81 | ||||
| 15 | W10834282 | Retainer, Door Duct |
|
$ 27.78 | |||||
| 16 | W11625086 | Gasket, Ice Door (Replaces: W10853441) |
|
$ 79.87 | |||||
| 17 | W11163783 | Closer, Door (left Hand) (Replaces: W10714907) |
|
Immediately | $ 80.73 | ||||
| 18 | W11330486 | Assembly, User Interface (Replaces: W11227903) |
|
Immediately | $ 323.05 | ||||
| 19 | W11227369 | Gasket, Cooling Duct (Replaces: W10828418) |
|
$ 26.78 | |||||
| 20 | W10887801 | Bin, Door (gallon) (Replaces: W10776705) |
|
$ 124.45 | |||||
| 21 | W10883965 | Tube, Water |
|
$ 129.52 | |||||
| 22 | W10917312 | Gasket, Door (black) |
|
Immediately | $ 327.84 | ||||
| 23 | W11733335 | Trim, Gallon (Replaces: W10823512) |
|
$ 315.65 | |||||
| 24 | W10887802 | Assembly, Utility Bin (Replaces: W10795526) |
|
$ 155.91 | |||||
| 25 | W10795523 | Base, Utility Bin |
|
- | |||||
| 26 | W10803630 | Door, Utility Bin (includes Gasket) |
|
$ 96.03 | |||||
| 27 | W10795525 | Gasket, Utility Bin |
|
$ 42.74 | |||||
| 28 | W10795524 | Lid, Utility Bin |
|
$ 173.29 | |||||
| 29 | W11366500 | Assembly, Fill Tube (icemaker) (Replaces: W10917894) |
|
Immediately | $ 120.12 | ||||
| 10A | W10798308 | Bumper, Door (grey) |
|
$ 26.97 | |||||
| 17A | W11188796 | Closer, Door (right Hand) (Replaces: W10714908) |
|
$ 26.38 | |||||
| 1A | W11254954 | Door, Refrigerator Left Hand (stainless (also Order Item # 18)) (Replaces: W11110292) |
|
Immediately | $ 974.28 | ||||
| 22A | W10917313 | Gasket, Door (grey) |
|
Immediately | $ 196.76 | ||||
| 2A | W10849512 | Door, Refrigerator (stainless) (Replaces: W10831951) |
|
$ 1,365.74 | |||||
| 6A | W11649966 | Mullion, Door (grey) (Replaces: W11034034) |
|
$ 141.79 |
