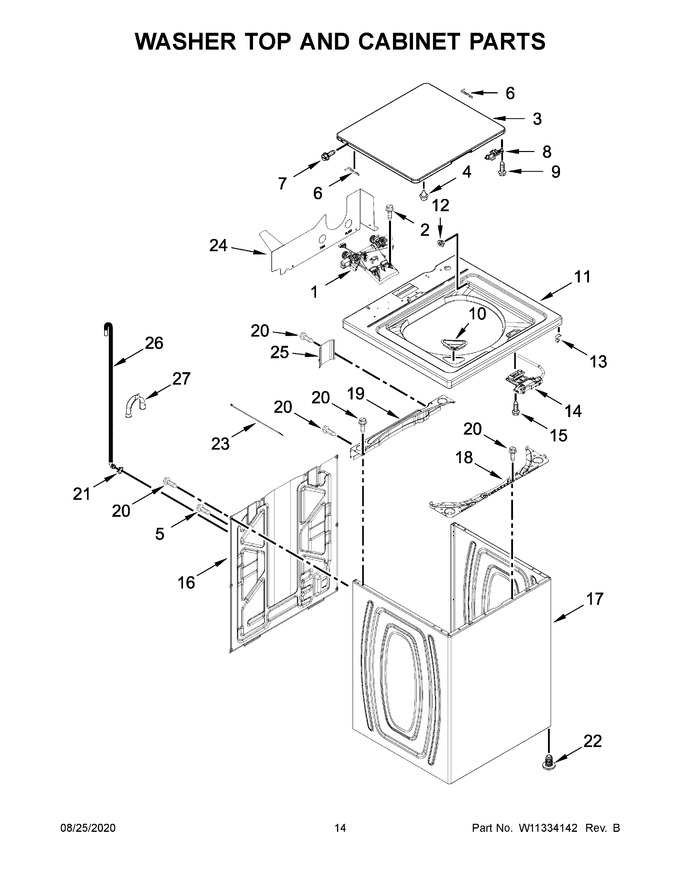

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11222849 | Inlet Assembly, Water (Replaces: W11177399) |
|
Immediately | $ 230.22 | ||||
| 2 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 7.55 | ||||
| 3 | W10860912 | Assembly, Lid And Bumper (white) (Replaces: W10027624) |
|
$ 388.07 | |||||
| 4 | WP9724509 | Bumper (Replaces: 9724509) |
|
Immediately | $ 8.33 | ||||
| 5 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 8.58 | ||||
| 6 | WP91770 | Hinge, Lid (Replaces: 91770) |
|
$ 28.82 | |||||
| 7 | WPW10119828 | Screw (Replaces: W10119872) |
|
Immediately | $ 7.55 | ||||
| 8 | W10837741 | Strike, Lid Lock (white) (Replaces: W10714899) |
|
Immediately | $ 29.66 | ||||
| 9 | WPW10273971 | Screw (Replaces: W10273971) |
|
Immediately | $ 7.55 | ||||
| 10 | WPW10192089 | Dispenser, Bleach (Replaces: W10192089) |
|
Immediately | $ 8.36 | ||||
| 11 | W11176111 | Top (white) (Replaces: W11028798) |
|
$ 410.41 | |||||
| 12 | WP21258 | Bearing, Lid Hinge (Replaces: 21258) |
|
$ 8.01 | |||||
| 13 | WP90016 | Clip, Harness (Replaces: 90016) |
|
$ 11.89 | |||||
| 14 | W11176112 | Latch, Lid Lock Assembly (Replaces: W11028055) |
|
Immediately | $ 259.20 | ||||
| 15 | W11568617 | Screw (Replaces: W10567155) |
|
$ 14.72 | |||||
| 16 | W11486091 | Panel, Rear (Replaces: W10250884) |
|
Immediately | $ 327.72 | ||||
| 17 | W10596395 | Cabinet (white) (Replaces: W10478060) |
|
$ 481.79 | |||||
| 18 | W11695476 | Brace, Cabinet Top - Front (Replaces: W10215098) |
|
$ 79.79 | |||||
| 19 | W11712680 | Channel, Top Rear (Replaces: W10512626) |
|
$ 103.88 | |||||
| 20 | W11685943 | Screw (Replaces: W10660565) |
|
$ 14.97 | |||||
| 21 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 22 | W11735636 | Foot Assembly, Leveling (Replaces: W10732708) |
|
$ 12.50 | |||||
| 23 | WPW10339879 | Tie, Cable (Replaces: W10339879) |
|
$ 8.30 | |||||
| 24 | W11042299 | Harness Cover, Rear Inlet |
|
- | |||||
| 25 | W10676061 | Cover, Harness |
|
$ 36.77 | |||||
| 26 | W11281268 | Hose, Outer Drain Assembly (Replaces: W11234073) |
|
Immediately | $ 22.14 | ||||
| 27 | WPW10280024 | U-bend, Drain Hose (Replaces: W10280024) |
|
$ 83.51 |
