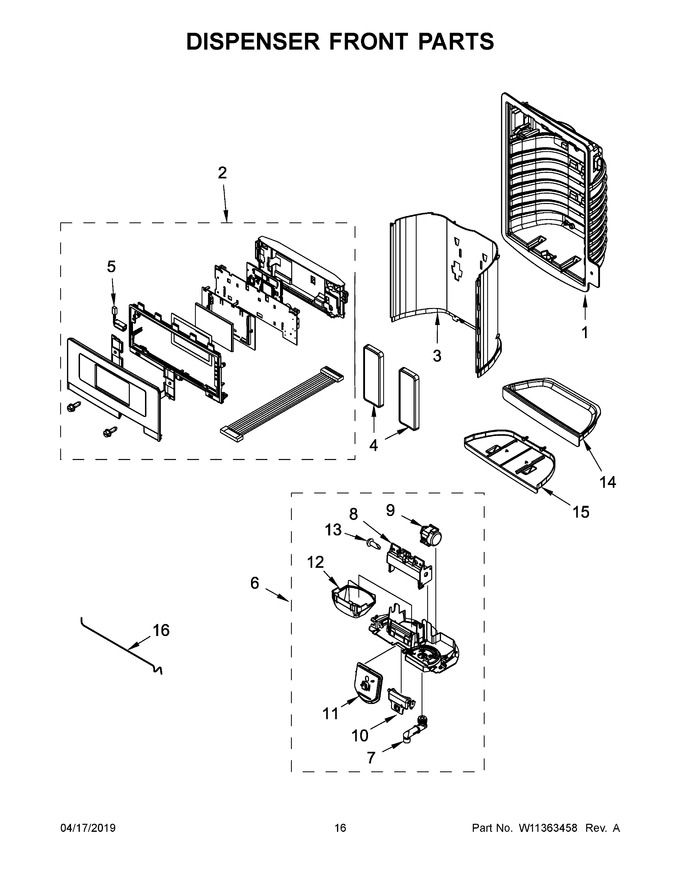

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	W11284720		Assembly, User Interface (includes Light Feature) (for Black & White Models)   (Replaces: W11114471)				$ 366.66
3	W11045975		Wall, Dispenser False (white)		Appelez-nous	-
4	W10353846		Assembly, Pad (white)				$ 280.01
5	W11290115		Assembly, Led   (Replaces: W10238083)				$ 84.45
6	WPW10353552		Assembly, Separator (includes Spigot And Ice Guide)   (Replaces: W10353552)				$ 166.29
7	W11227371		Assembly, Spigot Body   (Replaces: 2316647)				$ 136.38
8	W10174827		Bracket, Ice Door				$ 76.42
9	WPW10205979		Motor, Ice Door   (Replaces: W10205979)			Immediately	$ 107.60
10	WPW10346124		Support, Ice Door   (Replaces: W10346124)				$ 41.85
11	WPW10317279		Door, Ice   (Replaces: W10317279)				$ 20.52
12	WPW10435760		Guide, Ice   (Replaces: W10339578)				$ 23.94
13	W10174818		Clip, Motor Coupling		Appelez-nous	-
14	W11045970		Tray, Dispenser (white)				$ 65.93
15	W10267860		Tray, Dispenser Slide (white)		Appelez-nous	-
16	WPW10511930		Waterline, Door   (Replaces: W10511930)				$ 121.94
14A	W11045971		Tray, Dispenser (black)				$ 65.90
15A	W10267861		Tray, Dispenser Slide (black)				$ 74.39
3A	W11045976		Wall, Dispenser False (black)				$ 43.18
4A	W11661207		Assembly, Pad (black)   (Replaces: W10353847)				$ 66.19
