Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WPW10031790 Screw   (Replaces: W10031790) In-Stock Immediately $ 8.74

2 WP9761344 Liner, Door   (Replaces: 9761344) In-Stock Immediately $ 372.89

3 WPW10278991 Insulation, Door Strip   (Replaces: W10278991) In-Stock Immediately $ 101.37

4 W10831019 Screw   (Replaces: W10480830) In-Stock Immediately $ 8.27

5 WPW10440013 Hinge, Door (active)   (Replaces: W10388635) In-Stock Immediately $ 63.80

6 WPW10200660 Screw   (Replaces: W10200660) In-Stock Immediately $ 8.24

7 W11178521 Nameplate   (Replaces: W10884775) In-Stock Immediately $ 63.13

8 WP8053948 Glass, Inner   (Replaces: 9758162) Special Order $ 178.28

9 W11159497 Handle, Oven Door (includes Standoff) (black Stainless)   (Replaces: W11039071) Special Order $ 238.85

10 W11539580 Retainer, Insulation   (Replaces: 9761357) Special Order $ 233.31

11 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 8.26

12 WPW10440013 Hinge, Door (active)   (Replaces: W10440013) In-Stock Immediately $ 63.80

13 WPW10310922 Trim, Oven Door Vent (black)   (Replaces: W10310922) In-Stock Immediately $ 175.37

14 W11502236 Strap, Door   (Replaces: W10544179) In-Stock Immediately $ 27.68

15 W10761018 Trim, Door (black (left))   (Replaces: W10746436) In-Stock Immediately $ 53.77

16 WPW10316950 Frame, Glass   (Replaces: W10316950) In-Stock Immediately $ 90.09

17 W11247684 Glass Assembly, Outer Door (black Stainless)   (Replaces: W11169660) In-Stock Immediately $ 469.16

18 WP355214 Screw   (Replaces: W10327235) In-Stock Immediately $ 8.80

15A W10761014 Trim, Door (black (right)   (Replaces: W10746435) In-Stock Immediately $ 72.96


    View Diagram in Separate Window     Print Icon   Print Part List

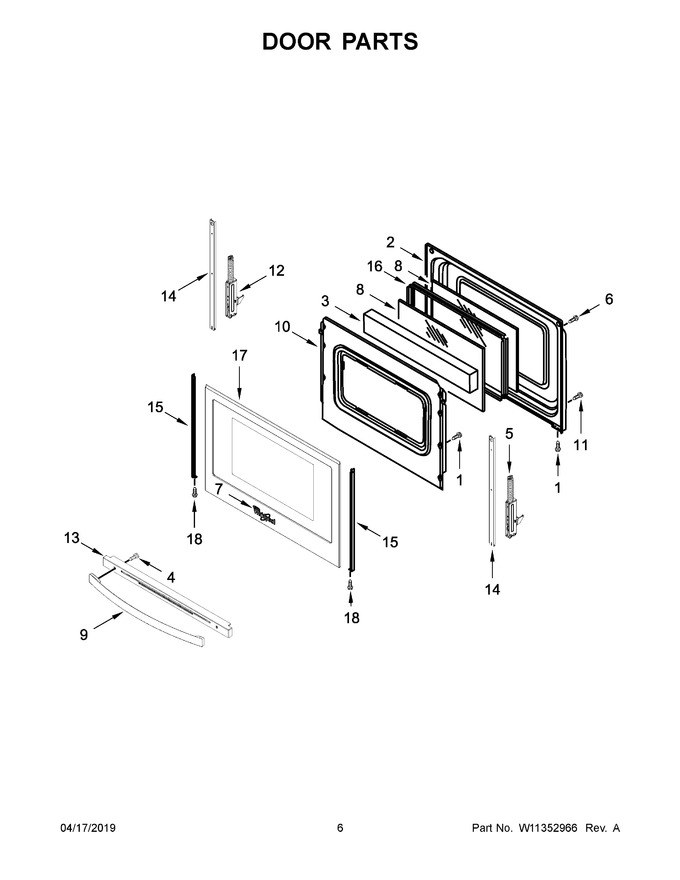

Diagram for YWEE510S0FV2
