SELECT A DIAGRAM

01 - Cover Sheet


02 - Cabinet/drum


03 - Front Panel/lint Filter


04 - Controls


05 - Motor


06 - Wiring Diagram

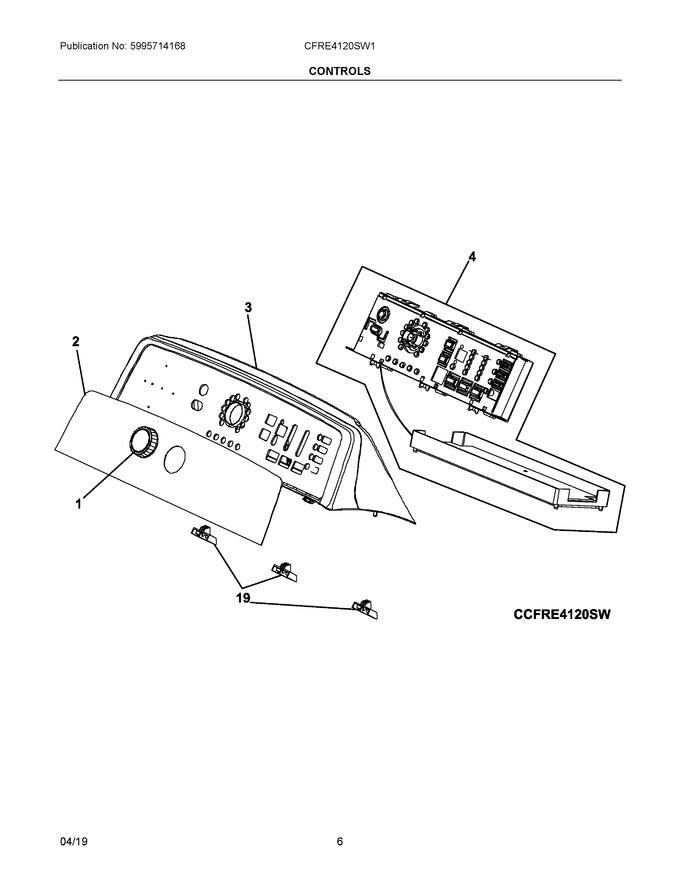

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304511364		Knob, Assembly				$ 43.67
2	4056015409		Overlay, Control Panel, White   (Replaces: 5304511419)		Appelez-nous	-
3	5304511420		Control Panel, Assembly, White		Appelez-nous	-
4	5304521563		Board Assembly, User Interface, W/main Board   (Replaces: 5304511421)			Immediately	$ 442.39
19	5304511422		Bracket, Control Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
