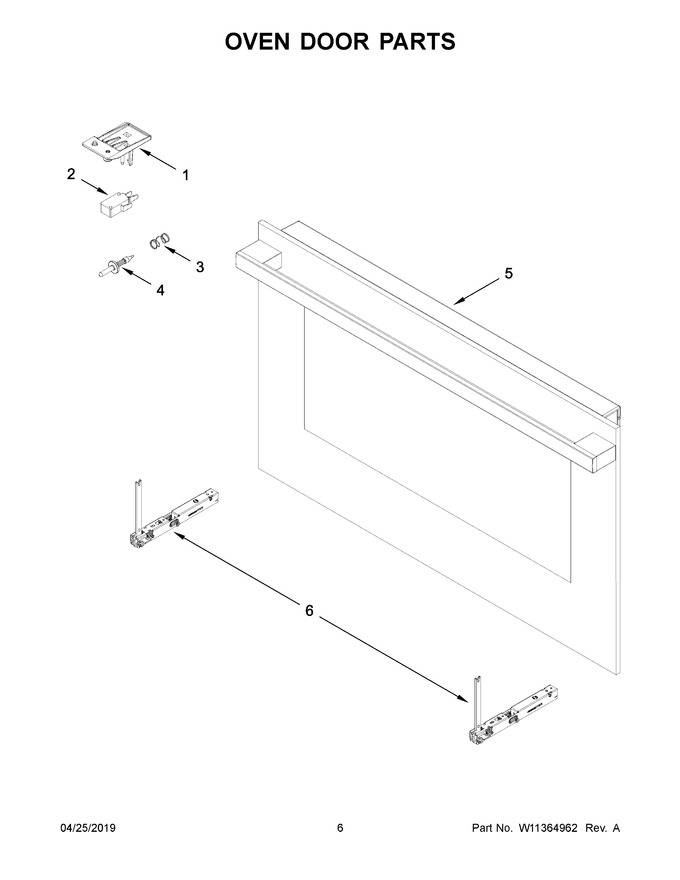

04 - Oven Door Parts
05 - Internal Oven Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11353328 | Bracket, Door Switch |
|
$ 96.88 | |||||
| 2 | W10587790 | Switch, Micro |
|
$ 32.67 | |||||
| 3 | W10586465 | Spring, Door Switch Actuator |
|
$ 22.80 | |||||
| 4 | W10586462 | Actuator, Door Switch |
|
$ 28.98 | |||||
| 5 | W11354845 | Door, Oven |
|
$ 1,018.58 | |||||
| 6 | W11354844 | Hinge, Door |
|
- |
