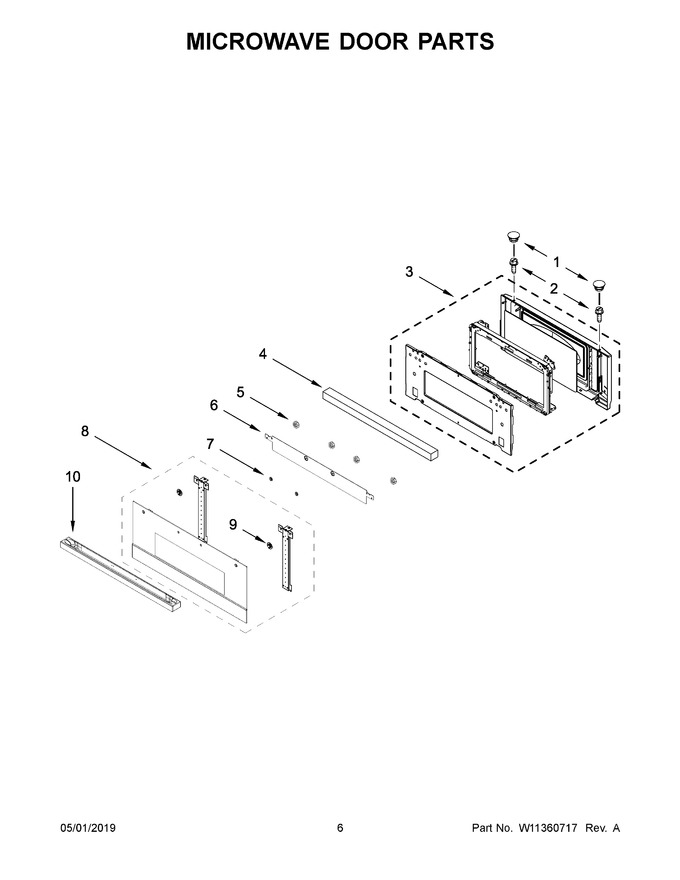

04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11756840		Cap, Screw   (Replaces: 8304588BL)				$ 12.34
2	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 14.72
3	W10737653		Assembly, Inner Door				$ 411.83
4	W10359769		Foam, Door Handle				$ 14.76
5	WP488130		Nut   (Replaces: 488130)				$ 7.32
6	W11316564		Bracket, Mwo Balancing		Appelez-nous	-
7	W11132942		Spacer, Handle				$ 16.83
8	W11364884		Assembly, Outer Door (stainless)   (Replaces: W11199655)		Appelez-nous	-
9	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 14.81
10	W11411895		Assembly, Door Handle (stainless)   (Replaces: W11250936)				$ 1,095.35
