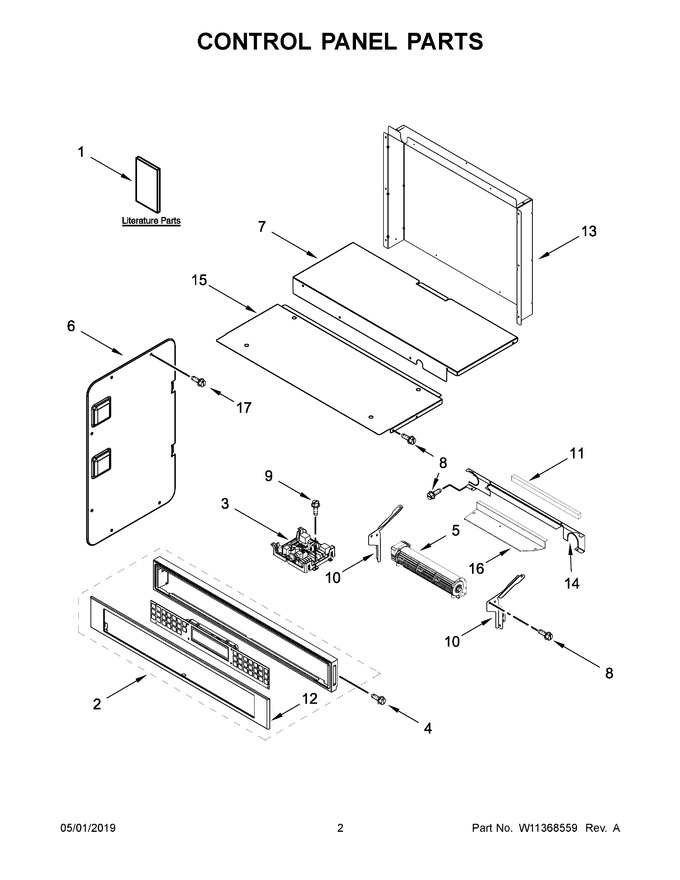

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10725683		Instructions, Installation		Appelez-nous	-
2	W11093255		Assembly, Control Panel (includes Overlay) (black)   (Replaces: W10890569)			Immediately	$ 998.07
3	W11179310		Control (with Power Supply)   (Replaces: W11040195)			Immediately	$ 456.49
4	WPY706189		Screw   (Replaces: W11249635)			Immediately	$ 7.19
5	W11713858		Blower, Dual Speed   (Replaces: W11200130)			Immediately	$ 331.99
6	W10655467		Chassis, Combo Side				$ 79.07
7	W10588732		Chassis, Cover Top Back 30				$ 215.10
8	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.82
9	WP7101P434-60		Screw   (Replaces: 7101P434-60)				$ 6.95
10	W10655463		Bracket, Blower (left)		Appelez-nous	-
11	W10491987		Block, Foam   (Replaces: 4451758)			Immediately	$ 7.75
12	W10588744		Skin, Control Panel (black)				$ 246.63
13	W11037653		Cover, Combo Chassis Back Duct (with Hole)				$ 68.62
14	W10618126		Chassis, Back Divider		Appelez-nous	-
15	W10318158		Chassis, Cover Top Front 30		Appelez-nous	-
16	W10681157		Cover, Combo Blower		Appelez-nous	-
17	W10443110		Screw			Immediately	$ 14.52
10A	W10655462		Bracket, Blower (right)		Appelez-nous	-
12A	W10588746		Skin, Control Panel (white)		Appelez-nous	-
12B	W10588740		Skin, Control Panel (stainless)				$ 203.86
12C	W10776407		Skin, Control Panel (black Stainless)				$ 272.01
1A	W10643472		Guide, Use & Care (oven)		Appelez-nous	-
1B	W10643473		Guide, Use & Care (microwave Oven)		Appelez-nous	-
1C	W11041081		Sheet, Tech (english)		Appelez-nous	-
1D	W11041082		Sheet, Tech (french)		Appelez-nous	-
2A	W10916779		Assembly, Control Panel (includes Overlay) (white)   (Replaces: W10890566)				$ 602.20
2B	W11093254		Assembly, Control Panel (includes Overlay) (stainless)   (Replaces: W10890568)			Immediately	$ 963.27
2C	W10916778		Assembly, Control Panel (includes Overlay) (black Stainless)   (Replaces: W10890563)				$ 570.39
NI	4454949		Holder, Fuse				$ 90.70
NI	W11356968		Harness, Inverter				$ 145.95
NI	W11229448		Harness, Communication			Immediately	$ 224.18
NI	W11132989		Harness, Door Latch				$ 113.31
NI	W11157223		Harness, Signal		Appelez-nous	-
NI	W11157180		Harness, Main				$ 243.82
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10760039		Bag, Hardware   (Replaces: W10431303)				$ 11.59
NI	W11226264		Strap, Ground   (Replaces: W10392129)		Appelez-nous	-
NI	4448664		Clamp, Conduit				$ 20.39
NI	WPW10017410		Fuse, Time Delay   (Replaces: W10017410)			Immediately	$ 21.17
NI	WP3400015		Screw, Grounding   (Replaces: 3400015)				$ 7.19
