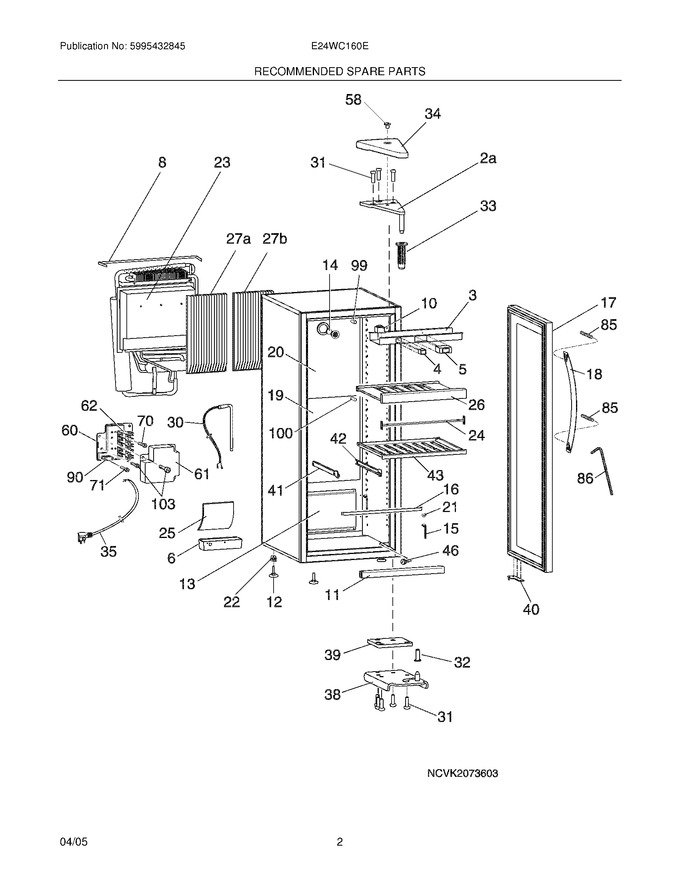

03 - Recommended Spare Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	295524111		Panel,control Console ,115 V		Appelez-nous	-
6	295536401		Drip Tray		Appelez-nous	-
8	295527301		Distance Bar,wall Spacer ,cabinet Rear		Appelez-nous	-
11	295527602		Support,floor		Appelez-nous	-
12	295522501		Leveling Leg,screw		Appelez-nous	-
14	295523101		Filter,ventilation ,charcoal				$ 109.62
15	295538502		Support,shelf ,with Bumper		Appelez-nous	-
16	295530902		Bar,detent ,metal ,heater Panel		Appelez-nous	-
17	295545801		Door,complete Assy ,glas ,stainless Steel		Appelez-nous	-
18	295545401		Handle,door		Appelez-nous	-
19	295538429		Panel,inside Back ,lower		Appelez-nous	-
20	295538428		Panel,inside Back ,upper		Appelez-nous	-
21	295537301		Bumper,shelf Support ,rubber		Appelez-nous	-
22	385805801		Nut,leveling Foot ,m10		Appelez-nous	-
24	295538701		Bar,reiforcement ,shelf Support		Appelez-nous	-
25	295536301		Sponge,drip Tray		Appelez-nous	-
26	295529502		Shelf,wood		Appelez-nous	-
31	385805201		Screw,mrt ,m5 X 20 ,black		Appelez-nous	-
32	295525501		Bushing,door Hinge ,lower		Appelez-nous	-
33	295525401		Bushing,door Hinge ,upper		Appelez-nous	-
34	295540001		Cover,hinge ,top		Appelez-nous	-
38	295531101		Hinge,door ,lower		Appelez-nous	-
39	295532601		Plate,hinge Spacer		Appelez-nous	-
40	295531301		Door Stop		Appelez-nous	-
41	295529102		Guide,shelf Support ,right Side				$ 217.25
41	295529101		Guide,shelf Support ,left Side		Appelez-nous	-
43	295529402		Shelf,sliding		Appelez-nous	-
46	295532401		Screw,slotted ,plastic Head ,black		Appelez-nous	-
58	385802301		Screw,lkcs ,m5 X 6		Appelez-nous	-
60	295539601		Terminal Box,bottom Plate		Appelez-nous	-
61	295539701		Terminal Box,cover		Appelez-nous	-
70	385800603		Screw,pt ,35 X 28		Appelez-nous	-
71	385800602		Screw,pt ,35 X 20		Appelez-nous	-
85	385807001		Screw,set ,m4 X 13 S6ss ,handle		Appelez-nous	-
86	295546801		Allen Wrench,handle Mounting ,2 Mm		Appelez-nous	-
90	293234201		Clamp,cable		Appelez-nous	-
99	295525902		Spacer,sleeve ,upr Back Panel		Appelez-nous	-
100	295525901		Spacer,sleeve ,lwr Back Panel		Appelez-nous	-
103	385802001		Screw,dk4.8 X 16p ,zinc Plated		Appelez-nous	-
2A	295522602		Hinge,door ,upper		Appelez-nous	-
F10	295524304		Transformer,115v/12v		Appelez-nous	-
F13	295523206		Panel,cover/temp Cont ,40 W ,127 V ,with Heater		Appelez-nous	-
F23	293470610		Cooling Unit,absorption ,w/thermal Fuse				$ 1,466.18
F27A	295535801		Evaporator,left Side		Appelez-nous	-
F27B	295535802		Evaporator,right Side		Appelez-nous	-
F30	17375423		Heater,defrost ,220 W ,115 V		Appelez-nous	-
F35	200269915		Power Cord,electric Svce		Appelez-nous	-
F4	295524401		Switch,toggle		Appelez-nous	-
F5	295544701		Control,temperature				$ 826.69
F62	295539801		Terminal Block		Appelez-nous	-
NI	825125200		Use & Care Guide,trilingual		Appelez-nous	-
