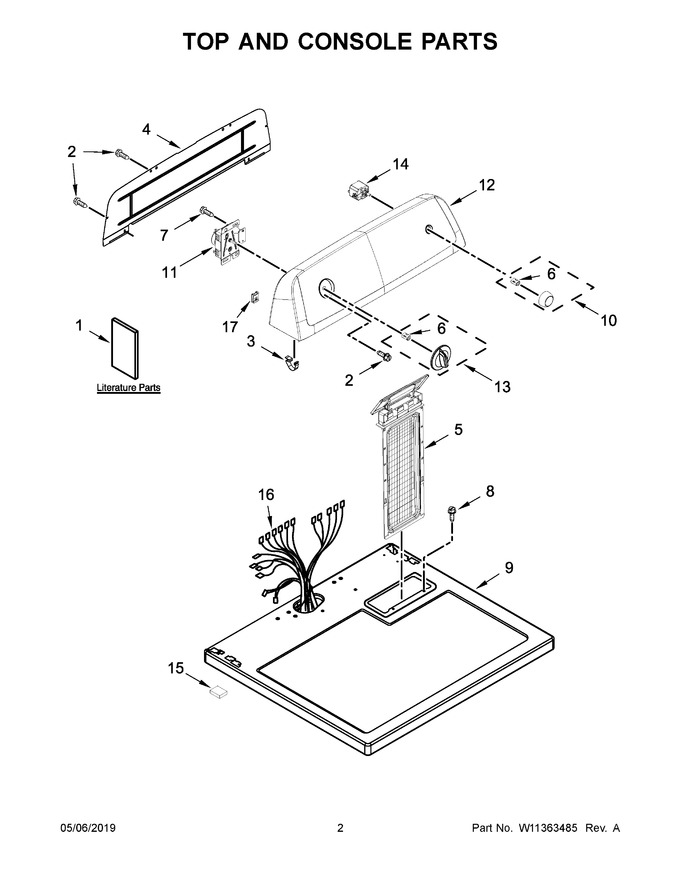

01 - Cover Sheet


02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10096991		Use And Care Guide		Appelez-nous	-
2	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.55
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.35
4	WPW10416486		Panel, Rear Console   (Replaces: W10416486)				$ 132.39
5	W11778253		Lint Screen (white)   (Replaces: W10717210)			Immediately	$ 54.63
6	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 8.20
7	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
8	W11693756		Screw   (Replaces: 688983)			Immediately	$ 14.76
9	WP8563663		Top (white)   (Replaces: 8559800)			Immediately	$ 349.25
10	WPW10453948		Knob, Push To Start (white)   (Replaces: W10453948)				$ 51.33
11	W10857612		Timer   (Replaces: W10745655)			Immediately	$ 175.61
12	W11307653		Console		Appelez-nous	-
13	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 8.33
14	WPW10420741		Switch, Push To Start   (Replaces: W10420741)			Immediately	$ 30.10
15	3389682		Spacer, Toe Panel				$ 9.23
16	WPW10450286		Harness, Wiring   (Replaces: W10450286)				$ 246.07
17	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
1A	W10514172		Installation Instructions		Appelez-nous	-
1B	W10185989		Wiring Diagram		Appelez-nous	-
