01 - Cover Sheet

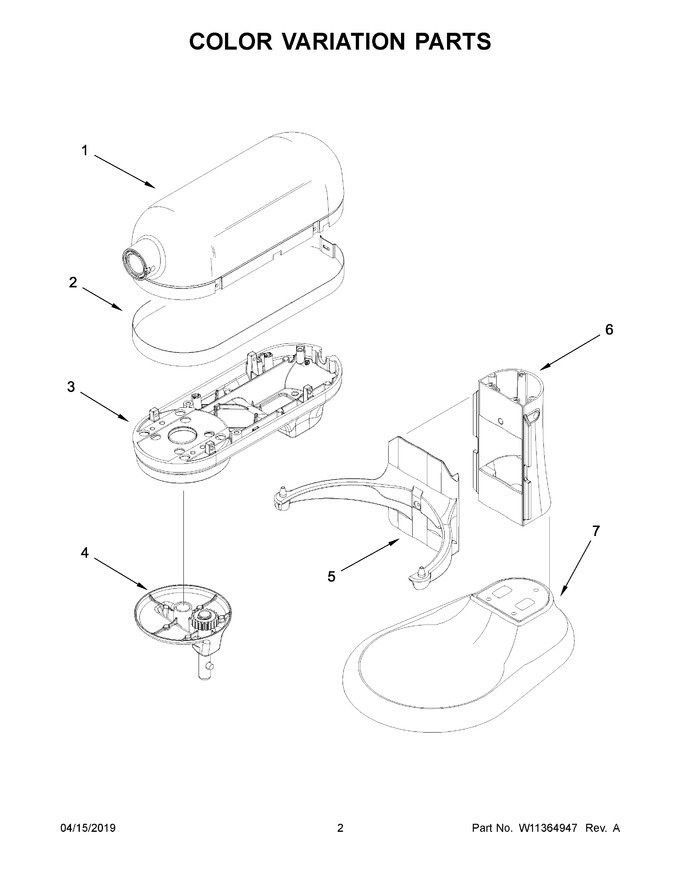

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10327951 | Motor Housing (contour Silver) |
|
$ 71.00 | |||||
| 2 | W10668069 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W10410013 | Lower Gearcase (contour Silver) |
|
- | |||||
| 4 | WPW10410016 | Planetary (contour Silver) (Replaces: W10410016) |
|
$ 66.76 | |||||
| 5 | W10327966 | Bowl Support And Pins (contour Silver) |
|
- | |||||
| 6 | W11316757 | Column And Pins (contour Silver) |
|
- | |||||
| 7 | W10328017 | Base & Foot Assembly (contour Silver) |
|
- | |||||
| 1A | W11316752 | Motor Housing (passion Red) |
|
- | |||||
| 3A | W11316747 | Lower Gearcase (passion Red) |
|
- | |||||
| 4A | W11316748 | Planetary (passion Red) |
|
- | |||||
| 5A | W11316742 | Bowl Support And Pins (passion Red) |
|
- | |||||
| 6A | W11316738 | Column And Pins (passion Red) |
|
- | |||||
| 7A | W11316735 | Base & Foot Assembly (passion Red) |
|
- |
