View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

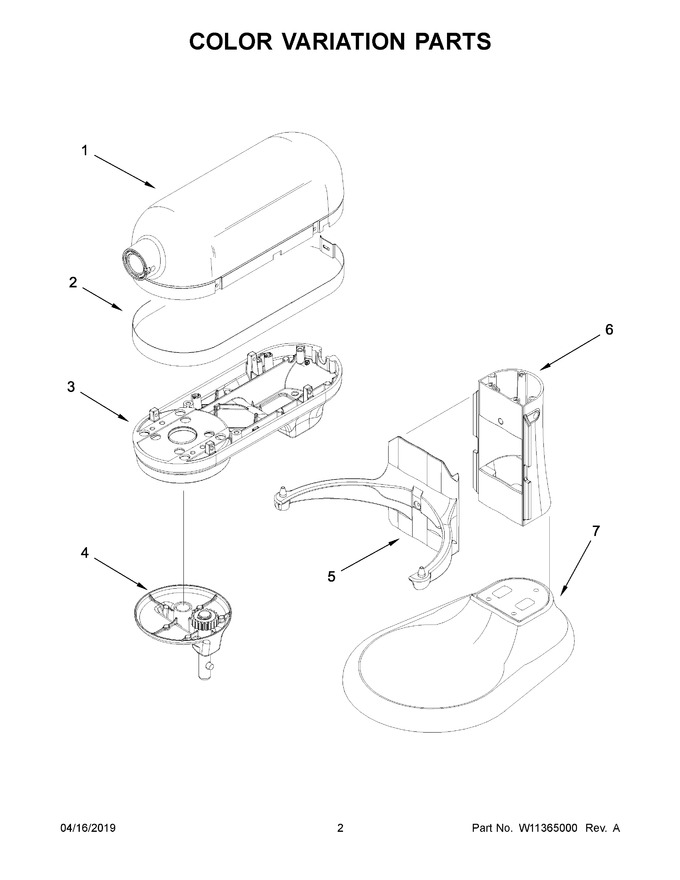

02 - Color Variation Parts
03 - Case, Gearing And Planetary Unit Parts
04 - Base And Pedestal Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11316752 | Motor Housing (passion Red) |
|
- | |||||
| 2 | W10668069 | Trim Band (dark Platinum) |
|
- | |||||
| 3 | W11316747 | Lower Gearcase (passion Red) |
|
- | |||||
| 4 | W11316748 | Planetary (passion Red) |
|
- | |||||
| 5 | W11316742 | Bowl Support And Pins (passion Red) |
|
- | |||||
| 6 | W11316738 | Column And Pins (passion Red) |
|
- | |||||
| 7 | W11316735 | Base & Foot Assembly (passion Red) |
|
- |
