SELECT A DIAGRAM

01 - Cover Sheet

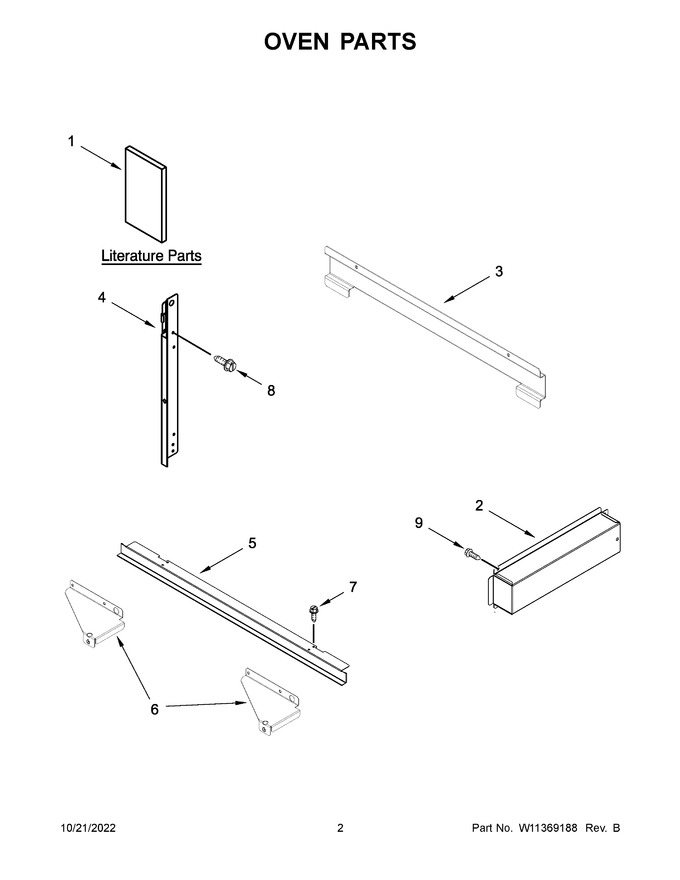

02 - Oven Parts


03 - Control Panel Parts


04 - Microwave Door Parts


05 - Cabinet And Stirrer Parts


06 - Internal Microwave Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11091153		Instructions, Installation		Appelez-nous	-
2	W10239155		Box, Conduit				$ 103.20
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 69.92
4	W11460675		Rail, Side (left)		Appelez-nous	-
5	W11359268		Trim, Bottom (stainless)				$ 126.74
6	W10239156		Bracket, Lower (left)				$ 21.24
7	WP3400832		Screw (black)   (Replaces: 3400832)			Immediately	$ 8.18
8	7101P65360		Screw		Appelez-nous	-
9	7101P42660		Screw		Appelez-nous	-
1A	W10643473		Guide, Use & Care (microwave Oven)		Appelez-nous	-
1B	W10756613		Sheet, Tech		Appelez-nous	-
4A	W11460672		Rail, Side (right)		Appelez-nous	-
6A	W10239157		Bracket, Lower (right)				$ 20.73
NI	W11325605		Jumper Harness, Communication   (Replaces: W11356987)				$ 191.19
NI	W11356977		Harness, Cable Tree Assembly				$ 85.07
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	NP		Following Parts Not Illustrated		Appelez-nous	-
NI	W11356992		Conduit				$ 223.29
NI	4450800		Screw, Grounding				$ 13.47
NI	W10760039		Bag, Hardware   (Replaces: W10513362)				$ 12.17
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
NI	W11356986		Harness, Communication			Immediately	$ 112.86
NI	W11356968		Harness, Inverter				$ 153.25
NI	W11449277		Harness, Interlock   (Replaces: W11356969)			Immediately	$ 156.02

    View Diagram in Separate Window       Print Part List
