View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Door
03 - Cabinet
04 - Shelves
05 - System
06 - Wiring Schematic
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

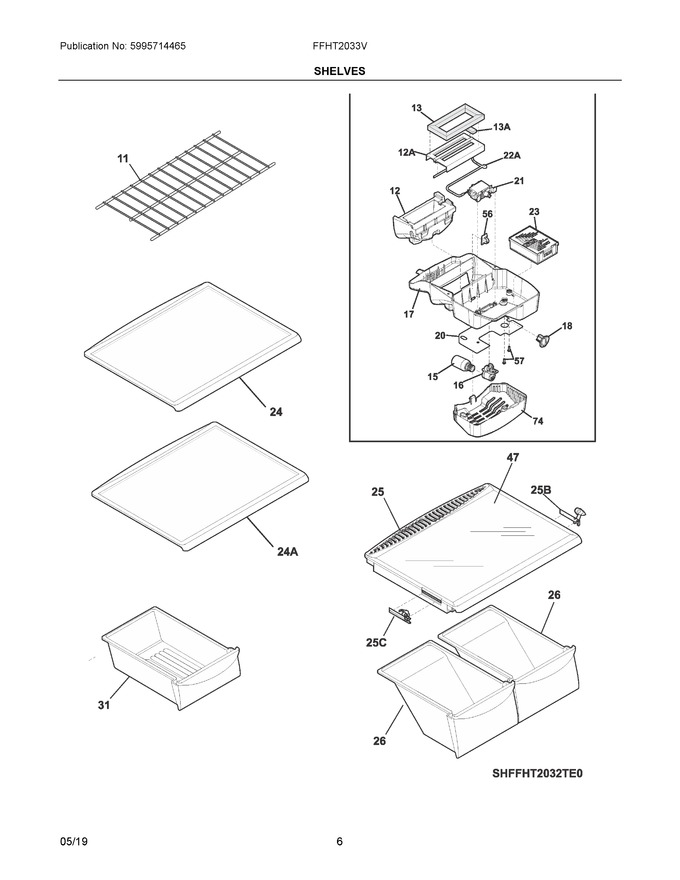

| 11 | 240358009 | Shelf, Freezer, Full-width, Wire |
|
$ 82.45 | |||||
| 12 | 5303918717 | Diffuser, Air, Control Box (Replaces: 5304498350) |
|
$ 38.77 | |||||
| 13 | 242240602 | Gasket, Air Diffuser |
|
Immediately | $ 12.41 | ||||
| 16 | 241559801 | Socket, Light (Replaces: 242081801) |
|
$ 80.75 | |||||
| 18 | 242217001 | Knob, Cold Control |
|
$ 251.11 | |||||
| 21 | 5304501856 | Board, User Interface, Potentiometer (Replaces: 242231601) |
|
Immediately | $ 852.18 | ||||
| 24 | 240358928 | Shelf-"spill-safe", Sliding (Replaces: 240358927) |
|
Immediately | $ 193.73 | ||||
| 25 | 240364790 | Cover-crisper Pan |
|
$ 135.66 | |||||
| 26 | 240343803 | Pan, Crisper, (2) |
|
Immediately | $ 191.01 | ||||
| 31 | 240530811 | Pan-meat, W/o Graphics, Clear (Replaces: 240530803) |
|
Immediately | $ 150.86 | ||||
| 47 | 240350609 | Insert-pan Cover, Glass |
|
$ 180.33 | |||||
| 56 | 218515401 | Clip-grille |
|
$ 19.69 | |||||
| 24A | 240358928 | Shelf-"spill-safe", Sliding, W/pan Hanger |
|
Immediately | $ 193.73 | ||||
| 25B | 241613501 | Control-humidity, Rh |
|
Immediately | $ 13.39 | ||||
| 25C | 241613502 | Control-humidity, Lh |
|
$ 53.09 | |||||
| NIA | 241705801 | Spacer-shelf |
|
$ 7.88 |
